Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System) And Wireless Door Lock Control (W/Smart Key System)

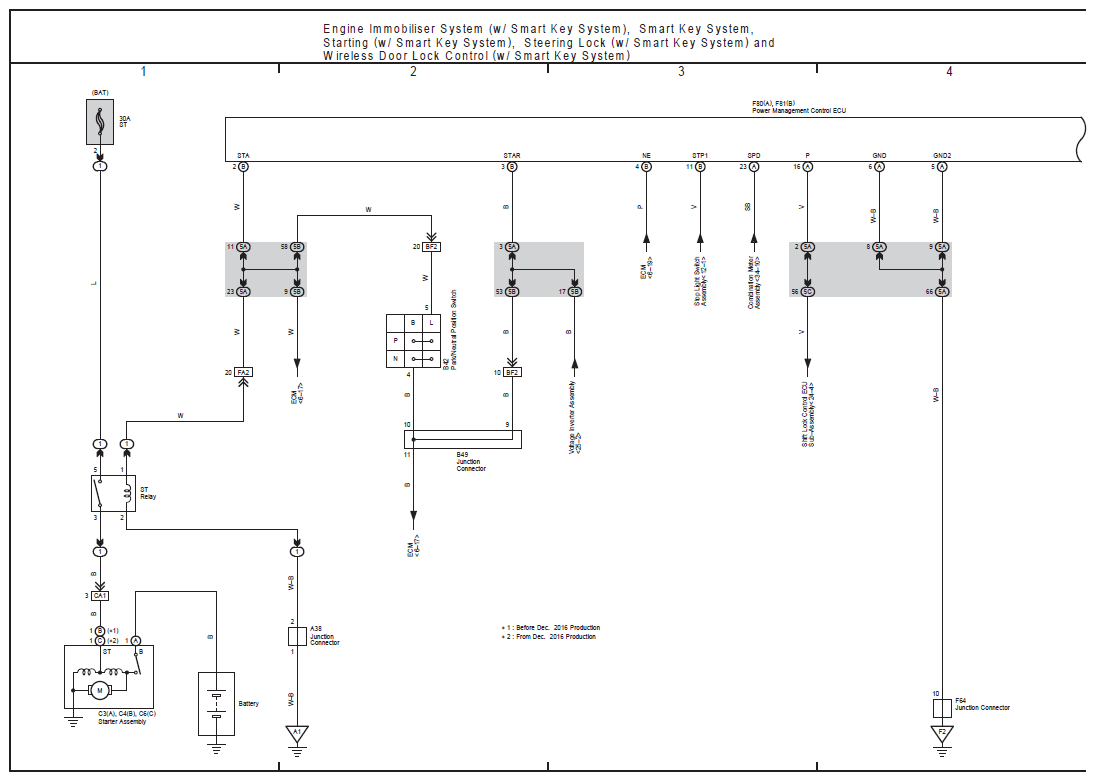

G12197644

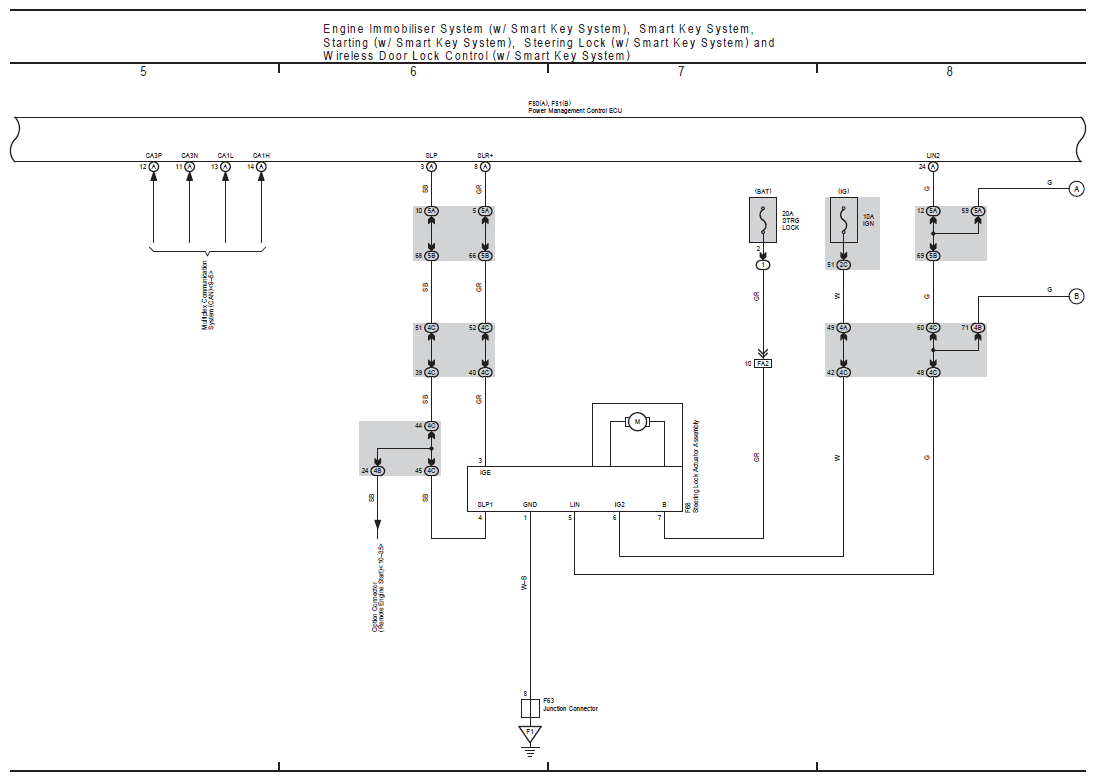

G12197645

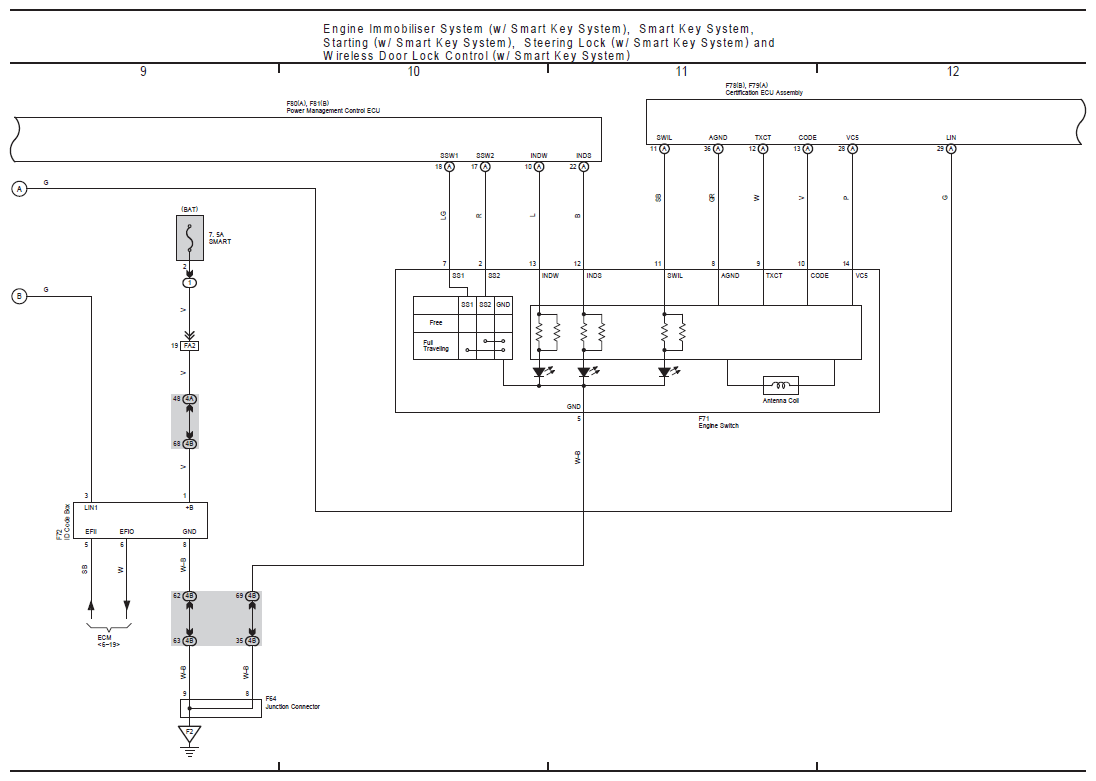

G12197646

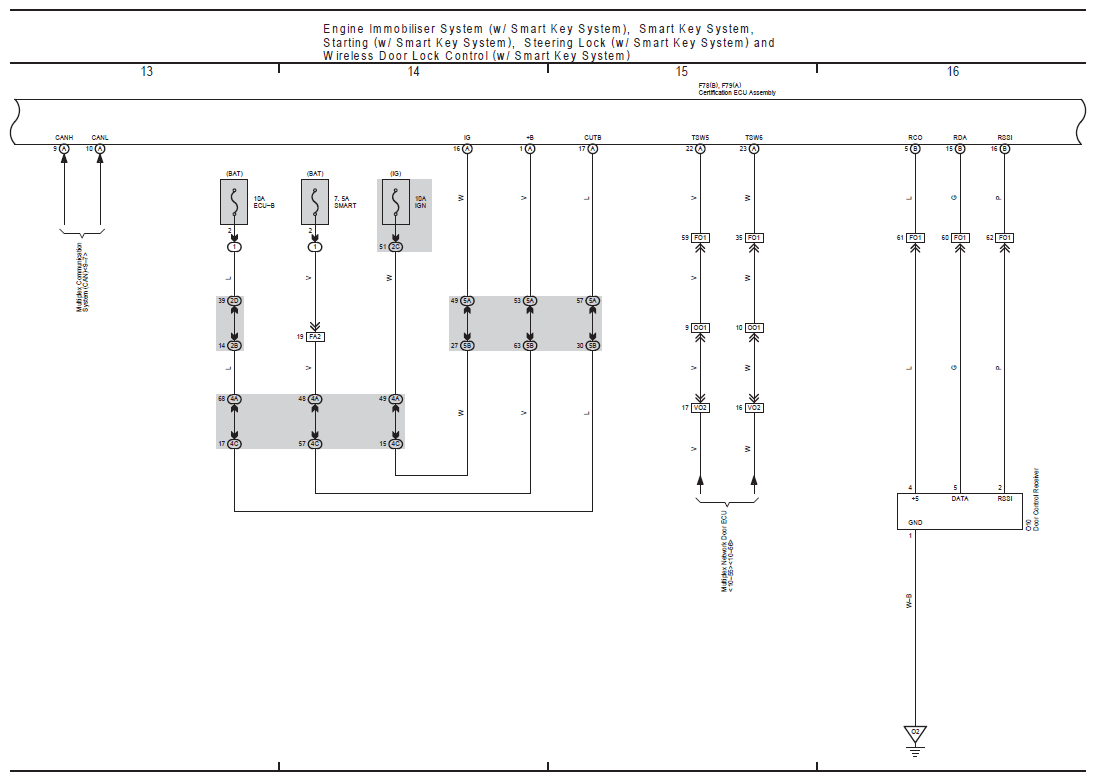

G12197647

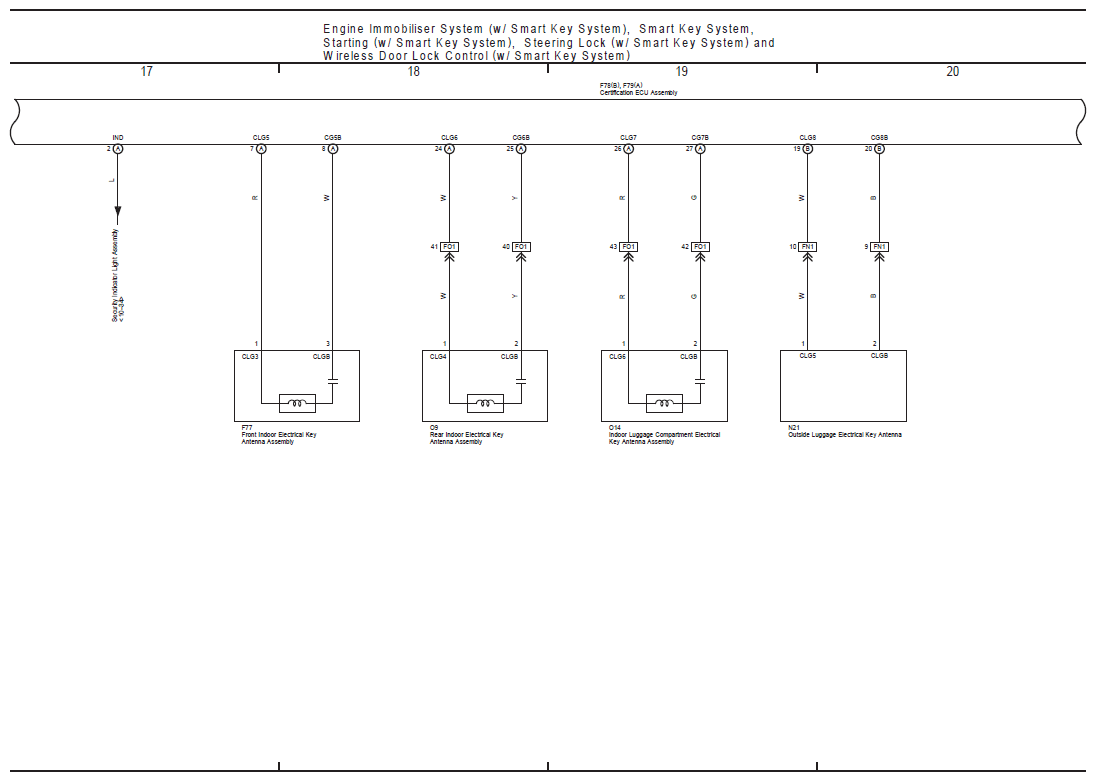

G12197648

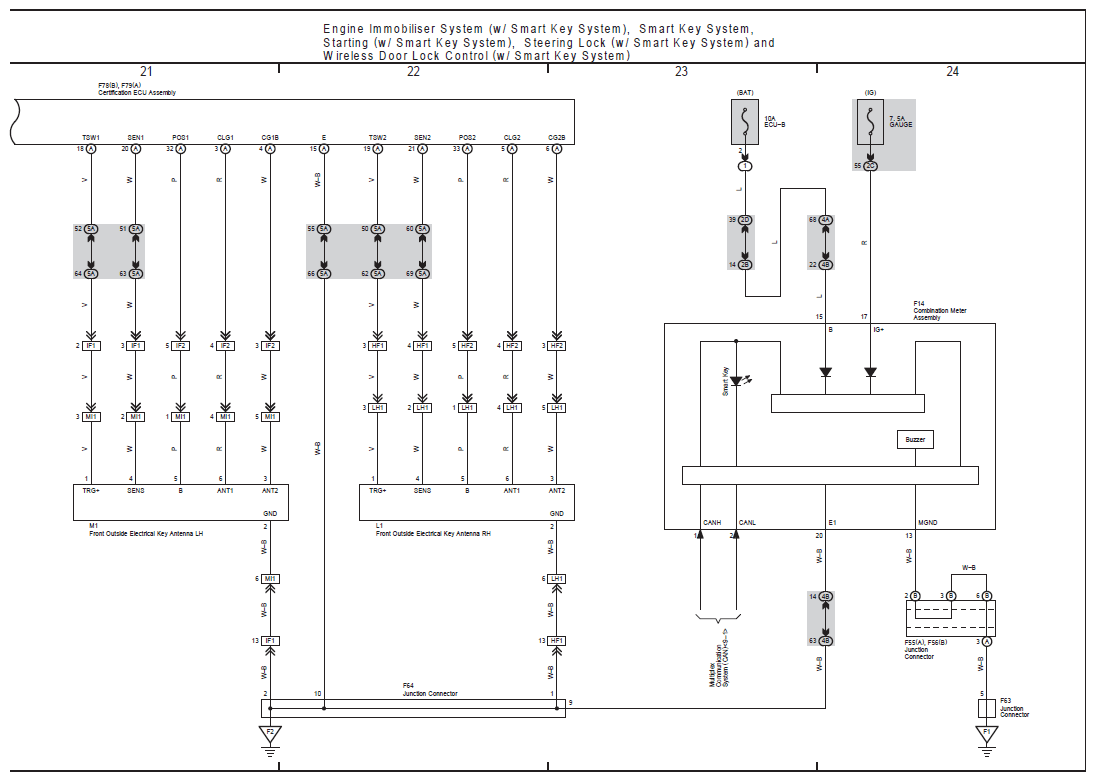

G12197649
