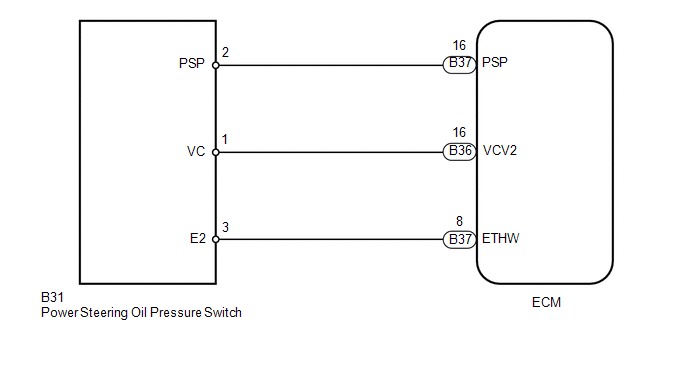

DTC P0550: Power Steering Pressure Sensor Circuit Malfunction; DTC P0552: Power Steering Pressure Sensor Circuit Low Input; DTC P0553: Power Steering Pressure Sensor Circuit High Input [08/2015 - 08/2019]: Wiring Diagram

GTY226612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
