Components [08/2015 - 08/2022]

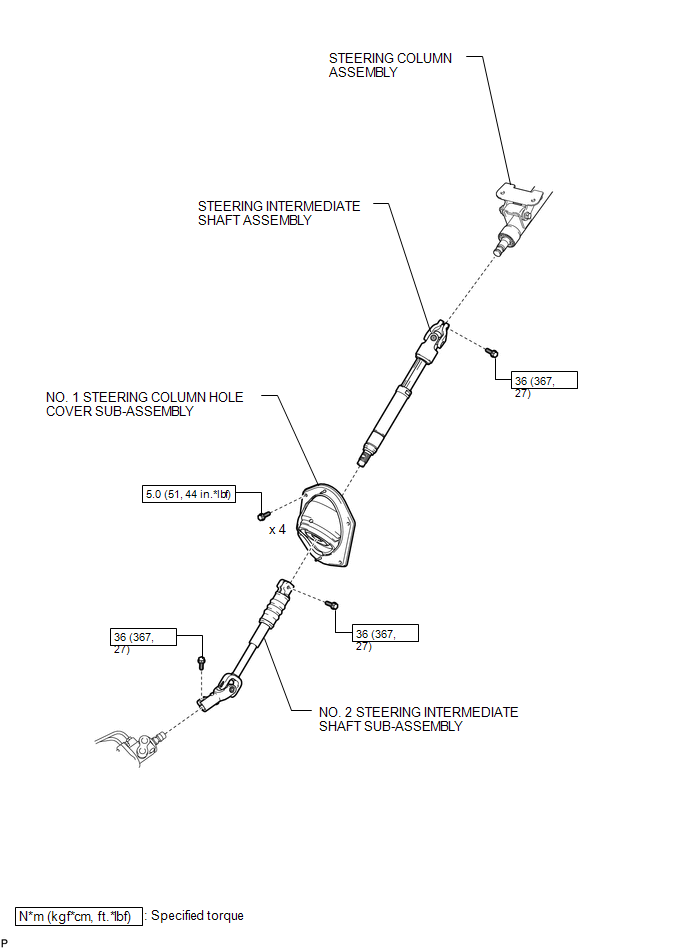

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 3) [08/2015 - 08/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

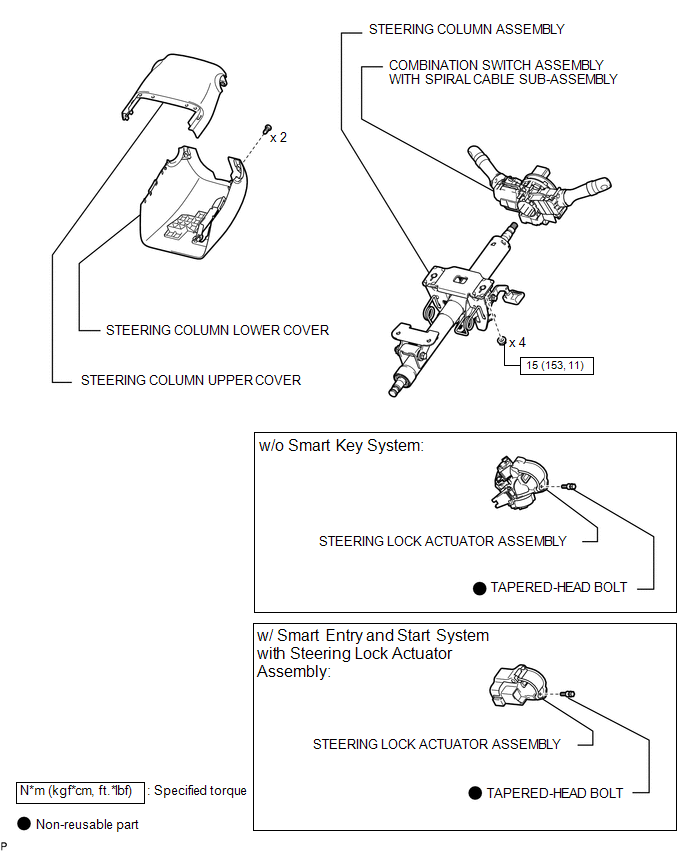

Fig 2: Steering Column Assembly Replacement Components With Torque Specifications (2 Of 3) [08/2015 - 08/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

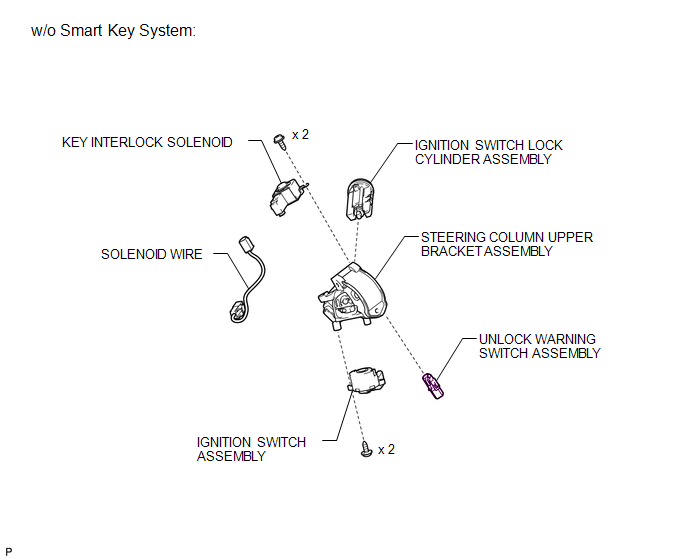

Fig 3: Steering Column Assembly Replacement Components (3 Of 3) [08/2015 - 08/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
