System Diagrams

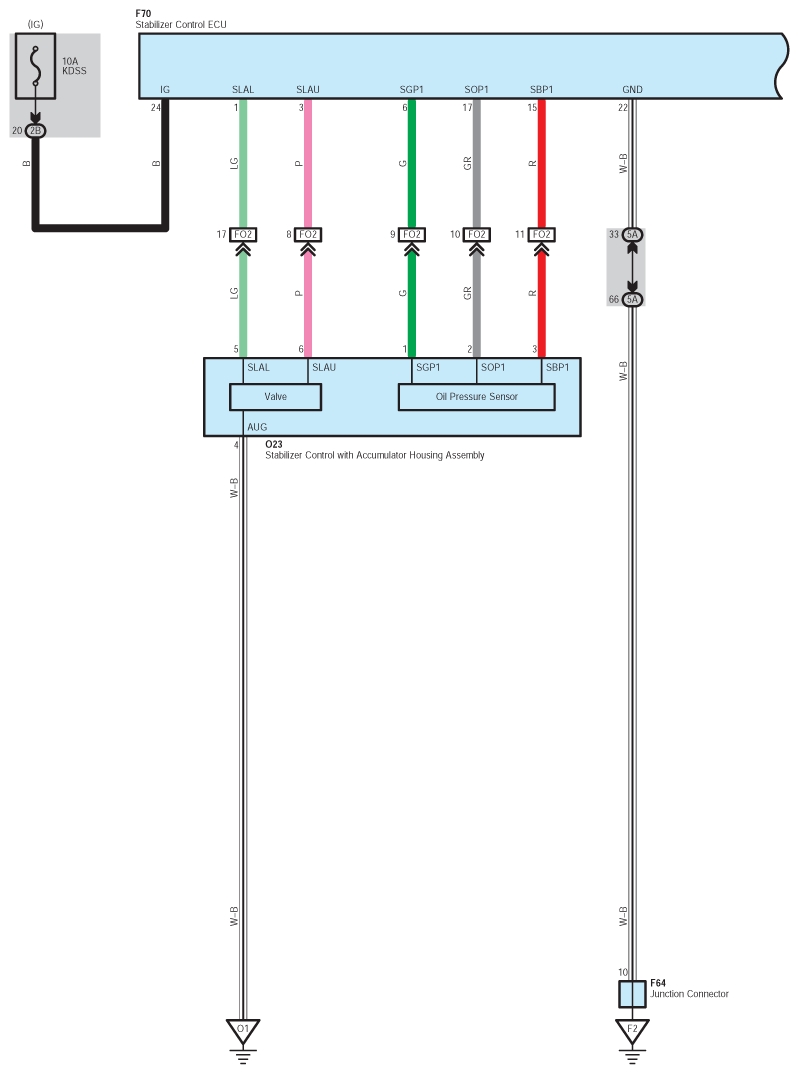

Fig 1: Kinetic Dynamic Suspension System (1 Of 5)
G12198482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

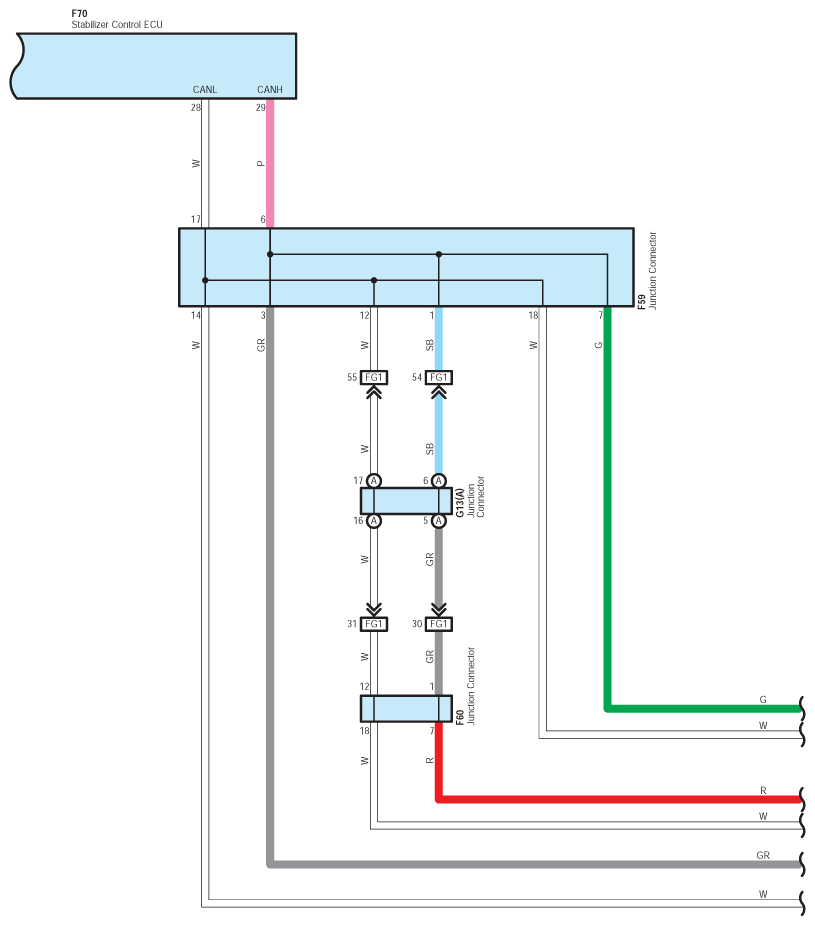

Fig 2: Kinetic Dynamic Suspension System (2 Of 5)
G12198483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

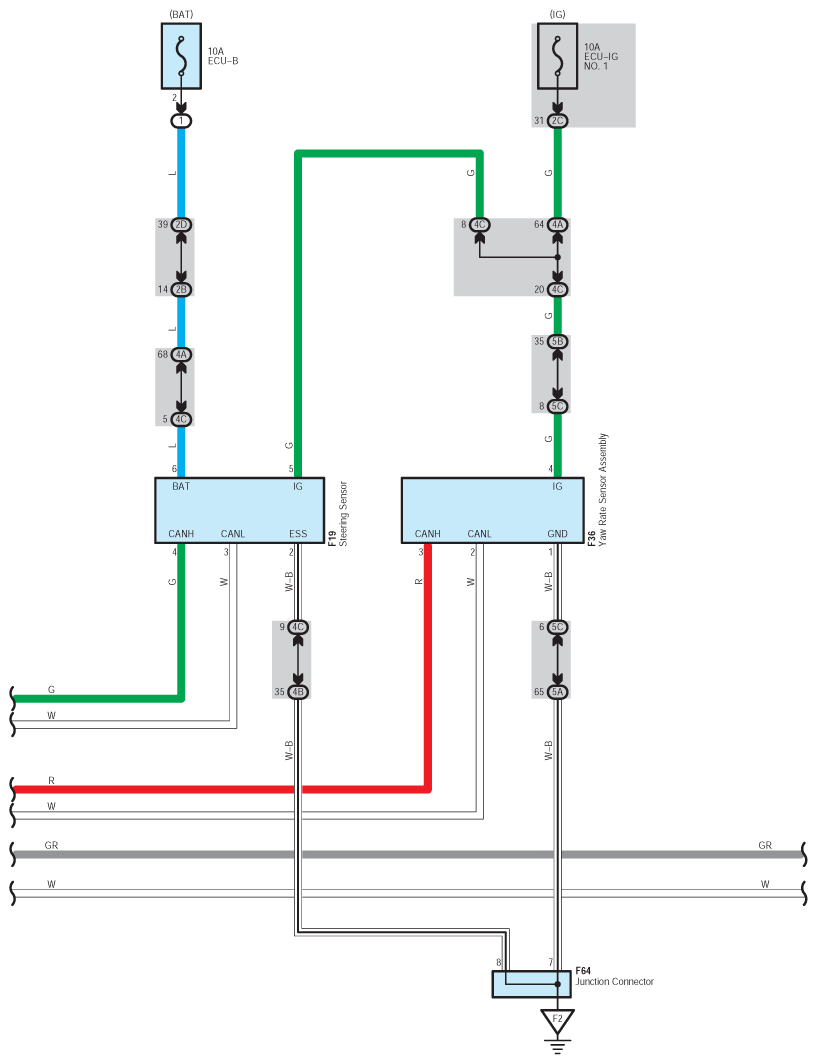

Fig 3: Kinetic Dynamic Suspension System (3 Of 5)
G12198484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

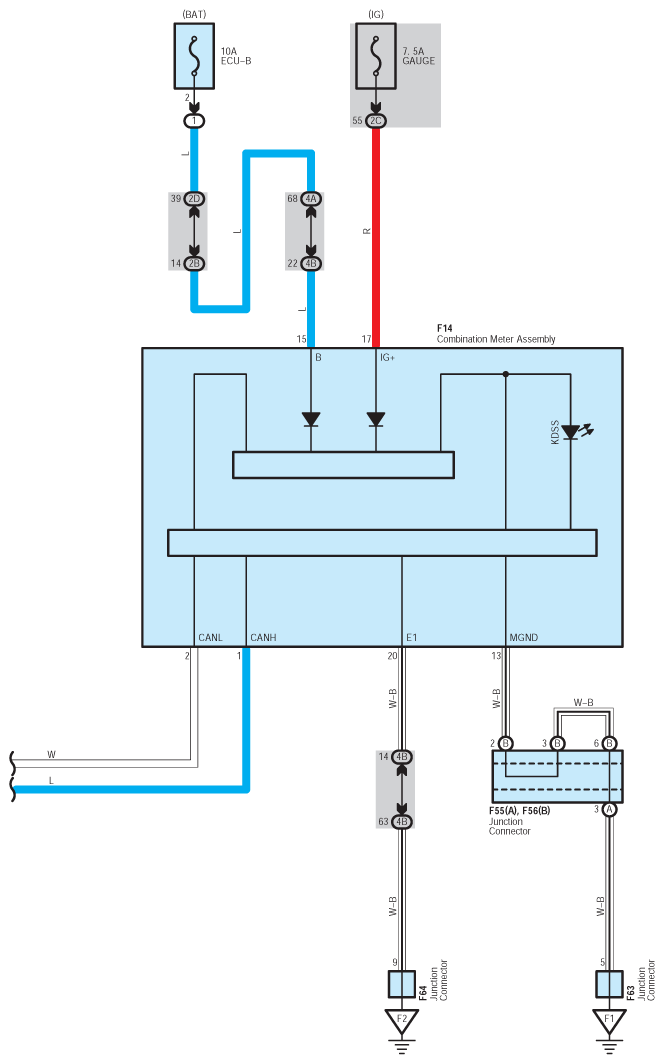

Fig 4: Kinetic Dynamic Suspension System (4 Of 5)
G12198485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

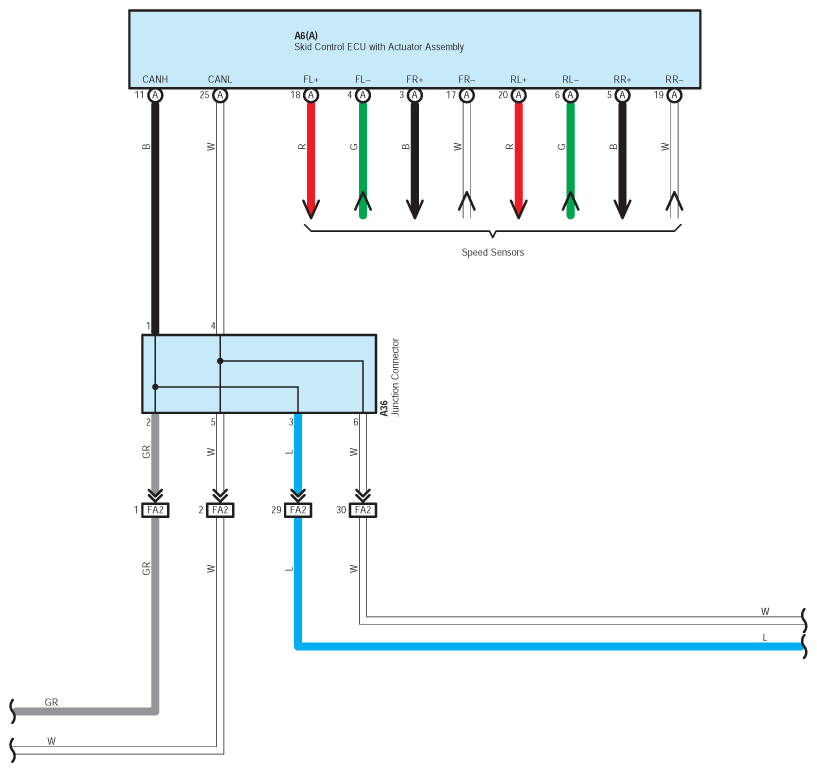

Fig 5: Kinetic Dynamic Suspension System (5 Of 5)
G12198486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
