Removal [08/2015 - ]: Procedure
- REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY
NOTE:
- Avoid physical shocks to the accelerator pedal sensor assembly.
- Do not disassemble the accelerator pedal sensor assembly.
- This accelerator pedal does not require lubrication. Do not apply oil or other lubrication to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.

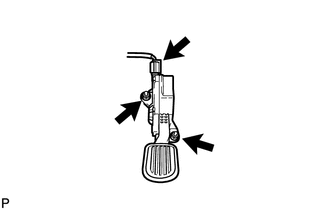

- Disconnect the accelerator pedal position sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 2 nuts and accelerator pedal sensor.
