Removal [08/2015 - ]: Procedure

REMOVE V-BANK COVER
Refer to PROCEDURE - Step 10
REMOVE NO. 1 AIR CLEANER HOSE
Refer to PROCEDURE - Step 11

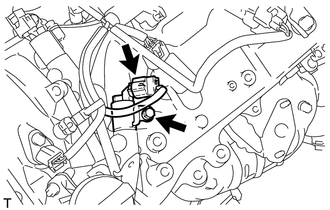

REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 1)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the oil control valve connector.
2. Remove the bolt and oil control valve.
3. Remove the O-ring from the oil control valve.

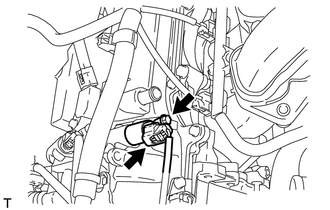

REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 1)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the oil control valve connector.
2. Remove the bolt and oil control valve.
3. Remove the O-ring from the oil control valve.

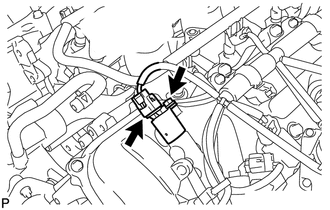

REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the oil control valve connector.
2. Remove the bolt and oil control valve.
3. Remove the O-ring from the oil control valve.

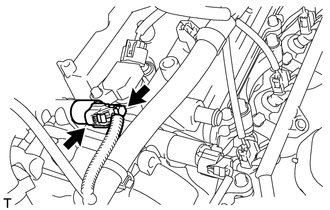

REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the oil control valve connector.
2. Remove the bolt and oil control valve.
3. Remove the O-ring from the oil control valve.
