DTC P2118: Throttle Actuator Control Motor Current Range / Performance [08/2015 - 08/2019]: Description

The ETCS (Electronic Throttle Control System) has a dedicated power supply circuit. The voltage (+BM) is monitored and when it is low (below 4 V), the ECM determines that there is a malfunction in the ETCS and cuts off the current to the throttle actuator.

When the voltage becomes unstable, the ETCS itself becomes unstable. For this reason, when the voltage is low, the current to the throttle actuator is cut. If repairs are made and the system returns to normal, the ECM then allows the current to flow to the throttle actuator so that it can be restarted after the ignition switch is turned off.

HINT:

This ETCS does not use a throttle cable.

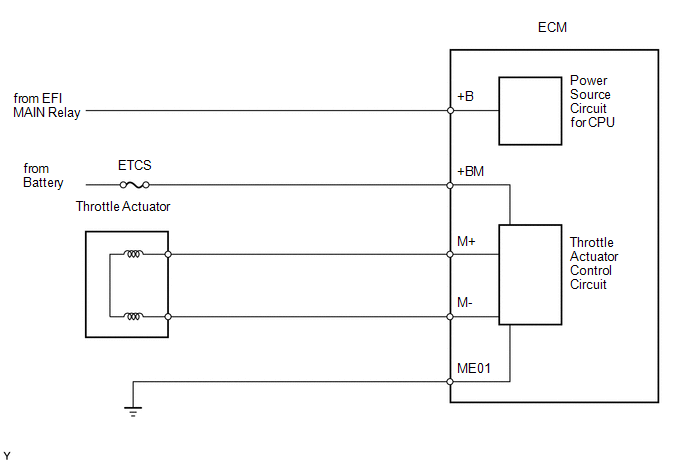

Fig 1: Throttle Actuator Control Circuit Diagram

DTC No.	DTC Detection Condition	Trouble Area
P2118	Open in the ETCS power source (+BM) circuit (1 trip detection logic).	Open in ETCS power source circuit Battery Battery terminals ETCS fuse ECM
