Reassembly [08/2015 - 08/2022]: Procedure

1. Install the key interlock solenoid wire on to the install the ignition switch.

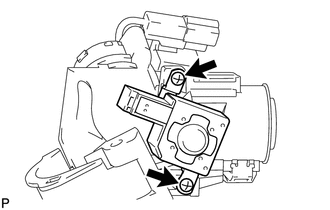

1. Install the ignition switch onto the steering column upper bracket with the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

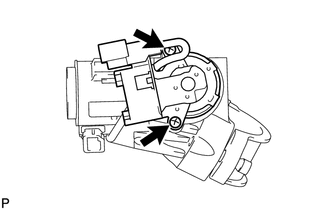

1. Install the key interlock solenoid onto the steering column upper bracket with the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Connect the connector.

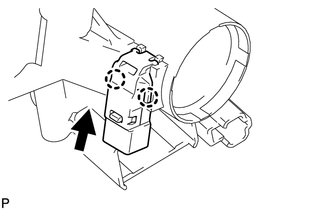

1. Attach the 2 claws to install the unlock warning switch onto the steering column upper bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Slide the unlock warning switch in the direction shown by the arrow in the illustration to install it.

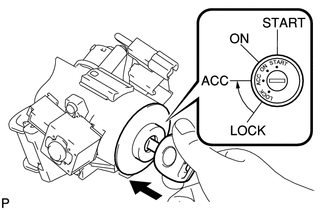

1. Turn the ignition switch to ON (ACC).
2. Install the ignition switch lock cylinder into the steering column upper bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Make sure that the ignition switch lock cylinder is securely fixed onto the ignition switch lock cylinder.

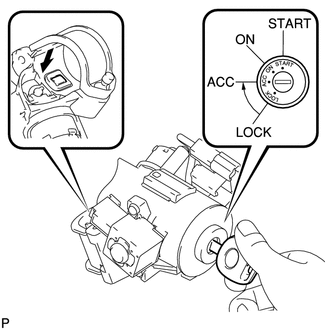

1. Remove the key and check that the steering lock function is activated.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

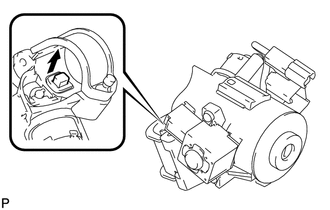

2. Insert the key, turn the ignition switch ON (ACC) and check that the steering lock function is deactivated.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When replacing the steering lock actuator assembly (w/ smart key system), perform key registration (Refer to REGISTRATION [08/2015 - 08/2019] , or refer to REGISTRATION [08/2019 - 08/2021] , or refer to REGISTRATION [08/2021 - 08/2022] ).

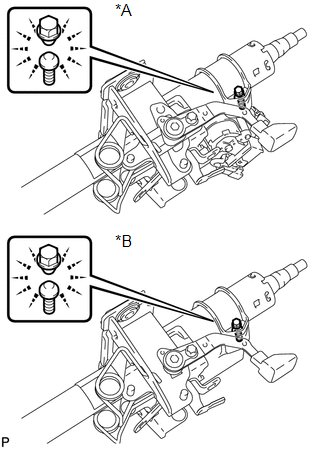

1. Temporarily install the steering lock actuator assembly with a new tapered-head bolt.
2. Tighten the tapered-head bolt until the bolt head breaks off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A	w/o Smart Key System
   *B	w/ Smart Key System
