DTC B27A2: Open in Front Passenger Side Electrical Antenna Circuit [03/2017 - ]: Procedure

  1. CHECK CONNECTOR CONNECTION CONDITION
    1. Turn the engine switch off.
    2. Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and the front door outside handle assembly RH.

      OK

      Connectors are properly connected.

    Result:

    NG

    CONNECT CONNECTORS PROPERLY

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))
    1. Disconnect the D41 and D48 certification ECU (smart key ECU assembly) connectors.
    2. Disconnect the F5 front door outside handle assembly RH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D41-11 (CLG2) - F5-6 (ANT1) Always Below 1 Ω
      D41-10 (CG2B) - F5-3 (ANT2) Always Below 1 Ω
      D48-11 (GND) - Body ground Always Below 1 Ω
      D41-11 (CLG2) or F5-6 (ANT1) - Body ground Always 10 kΩ or higher
      D41-10 (CG2B) or F5-3 (ANT2) - Body ground Always 10 kΩ or higher

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. INSPECT CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO FRONT PASSENGER SIDE ELECTRICAL KEY ANTENNA)

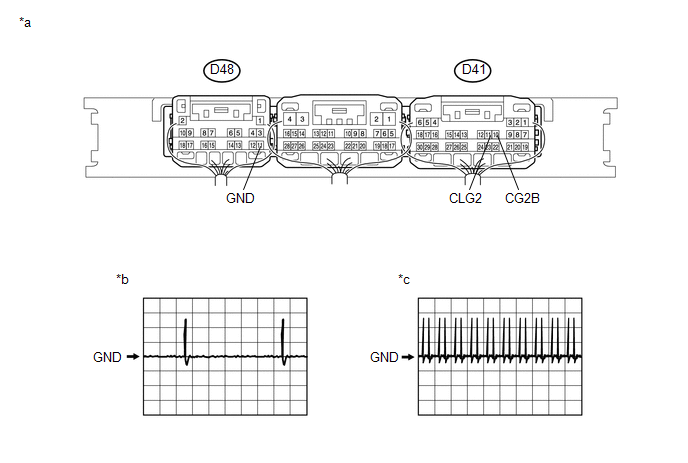

    GTY688241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component with harness connected
    (Certification ECU (smart key ECU assembly))
    *b Waveform 1
    *c Waveform 2 - -
    1. Reconnect the D41 and D48 certification ECU (smart key ECU assembly) connector.
    2. Reconnect the F5 front door outside handle assembly RH connector.
    3. Using an oscilloscope, check the waveform.

      HINT:

      Check that the entry cancel function, which is one of the customizing settings of the smart key system, is not set (Refer to CUSTOMIZE PARAMETERS [03/2017 - ] ).

      OK

      Tester Connection Switch Condition Tool Setting Specified Condition
      D41-11 (CLG2) - D48-11 (GND) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter not inside vehicle
      5. Electrical key transmitter brought inside detection area*1
      6. All doors locked through wireless operation
      2 V/DIV., 500 ms/DIV. Pulse generation
      (See waveform 1)
      D41-11 (CLG2) - D48-11 (GND) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter not inside vehicle
      5. Electrical key transmitter brought outside detection area*2
      6. All doors locked through wireless operation
      2 V/DIV., 500 ms/DIV. Pulse generation
      (See waveform 1)
      D41-10 (CG2B) - D48-11 (GND) Procedure:
      1. Engine switch off
      2. Electrical key transmitter brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. All doors locked with electrical key transmitter sub-assembly
      2 V/DIV., 500 ms/DIV. Pulse generation
      (See waveform 2)

    Result:

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [03/2017 - ]

    Result:

    OK

    See step  4

  4. REPLACE FRONT DOOR HANDLE ASSEMBLY OUTSIDE RH
    1. Temporarily replace the front door outside handle assembly RH with a new or normally functioning one (Refer to DISASSEMBLY [03/2017 - 12/2017] Refer to DISASSEMBLY [12/2017 - ] ).

    Result:

    NEXT

    See step  5

  5. CHECK DTC OUTPUT
    1. Clear the DTCs (Refer to DTC CHECK / CLEAR [03/2017 - ] ).
    2. Recheck for DTCs (Refer to DTC CHECK / CLEAR [03/2017 - ] ).

      OK

      DTC B27A2 is not output.

    Result:

    OK

    END (FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH WAS DEFECTIVE)

    Result:

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [03/2017 - ]
