Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment [03/2017 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Key / Data List.
5. Read the Data List according to the display on the Techstream.
   SMART KEY



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Trunk Open Mode	Back door opener switch assembly / ON or OFF	Customization status displayed	-

   Result

   Result	Proceed to
   Entry luggage compartment door open mode is ON	A
   Entry luggage compartment door open mode is OFF	B

Result:

B

PERFORM CUSTOMIZE SETTING (PROCEED TO CUSTOMIZE PARAMETERS). Refer to  CUSTOMIZE PARAMETERS [03/2017 - ]

Result:

A

See step  2

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Key / Data List.
5. Read the Data List according to the display on the Techstream.
   SMART KEY



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Tr/B-Door Unlock SW	Back door opener switch assembly / ON or OFF	ON: Back door opener switch assembly pushed OFF: Back door opener switch assembly not pushed	-

   OK

   On the Techstream screen, the display changes between ON and OFF according to the chart above.

Result:

NG

See step  8

Result:

OK

See step  3

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Active Test.
5. Read the Data List according to the display on the Techstream.
   MAIN BODY



   Tester Display	Test Part	Control Range	Diagnostic Note
   Trunk and Back-door Open	Operate luggage door closer assembly motor	ON/OFF	-

   OK

   Luggage door closer assembly motor operates.

Result:

NG

See step  10

Result:

OK

See step  4

1. Bring the electrical key transmitter sub-assembly near the electrical key antenna (outside luggage), and perform an entry luggage compartment open function check.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Electrical Key Transmitter Sub-assembly
   *a	Approximately 0.3 m (0.984 ft.)

   NOTE:

   If the electrical key transmitter sub-assembly is brought within 0.2 m (0.656 ft.) of the rear bumper, communication is not possible.

   HINT:

   • When pressing the luggage compartment door opener outer switch, hold the electrical key transmitter sub-assembly approximately 1 m (3.28 ft.) above the ground and approximately 0.3 m (0.984 ft.) away from the vehicle as shown in the illustration.
   • When the electrical key transmitter sub-assembly is brought near the electrical key antenna (outside luggage), the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

   OK

   Entry functions operate normally.

Result:

OK

AFFECTED BY WAVE INTERFERENCE

Result:

NG

See step  5

1. Check the following antennas in the key diagnostic mode (Refer to OPERATION CHECK [03/2017 - 12/2017] Refer to OPERATION CHECK [12/2017 - ] ).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Electrical Key Transmitter Sub-assembly
   *a	0.7 to 1.0 m (2.30 to 3.28 ft.)

2. When the electrical key transmitter sub-assembly is held at the same height as the rear bumper upper surface, align it with the center of the rear of the vehicle and check that the wireless door lock buzzer sounds.

   HINT:

   • Hold the electrical key transmitter sub-assembly at the same height as the rear bumper upper surface and align it with the center of the rear of the vehicle (0.7 to 1.0 m (2.30 to 3.28 ft.)). Make sure that the direction of the electrical key transmitter sub-assembly is as shown in the illustration.
   • If the buzzer sounds, it can be determined that the luggage compartment exterior transmitter is operating normally.

   OK

   Wireless door lock buzzer sounds.

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [03/2017 - ]

Result:

NG

See step  6

1. Disconnect the D40 certification ECU (smart key ECU assembly) connector.
2. Disconnect the H3 electrical key antenna (outside luggage) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D40-1 (CG8B) - H3-2 (ANT2)	Always	Below 1 Ω
   D40-2 (CLG8) - H3-1 (ANTE8)	Always	Below 1 Ω
   D40-1 (CG8B) or H3-2 (ANT2) - Body ground	Always	10 kΩ or higher
   D40-2 (CLG8) or H3-1 (ANTE8) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  7

1. Remove the electrical key antenna (outside luggage) (Refer to REMOVAL [03/2017 - ] )

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   1 (ANTE8) - 2 (CLGB)	Always	Below 1 Ω

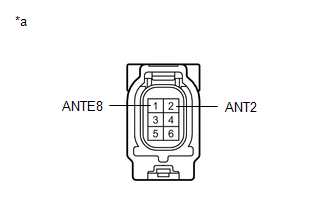

   TEXT IN ILLUSTRATION



   *a	Component without harness connected: (Electrical Key Antenna (Outside Luggage))

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [03/2017 - ]

Result:

NG

REPLACE ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE). Refer to  REMOVAL [03/2017 - ]

1. Remove the back door opener switch assembly (Refer to REMOVAL [03/2017 - ] ).
2. Inspect the back door opener switch assembly (Refer to INSPECTION [06/2016 - ] ).

Result:

NG

REPLACE BACK DOOR OPENER SWITCH ASSEMBLY. Refer to  REMOVAL [03/2017 - ]

Result:

OK

See step  9

1. Disconnect the D40 certification ECU (smart key ECU assembly) connector.
2. Disconnect the J2 back door opener switch assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D40-27 (TSW5) - J2-2	Always	Below 1 Ω
   J2-1 - Body ground	Always	Below 1 Ω
   D40-27 (TSW5) or J2-2 - Body ground	Always	10 kΩ or higher

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [03/2017 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

1. Remove the luggage door closer assembly (Refer to REMOVAL [03/2017 - ] ).
2. Inspect the luggage door closer assembly (Refer to INSPECTION [06/2016 - ] ).

Result:

NG

REPLACE LUGGAGE DOOR CLOSER ASSEMBLY. Refer to  REMOVAL [03/2017 - ]

Result:

OK

See step  11

1. Disconnect the 3B and 3D instrument panel junction block assembly connectors.
2. Disconnect the J3 luggage door closer assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3B-6 - J3-1 (B)	Always	Below 1 Ω
   3D-26 - J3-3 (D+)	Always	Below 1 Ω
   J3-2 (E) - Body ground	Always	Below 1 Ω
   3B-6 or J3-1 (B) - Body ground	Always	10 kΩ or higher
   3D-26 or J3-3 (D+) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  12

1. Replace the instrument panel junction block assembly with a new one (Refer to REMOVAL [06/2016 - ] ).

Result:

NEXT

See step  13

1. Check that the luggage compartment open functions operate normally (Refer to OPERATION CHECK [03/2017 - 12/2017] Refer to OPERATION CHECK [12/2017 - ] ).

   OK

   Luggage compartment door entry unlock functions operate normally.

Result:

OK

END (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WAS DEFECTIVE)

Result:

NG

REPLACE MAIN BODY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [06/2016 - ]
