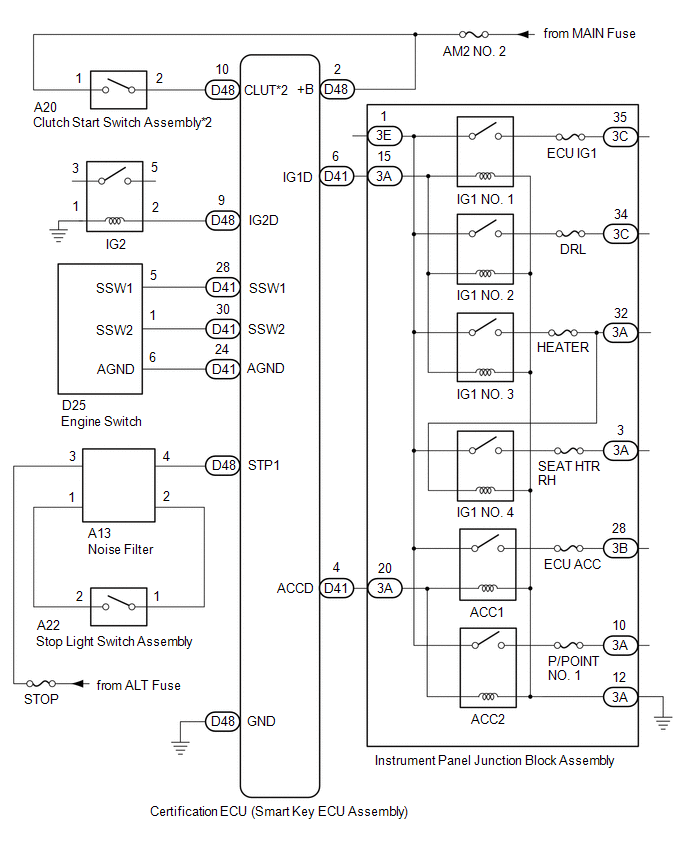

Power Source Mode does not Change to ON (IG and ACC) [03/2017 - 12/2017]: Wiring Diagram

GTY722920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
