Combination Meter ECU Communication Stop Mode [06/2016 - ]: Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the D7 combination meter assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D7-6 (CANH) - D7-7 (CANL)	Cable disconnected from negative (-) battery terminal	57 to 63 Ω

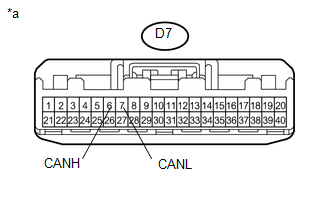

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Combination Meter Assembly)

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (COMBINATION METER ASSEMBLY)

Result:

OK

See step  2

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D7-20 (ES1) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω
   D7-40 (ES2) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

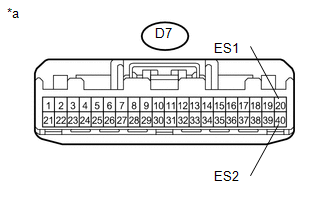

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Combination Meter Assembly)

2. Connect the cable to the negative (-) battery terminal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   D7-1 (B) - Body ground	Ignition switch off	11 to 14 V
   D7-2 (IG+) - Body ground	Ignition switch ON	11 to 14 V

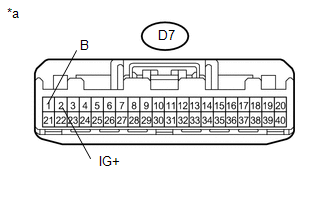

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Combination Meter Assembly)

Result:

OK

REPLACE COMBINATION METER ASSEMBLY

(Refer to REMOVAL [06/2016 - 03/2017] , or refer to REMOVAL [03/2017 - ] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
