System Diagram [06/2016 - 03/2017]

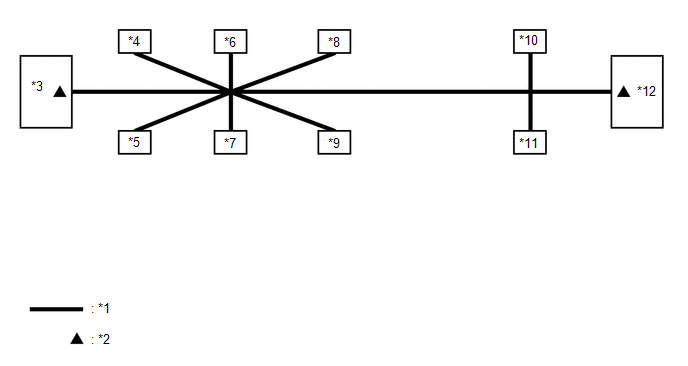

1. Control system CAN is composed of 1 bus.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	V Bus	*2	V Bus Terminating Resistor
   *3	ECM (for V Bus)	*4	Combination Meter Assembly (for V Bus)
   *5	Main Body ECU (Network Gateway ECU) (for V Bus)	*6	DLC3 (for V Bus)
   *7	Steering Angle Sensor (Spiral Cable Sub-assembly) (for V Bus)	*8	PSP (Option Connector) (for V Bus)
   *9	Airbag ECU Assembly (for V Bus)	*10	TCM (for V Bus)
   *11	Power Steering ECU Assembly (for V Bus)	*12	Skid Control ECU (Brake Actuator Assembly) (for V Bus)

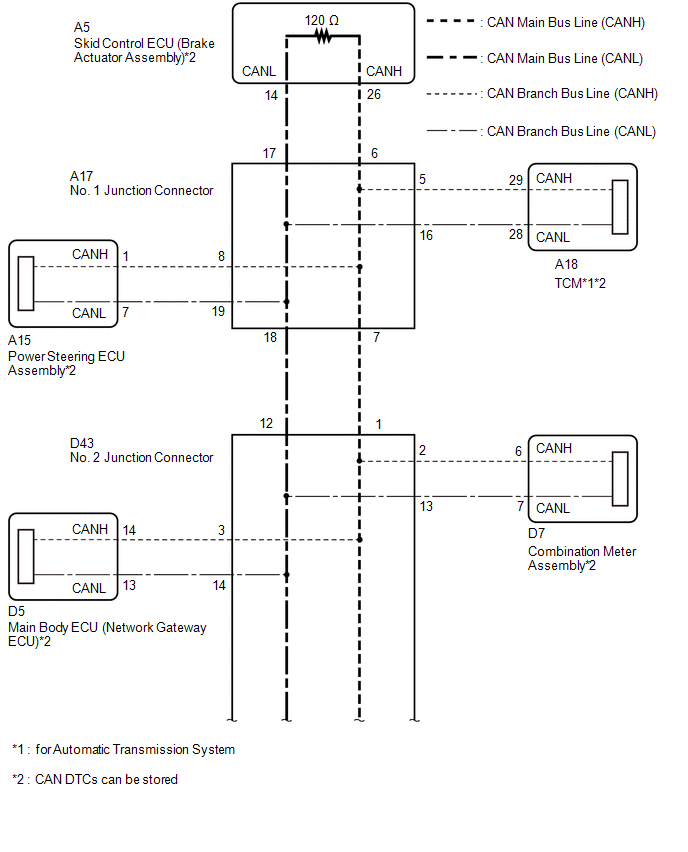

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

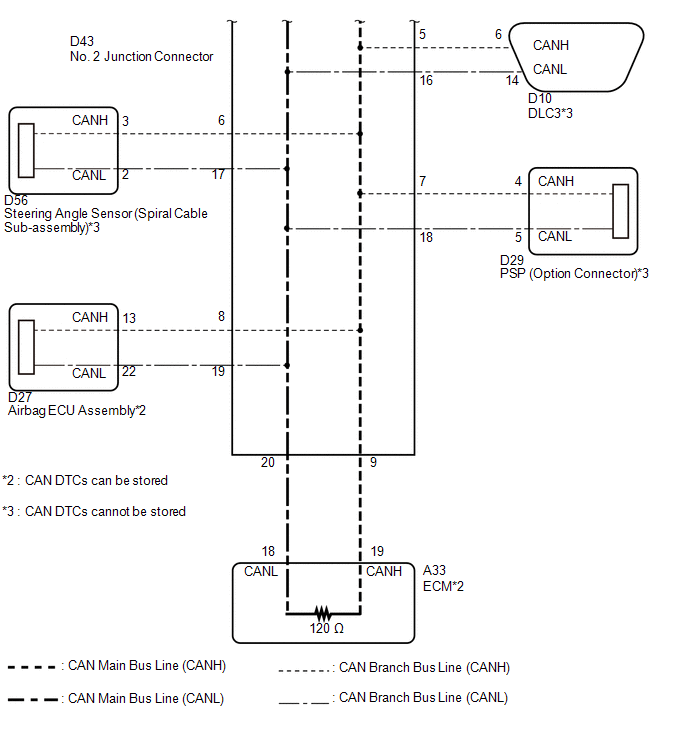

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The CAN communication system connects to other networks via ECUs that function as a gateway (Refer to SYSTEM DIAGRAM [06/2016 - 03/2017] ).
