Key Interlock System - Diagnostics & Symptom Tests
>>
Key Inter Lock System
>>
System Diagram [06/2016 - ]
>>
System Diagram [06/2016 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

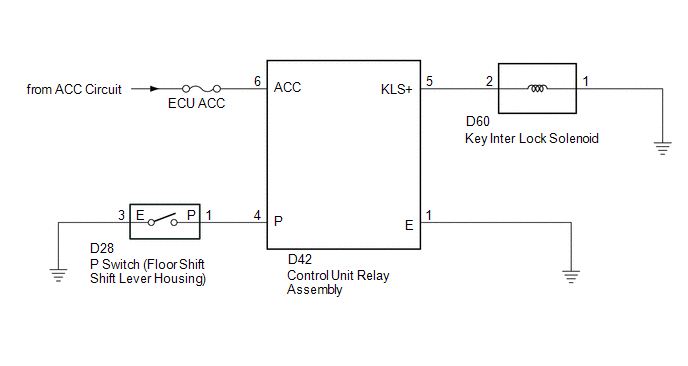

System Diagram [06/2016 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
