Fail-Safe Chart [06/2016 - ]

  1. POWER WINDOW OPERATION IN FAIL-SAFE MODE

    HINT:

    If the pulse sensor built into the power window regulator motor malfunctions, the power window control system enters fail-safe mode.

    1. The power window control system prohibits the following power window operations when the pulse sensor for the jam protection function has problems and the window position or the learned value is abnormal.
      POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

      Power Window Operation Condition
      Ignition switch ON Ignition switch off
      (Key-off operation permitted)      		 Ignition switch off
      (Key-off operation prohibited)
      Manual up (Driver side door window) X X -
      Manual down (Driver side door window) ◦ X -
      Auto up (Driver side door window)
      (hold switch at auto up position)      		 ◦* X -
      Auto up (Driver side door window) X X -
      Auto down (Driver side door window) X X -
      Manual up (Remote switch operation) X X -
      Manual down (Remote switch operation) X X -
      Auto up (Remote switch operation)
      (hold switch at auto up position)      		 X X -
      Auto up (Remote switch operation) X X -
      Auto down (Remote switch operation) X X -
      POWER WINDOW REGULATOR SWITCH ASSEMBLY

      Power Window Operation Condition
      Ignition switch ON Ignition switch off
      (Key-off operation permitted)      		 Ignition switch off
      (Key-off operation prohibited)
      Manual up (Front passenger side door window) X X -
      Manual down (Front passenger side door window) ◦ X -
      Auto up (Front passenger side door window)
      (hold switch at auto up position)      		 ◦* X -
      Auto up (Front passenger side door window) X X -
      Auto down (Front passenger side door window) X X -

      HINT:

      • ◦: Operates
      • X: Operation prohibited
      • *: Operates in pull up the power window switch to the auto up position without jam protection
      1. Power window switch LED control

        HINT:

        During initialization of the power window regulator motor ECU, when the window position or initialization complete status cannot be properly read from the EEPROM during fail-safe mode, the LED illuminates as shown in the illustration.

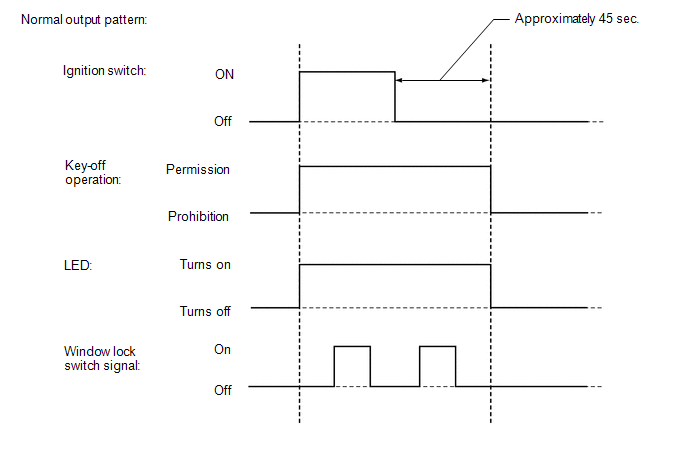

        1. For Driver Side:
          GTY708565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

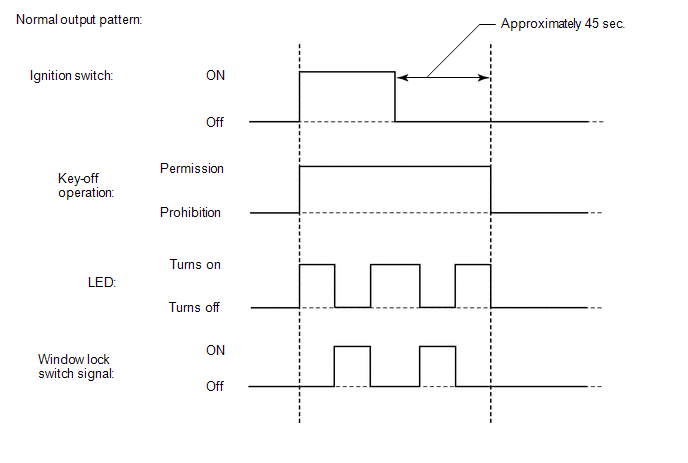

        2. For Front Passenger Side:
          GTY700170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Fail-safe deactivation condition
        • When the pulse sensor is normal, to deactivate fail-safe mode, pull up the power window switch to the auto up position and hold it for at least 1 second to fully close the window from the fully open position. As a result, the auto up/down function will return.
    2. Initialization failure

      HINT:

      During initialization of the power window regulator motor ECU, when the window position or initialization complete status cannot be properly read from the EEPROM, the power window control system prohibits the operations as follows:

      POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

      Power Window Operation Condition
      Ignition switch ON Ignition switch off
      (Key-off operation permitted)      		 Ignition switch off
      (Key-off operation prohibited)
      Manual up (Driver side door window) X X -
      Manual down (Driver side door window) ◦ X -
      Auto up (Driver side door window)
      (hold switch at auto up position)      		 ◦* X -
      Auto up (Driver side door window) X X -
      Auto down (Driver side door window) X X -
      Manual up (Remote switch operation) X X -
      Manual down (Remote switch operation) X X -
      Auto up (Remote switch operation)
      (hold switch at auto up position)      		 X X -
      Auto up (Remote switch operation) X X -
      Auto down (Remote switch operation) X X -
      POWER WINDOW REGULATOR SWITCH ASSEMBLY

      Power Window Operation Condition
      Ignition switch ON Ignition switch off
      (Key-off operation permitted)      		 Ignition switch off
      (Key-off operation prohibited)
      Manual up (Front passenger side door window) X X -
      Manual down (Front passenger side door window) ◦ X -
      Auto up (Front passenger side door window)
      (hold switch at auto up position)      		 ◦* X -
      Auto up (Front passenger side door window) X X -
      Auto down (Front passenger side door window) X X -

      HINT:

      • ◦: Operates
      • X: Operation prohibited
      • *: Operates in pull up the power window switch to the auto up position without jam protection
      1. Power window switch LED control

        HINT:

        • During normal operation (fail-safe is not operating) the LED illuminate as shown in the illustration.
        • When a LIN communication system failure occurs, the LED will blink in a pattern of being on for 1.4 seconds, and then off for 1.4 seconds.
        • If another failure occurs at the same time as the LIN failure, the pattern of being on for 0.7 seconds and off for 0.7 seconds will take precedence.

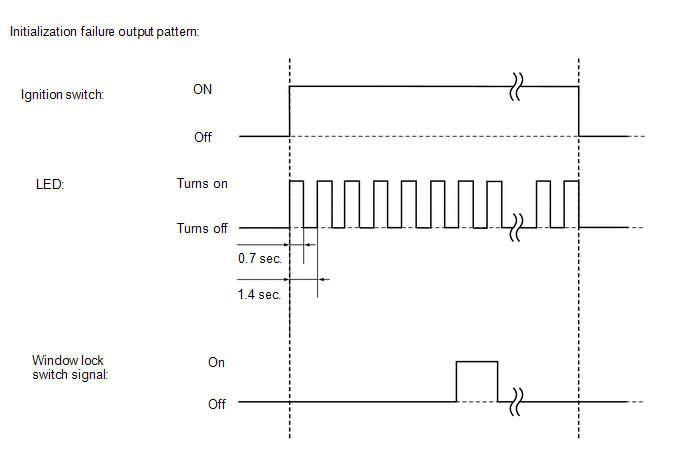

        1. For Driver Side:
          GTY707750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

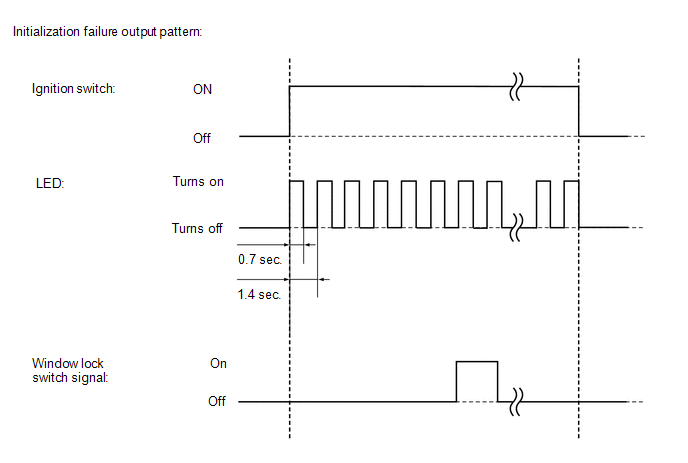

        2. For Front Passenger Side:
          GTY707749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. LIN communication failure

      HINT:

      If the LIN communication line malfunctions (communication stop), the power window control system prohibits the operations as follows:

      POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

      Power Window Operation Condition
      Ignition switch ON
      Manual up ◦*
      Manual down ◦
      Auto up (hold switch at auto up position) ◦*
      Auto up ◦*
      Auto down ◦
      POWER WINDOW REGULATOR SWITCH ASSEMBLY

      Power Window Operation Condition
      Ignition switch ON
      Manual up ◦*
      Manual down ◦
      Auto up (hold switch at auto up position) ◦*
      Auto up ◦*
      Auto down ◦

      HINT:

      • ◦: Operates
      • X: Operation prohibited
      • *: Jam protection can operate.
      • Remote up/down function does not operate.
    4. LIN communication failure and pulse sensor failure

      HINT:

      If the LIN communication line malfunctions (communication stop) and the pulse sensor for the jam protection function has problems, the power window control system prohibits the operations as follows:

      POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

      Power Window Operation Condition
      Always
      Manual up X
      Manual down X
      Auto up (hold switch at auto up position) X
      Auto up X
      Auto down X
      POWER WINDOW REGULATOR SWITCH ASSEMBLY

      Power Window Operation Condition
      Always
      Manual up X
      Manual down X
      Auto up (hold switch at auto up position) X
      Auto up X
      Auto down X

      HINT:

      • ◦: Operates
      • X: Operation prohibited
      • Driver door window: When the jam protection function does not operate due to a LIN communication failure, the manual up and auto up functions will not operate.
      • Remote switch operation: Not operative during a LIN communication failure
    5. LIN communication failure and abnormal window position learned value or initialization failure

      HINT:

      If the LIN communication line malfunctions (communication stop) and the window position or the learned value is abnormal, the power window control system prohibits the operations as follows:

      POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

      Power Window Operation Condition
      Always
      Manual up X
      Manual down ◦
      Auto up (hold switch at auto up position) ◦*
      Auto up X
      Auto down X

      HINT:

      • ◦: Operates
      • X: Operation prohibited
      • *: Operates in pull up the power window switch to the auto up position without jam protection
      • Remote switch operation: Operation is not possible during a LIN communication failure.
