Components [06/2016 - 03/2017]

Fig 1: Automatic Transmission Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY700698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

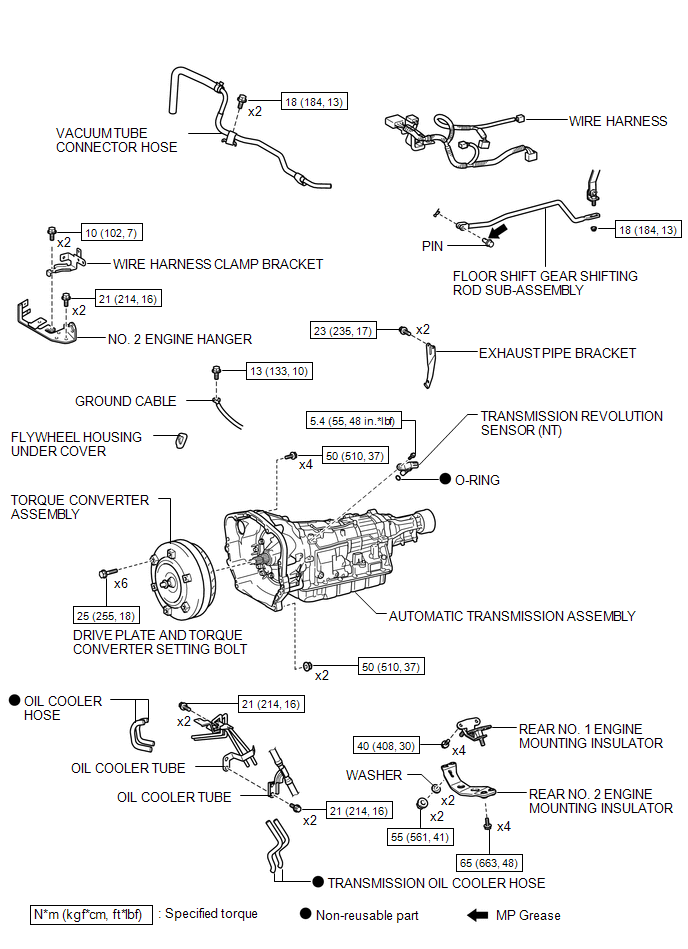

Fig 2: Automatic Transmission Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY856474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
