Components [06/2016 - ]

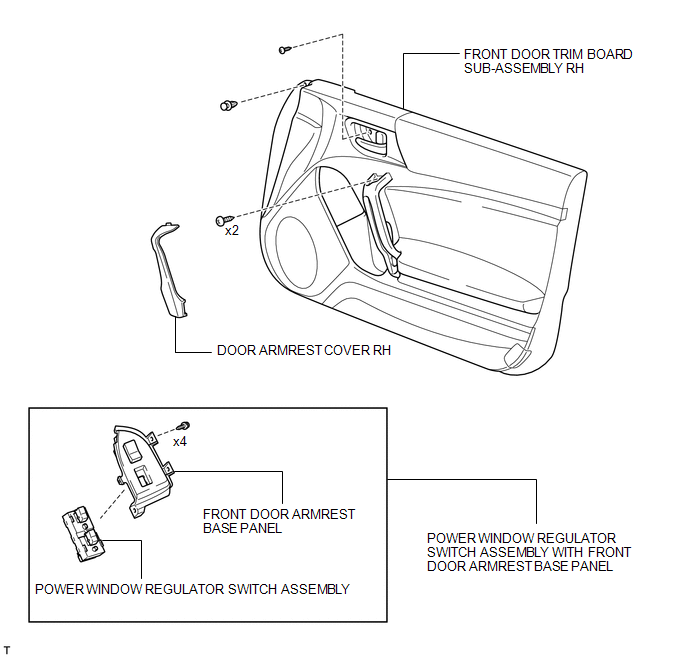

Fig 1: Front Passenger Side Power Window Switch Replacement Components
GTY707836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
