Removal [06/2016 - ]: Procedure

  1. REMOVE FRONT WHEEL LH
  2. REMOVE FRONT FENDER LINER LH

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT SPEED SENSOR LH

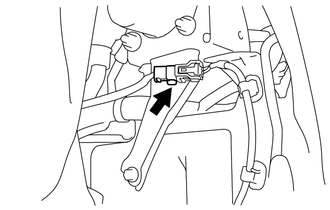

    1. Disconnect the front speed sensor connector.
      GTY390893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

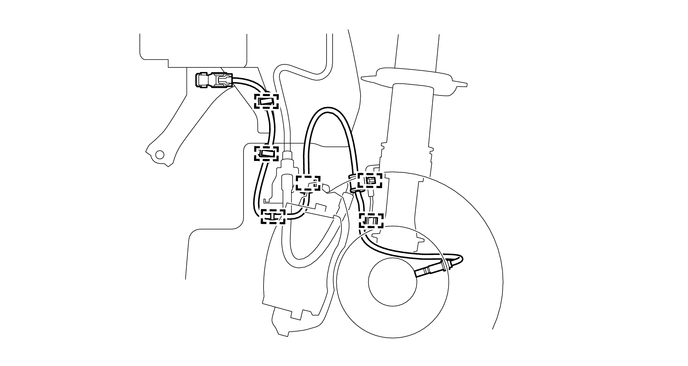

    2. Disconnect the 6 clamps.
      GTY391142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and front speed sensor LH from the steering knuckle.
      GTY689236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Clean the speed sensor installation hole and the contact surfaces every time the front speed sensor is removed.
