Components [06/2016 - ]

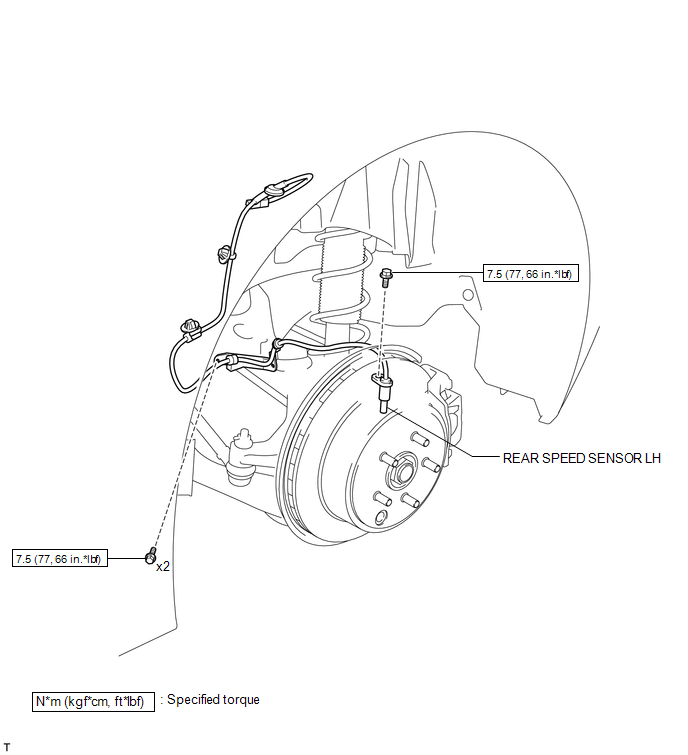

Fig 1: Rear Speed Sensor Replacement Components With Torque Specifications
GTY703454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
