Removal [06/2016 - ]: Procedure

  1. REMOVE REAR WHEEL LH
  2. REMOVE REAR SPEED SENSOR LH
    1. Remove the luggage compartment floor mat.
    2. Disconnect the rear speed sensor LH connector.
      GTY392963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

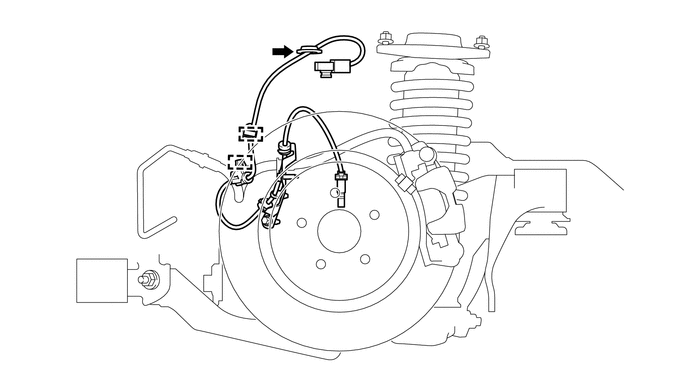

    3. Disconnect the rear speed sensor LH grommet and 2 harness clamps from the rear wheel house.
      GTY391144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Rear Speed Sensor LH Grommet - -

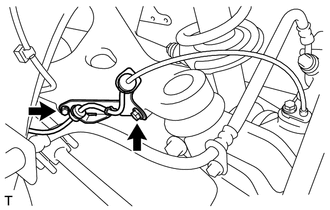

    4. Remove the 2 bolts from the bracket.
      GTY391465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

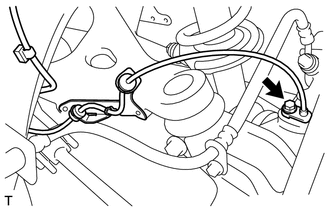

    5. Remove the bolt and the rear speed sensor LH.
      GTY385239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Clean the speed sensor installation hole and the contact surfaces every time the rear speed sensor is removed.
