Removal [06/2016 - 03/2017]: Procedure

ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
REMOVE STEERING WHEEL ASSEMBLY
(Refer to REMOVAL [06/2016 - ] )
REMOVE INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 12
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
REMOVE INSTRUMENT PANEL ORNAMENT (w/ Large Ornament Panel)
Refer to PROCEDURE - Step 4
REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Large Ornament Panel)
Refer to PROCEDURE - Step 5
REMOVE METER HOOD SUB-ASSEMBLY
Refer to PROCEDURE - Step 13
REMOVE UPPER INSTRUMENT PANEL METER ORNAMENT
Refer to PROCEDURE - Step 14
INSPECT SPIRAL CABLE SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE LOWER STEERING COLUMN COVER
Refer to PROCEDURE - Step 13
REMOVE UPPER STEERING COLUMN COVER
Refer to PROCEDURE - Step 14
REMOVE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 12

REMOVE STEERING SENSOR

NOTE:

Remove the steering sensor from the spiral cable sub-assembly only when replacing it or the spiral cable.
Do not rotate the center section of the steering sensor, as it may deviate from the steering sensor neutral point.
When replacing the spiral cable sub-assembly: (Refer to REMOVAL [06/2016 - 03/2017] )

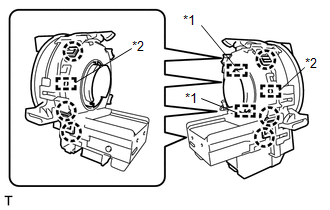

Disengage the 6 claws, 2 pins and 2 guides to remove the steering sensor from the spiral cable sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Guide
*2	Pin

NOTE:

Do not damage the guide, pin and claw of the spiral cable sub-assembly.
