System Diagrams

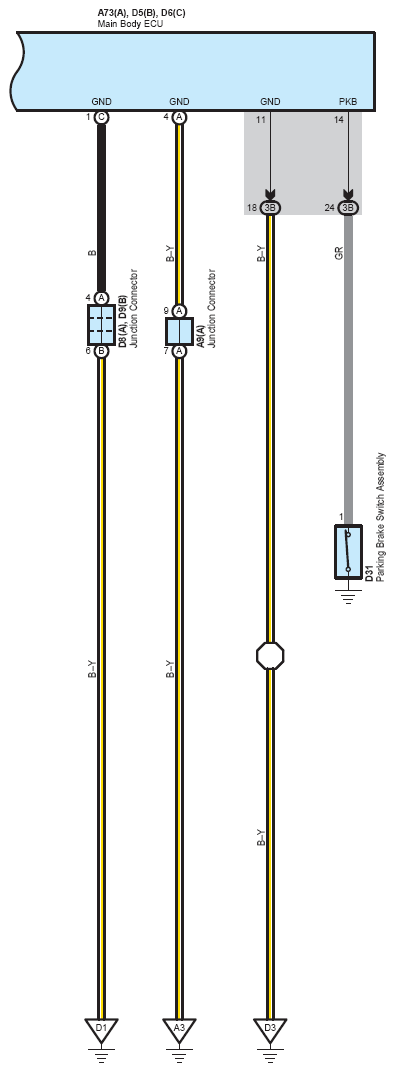

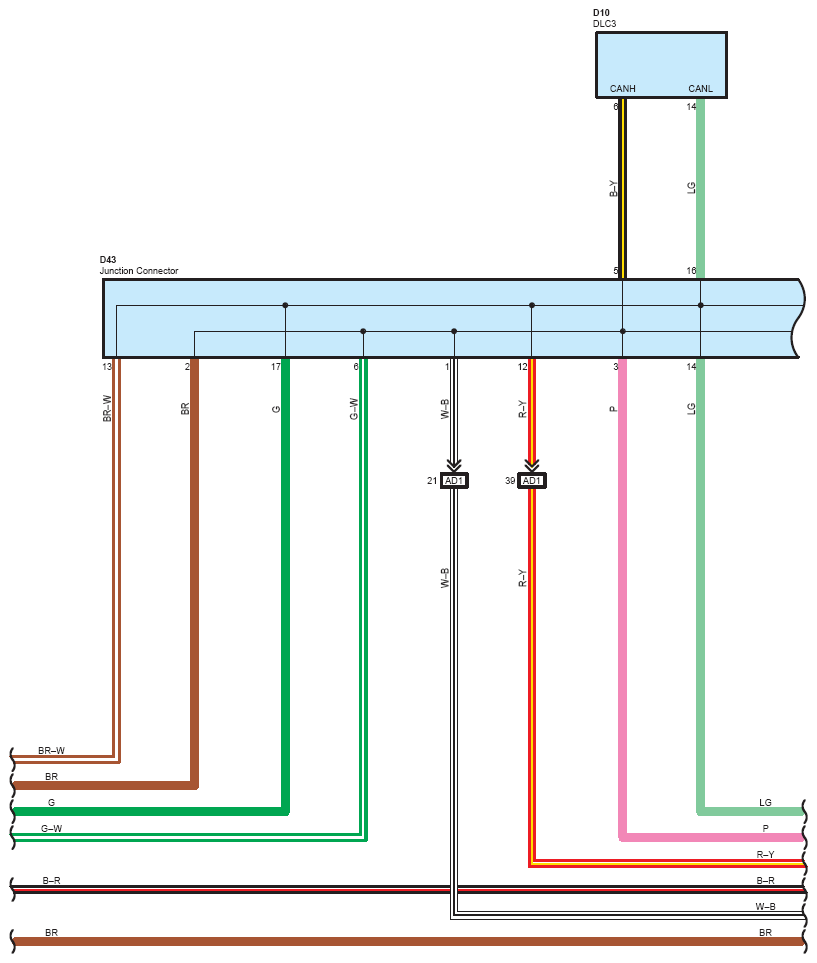

Fig 1: ABS, Hill-Start Assist Control, TRAC, VSC (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

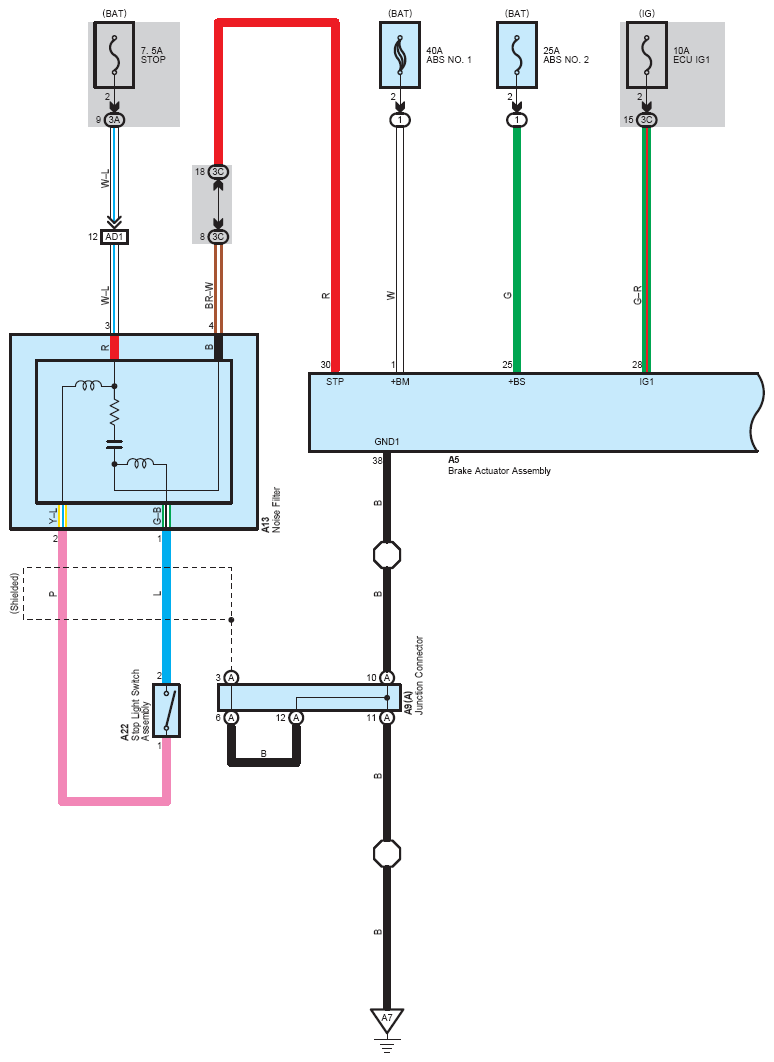

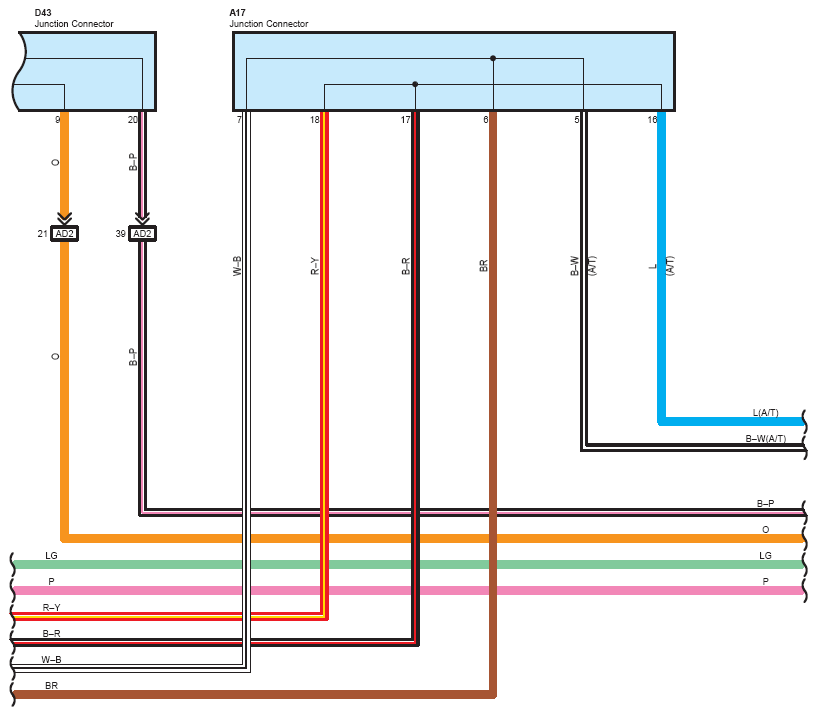

Fig 2: ABS, Hill-Start Assist Control, TRAC, VSC (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

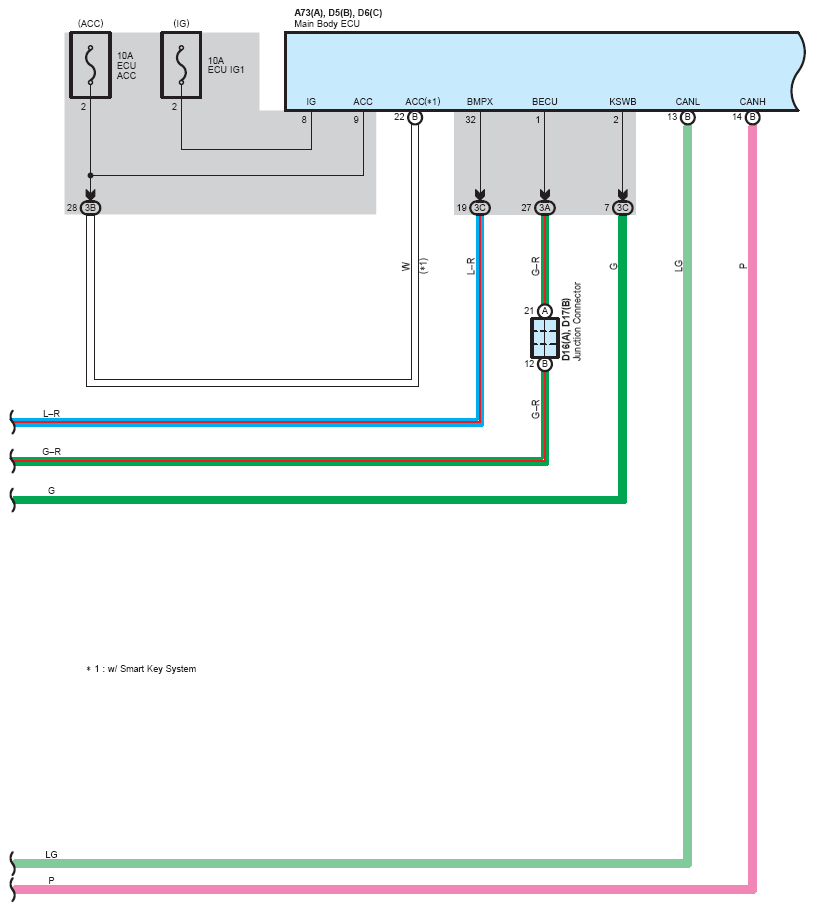

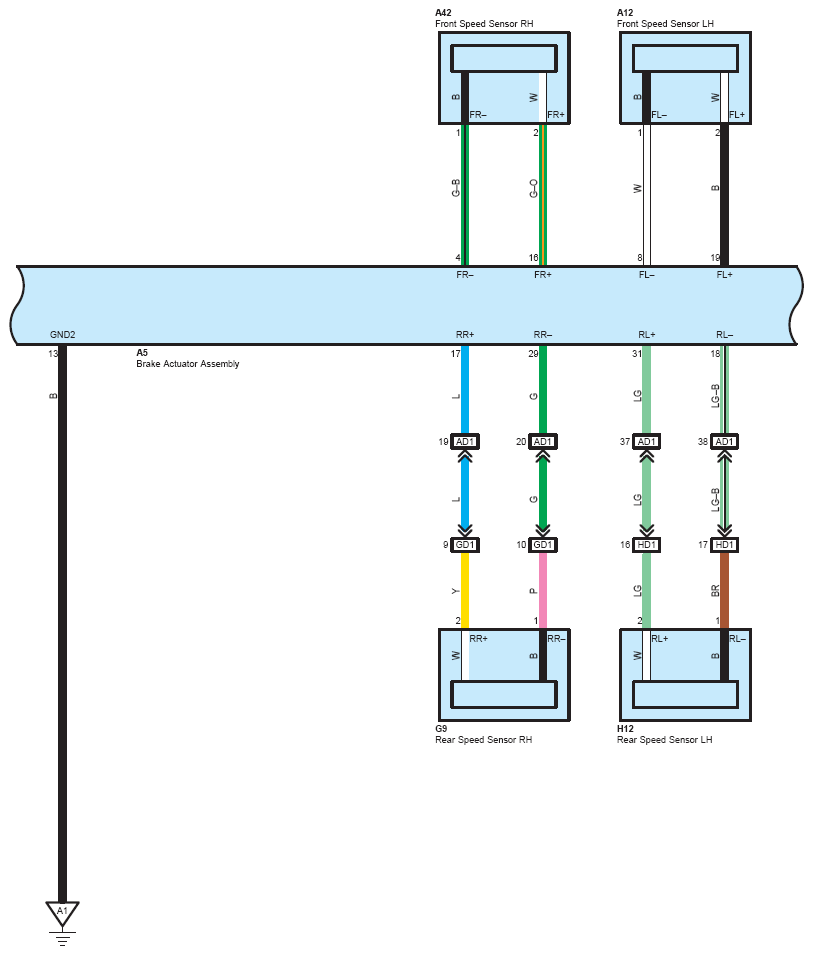

Fig 3: ABS, Hill-Start Assist Control, TRAC, VSC (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

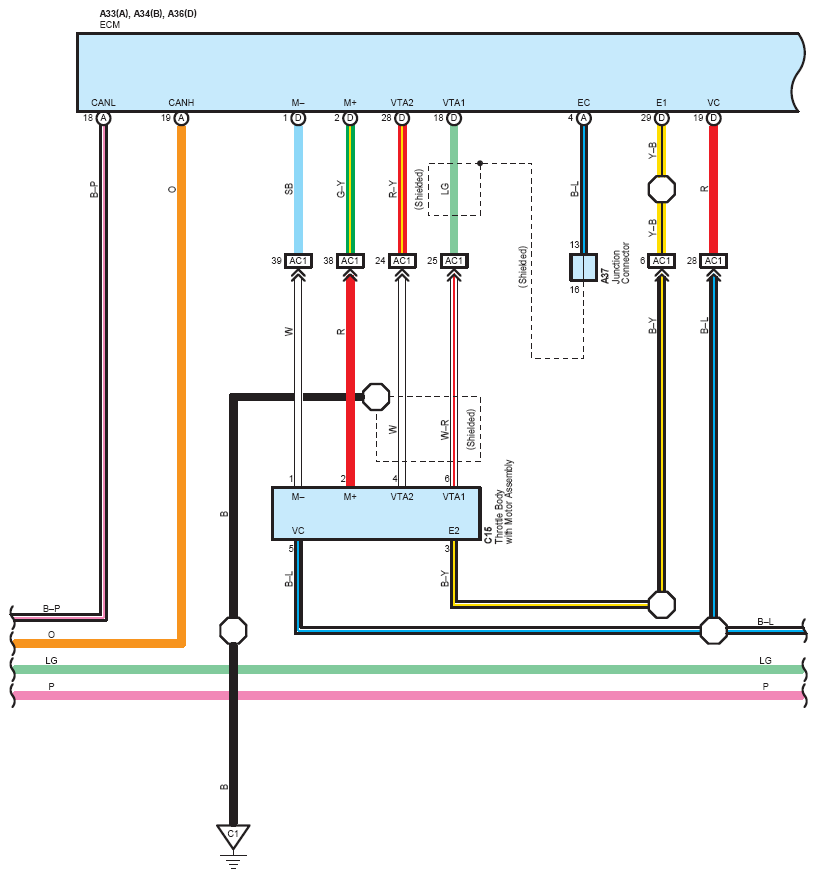

Fig 4: ABS, Hill-Start Assist Control, TRAC, VSC (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

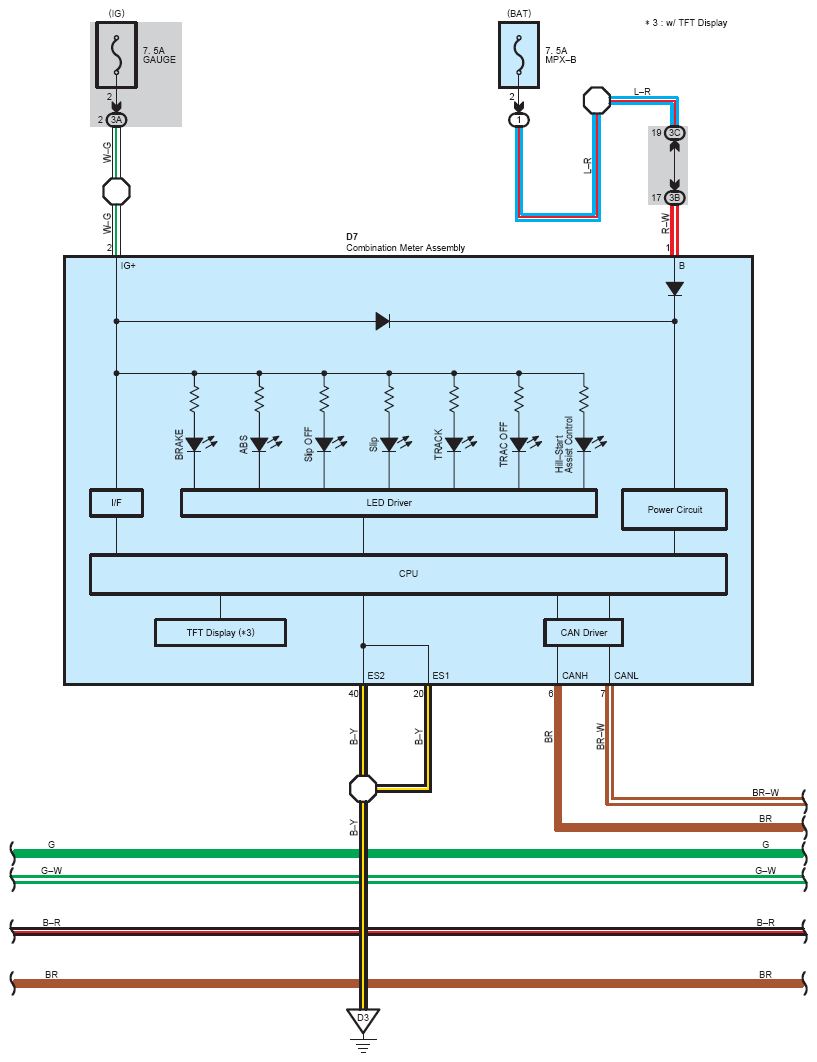

Fig 5: ABS, Hill-Start Assist Control, TRAC, VSC (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

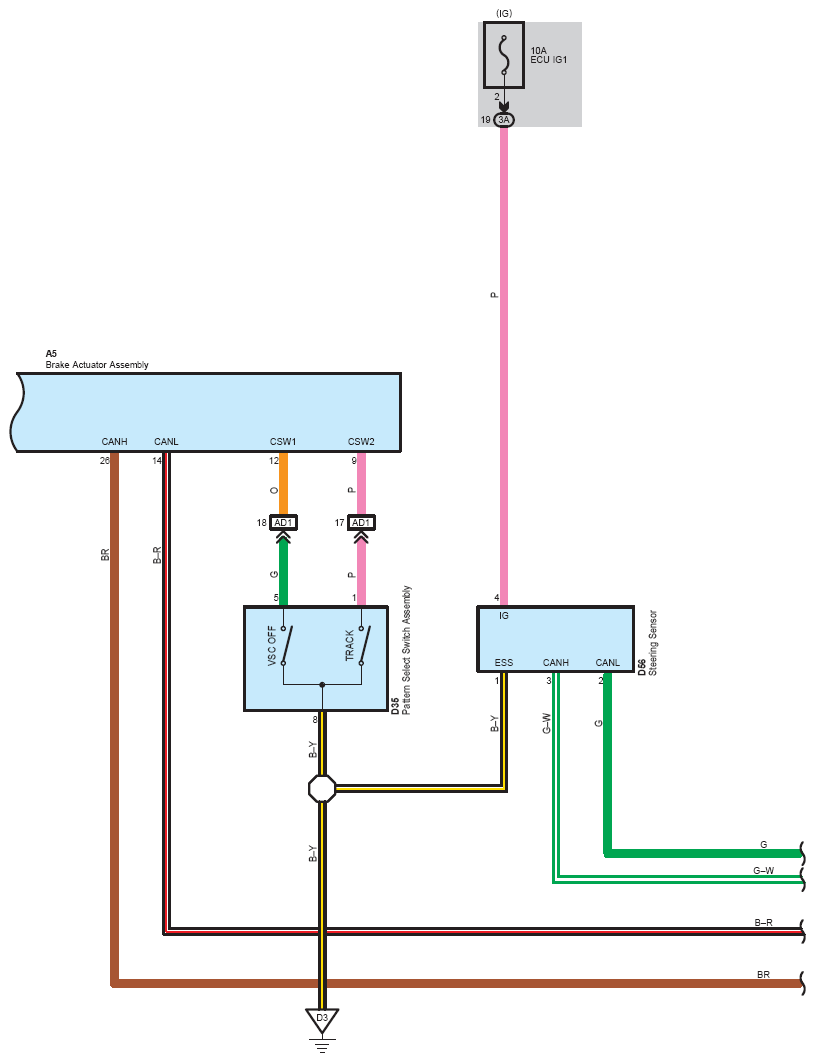

Fig 6: ABS, Hill-Start Assist Control, TRAC, VSC (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

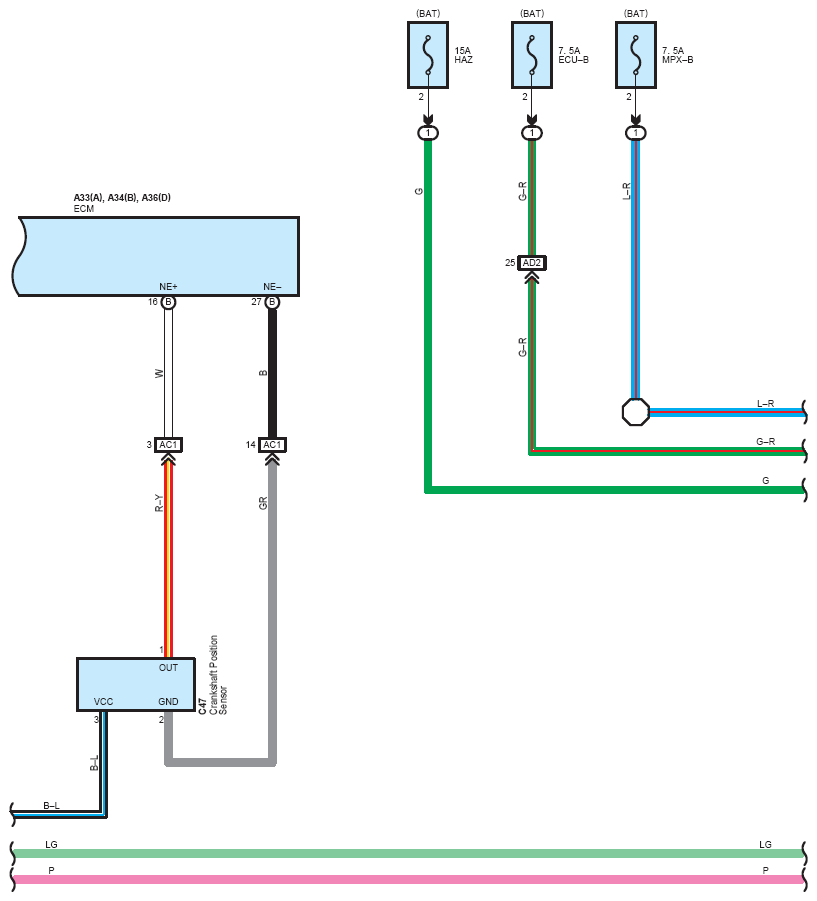

Fig 7: ABS, Hill-Start Assist Control, TRAC, VSC (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

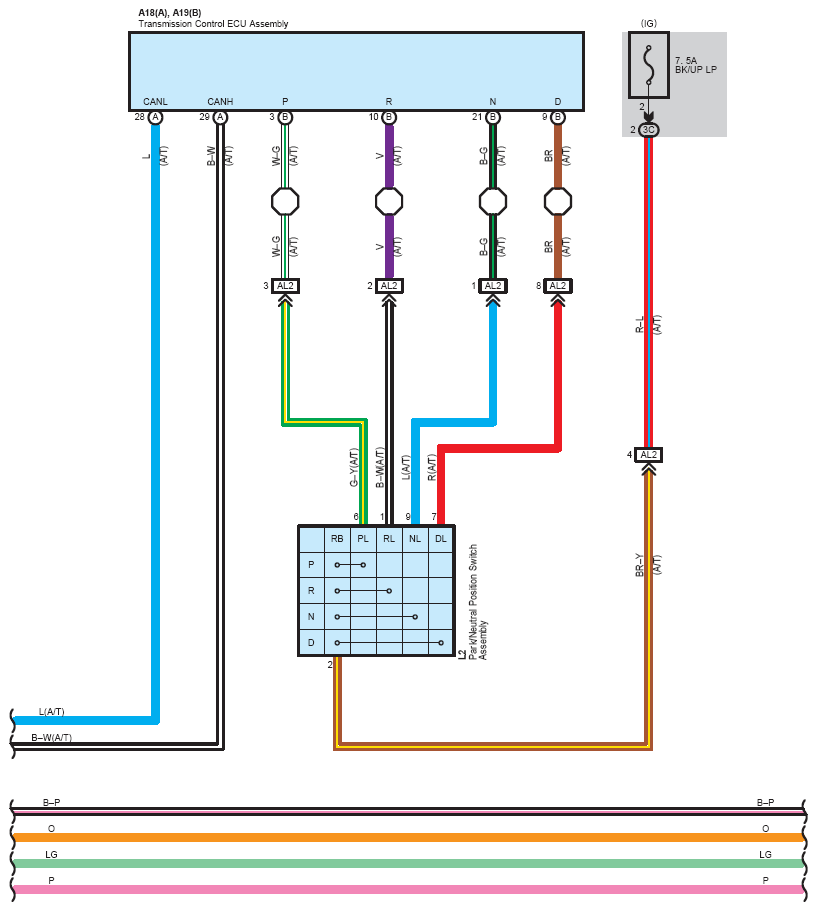

Fig 8: ABS, Hill-Start Assist Control, TRAC, VSC (8 Of 11)

Fig 9: ABS, Hill-Start Assist Control, TRAC, VSC (9 Of 11)

Fig 10: ABS, Hill-Start Assist Control, TRAC, VSC (10 Of 11)

Fig 11: ABS, Hill-Start Assist Control, TRAC, VSC (11 Of 11)
