System Diagrams

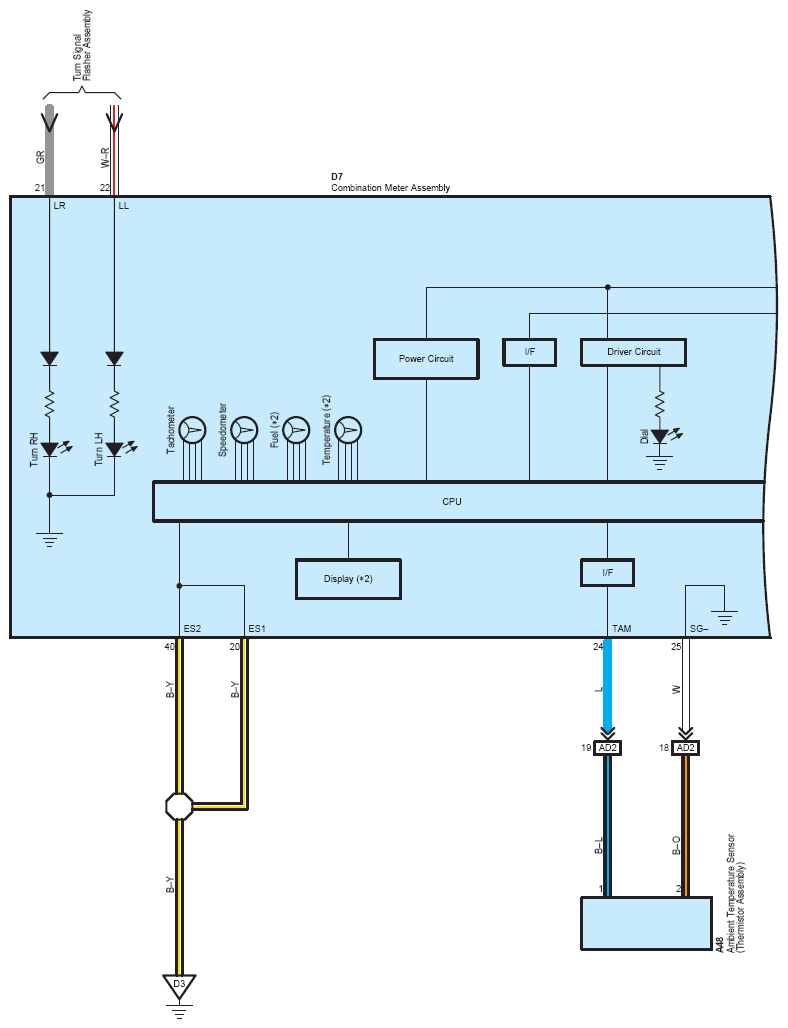

Fig 1: Combination Meter (1 Of 11)
G12191859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

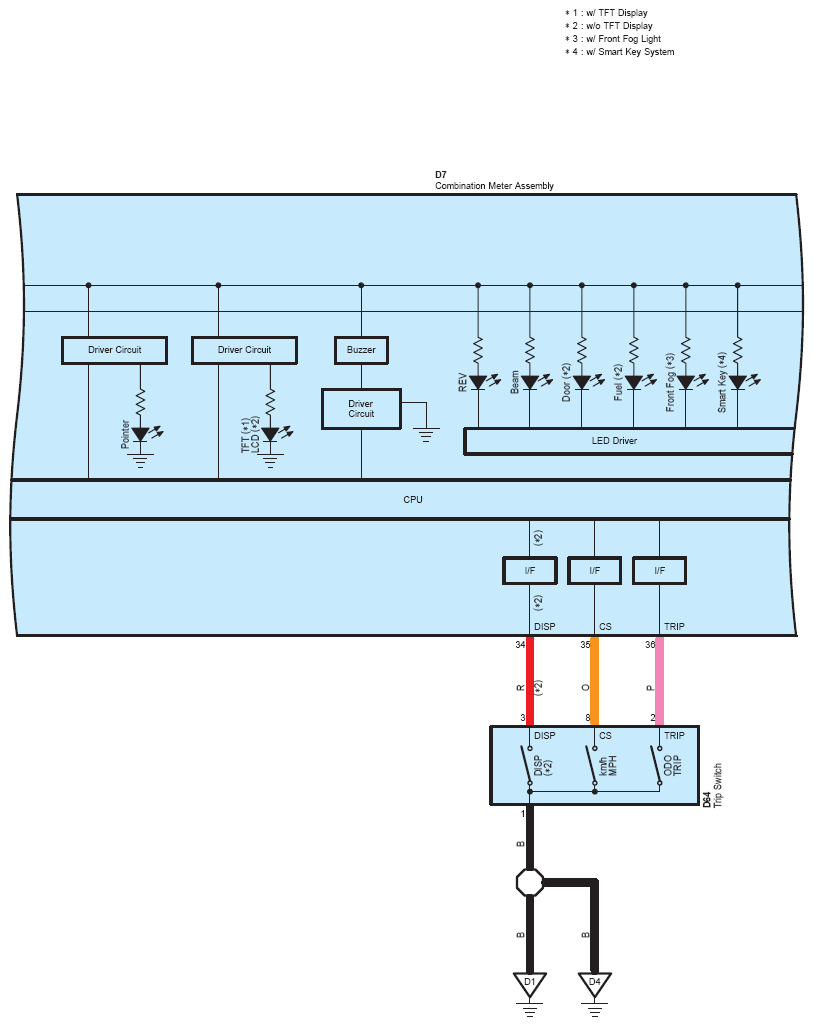

Fig 2: Combination Meter (2 Of 11)
G12191860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

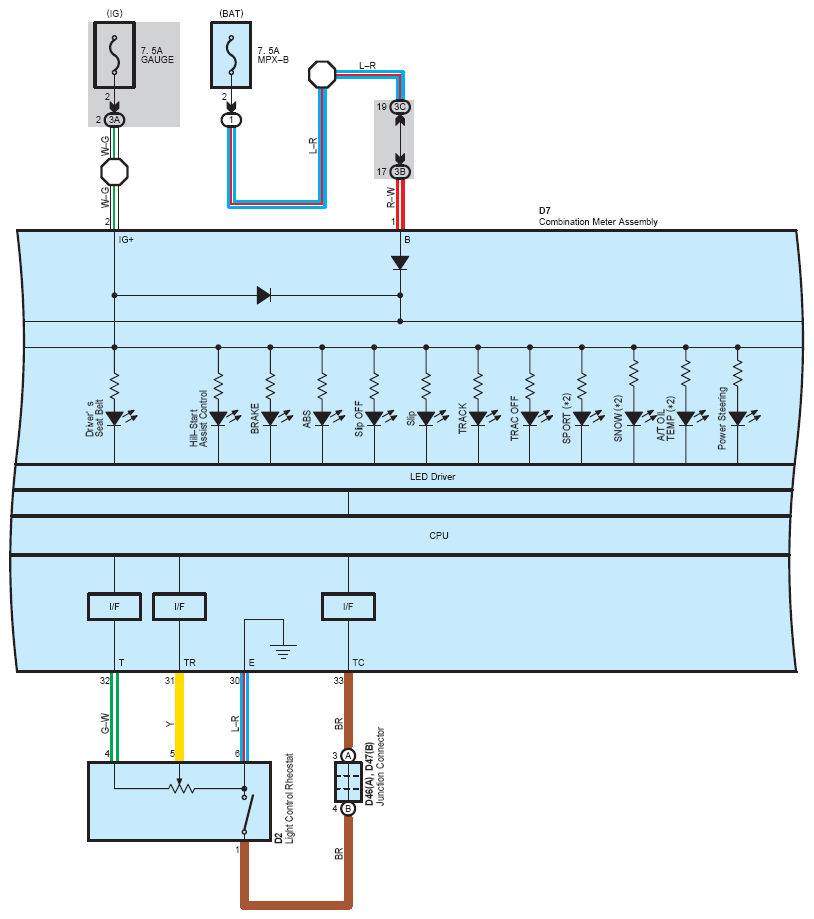

Fig 3: Combination Meter (3 Of 11)
G12191861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

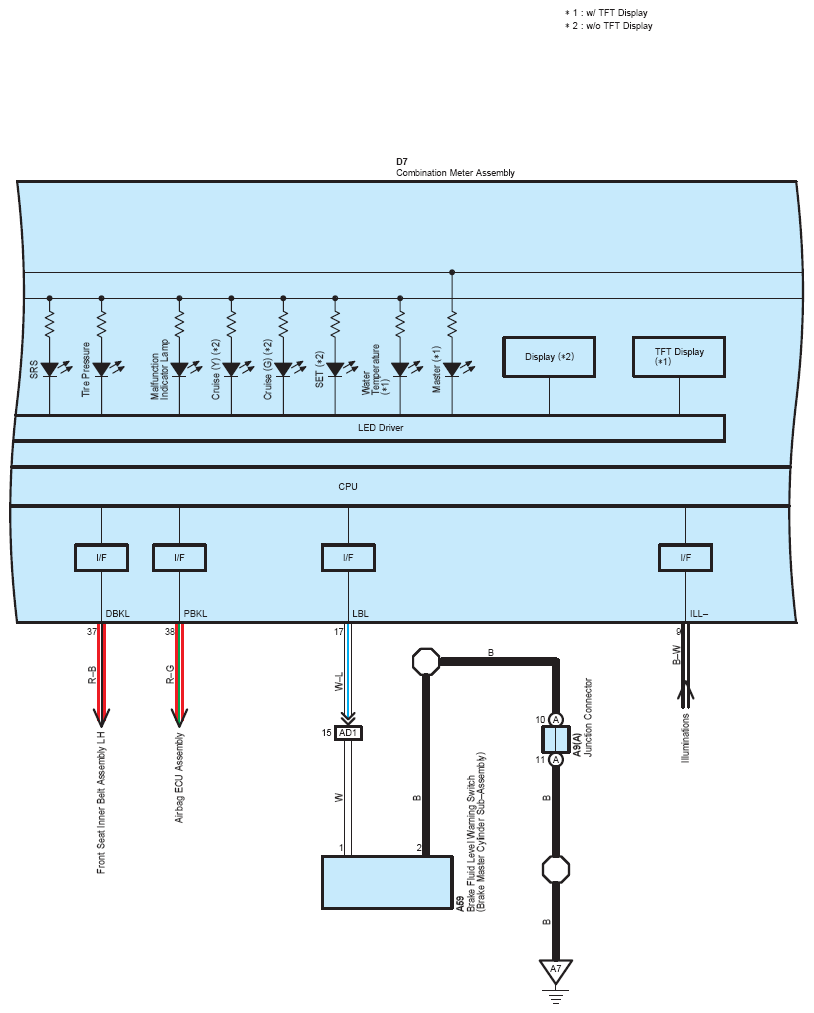

Fig 4: Combination Meter (4 Of 11)
G12191862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

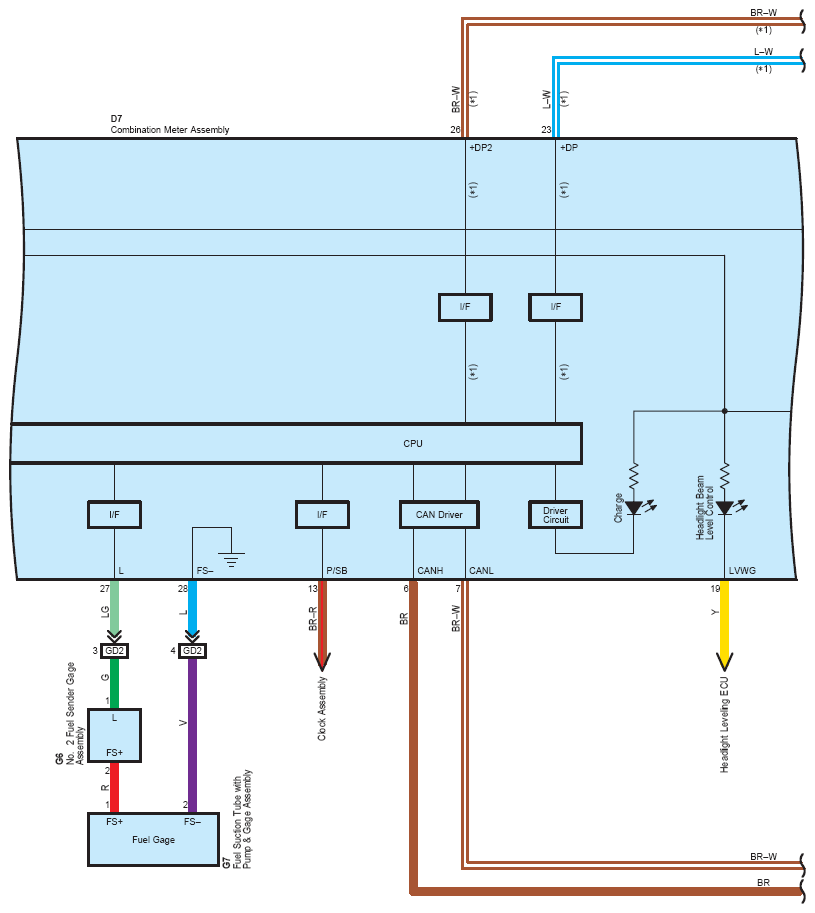

Fig 5: Combination Meter (5 Of 11)
G12191863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

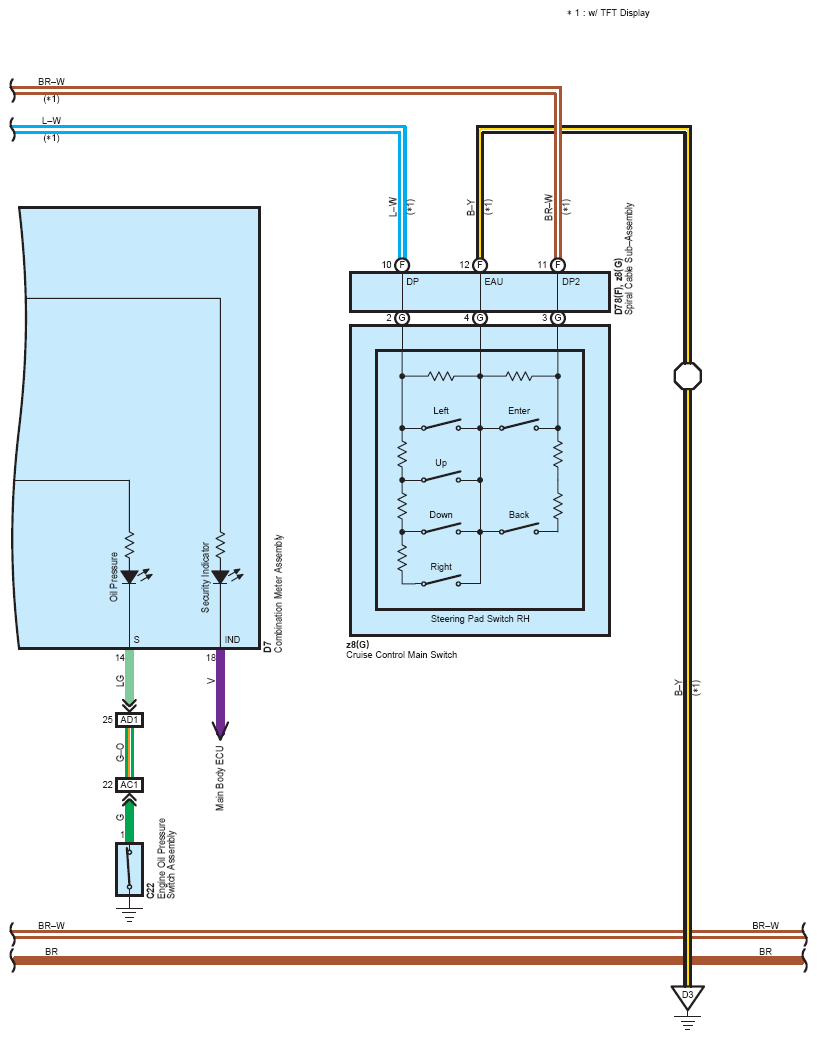

Fig 6: Combination Meter (6 Of 11)
G12191864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

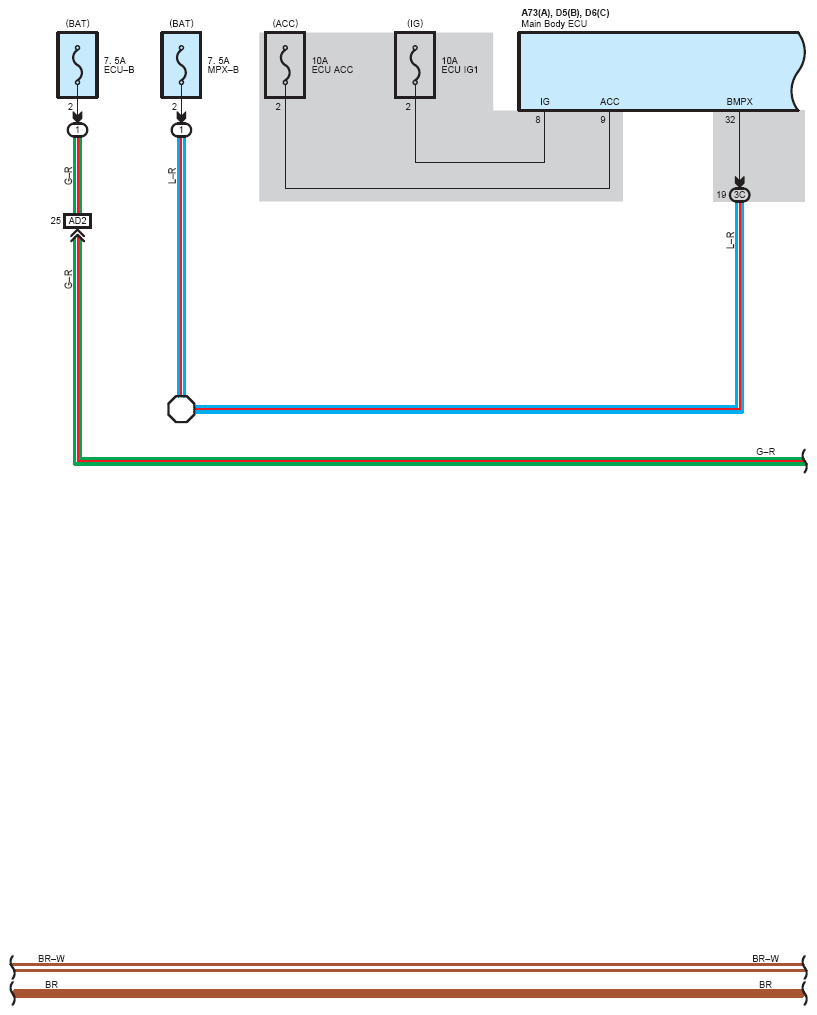

Fig 7: Combination Meter (7 Of 11)
G12191865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

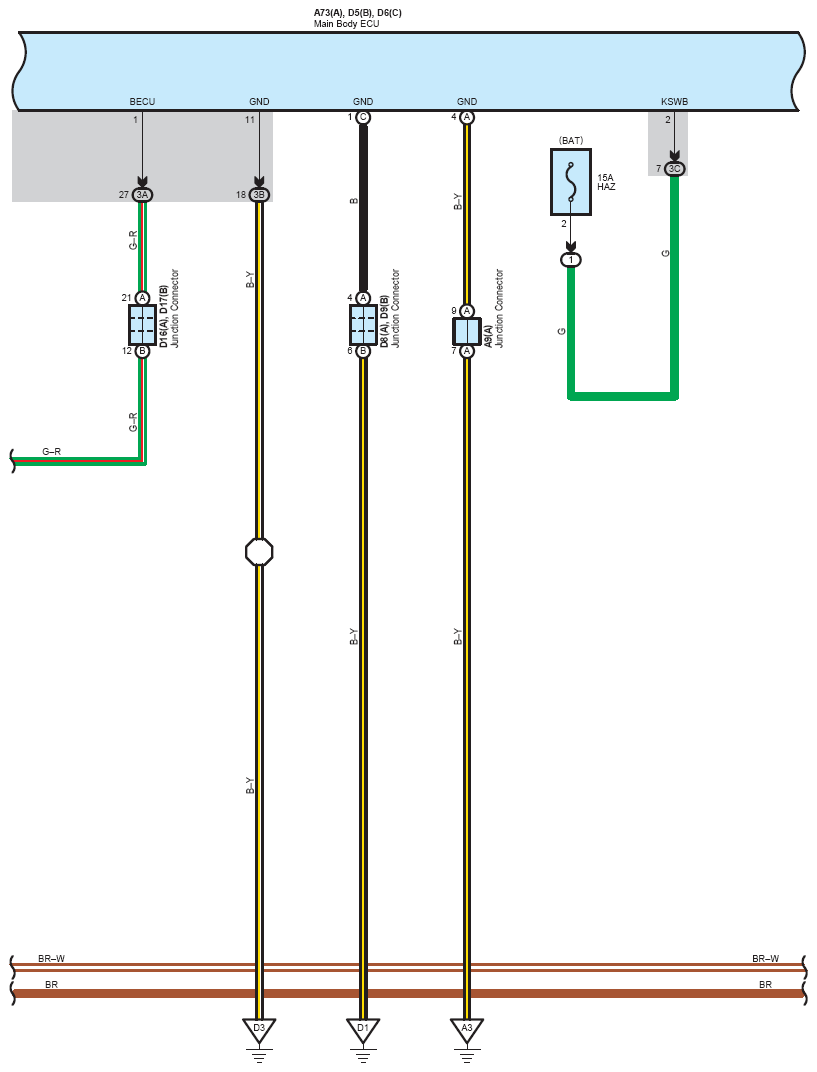

Fig 8: Combination Meter (8 Of 11)
G12191866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

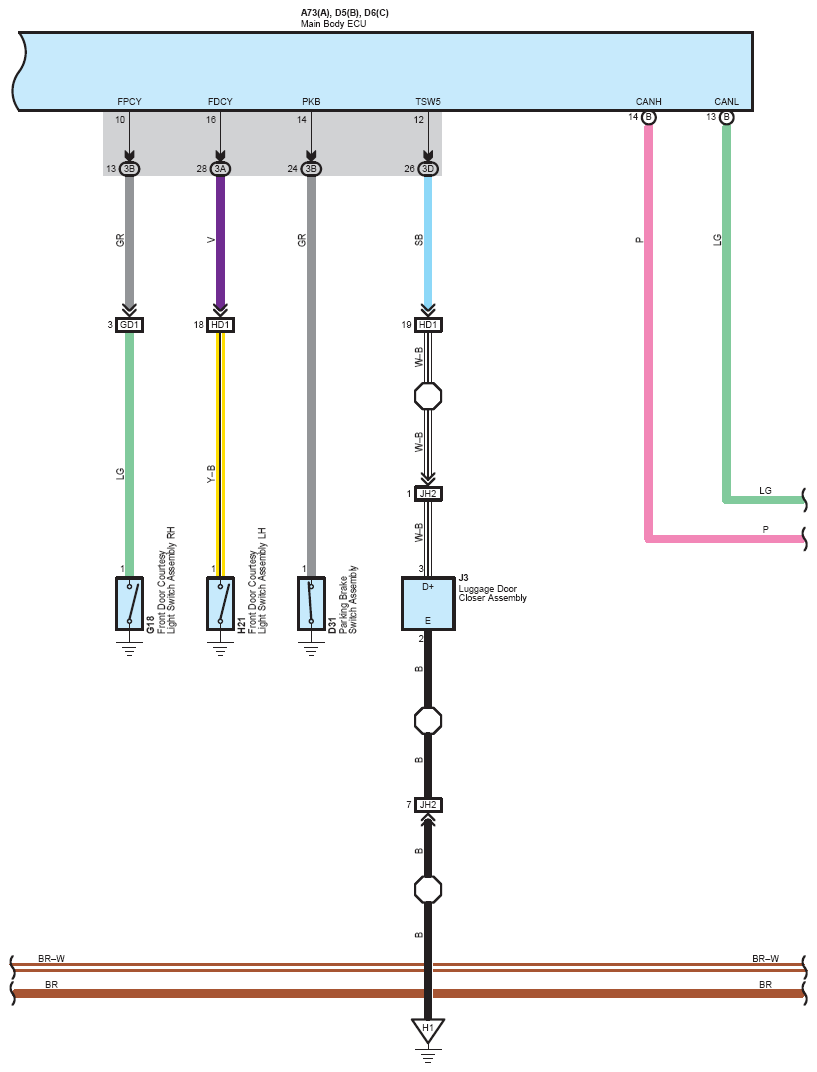

Fig 9: Combination Meter (9 Of 11)
G12191867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

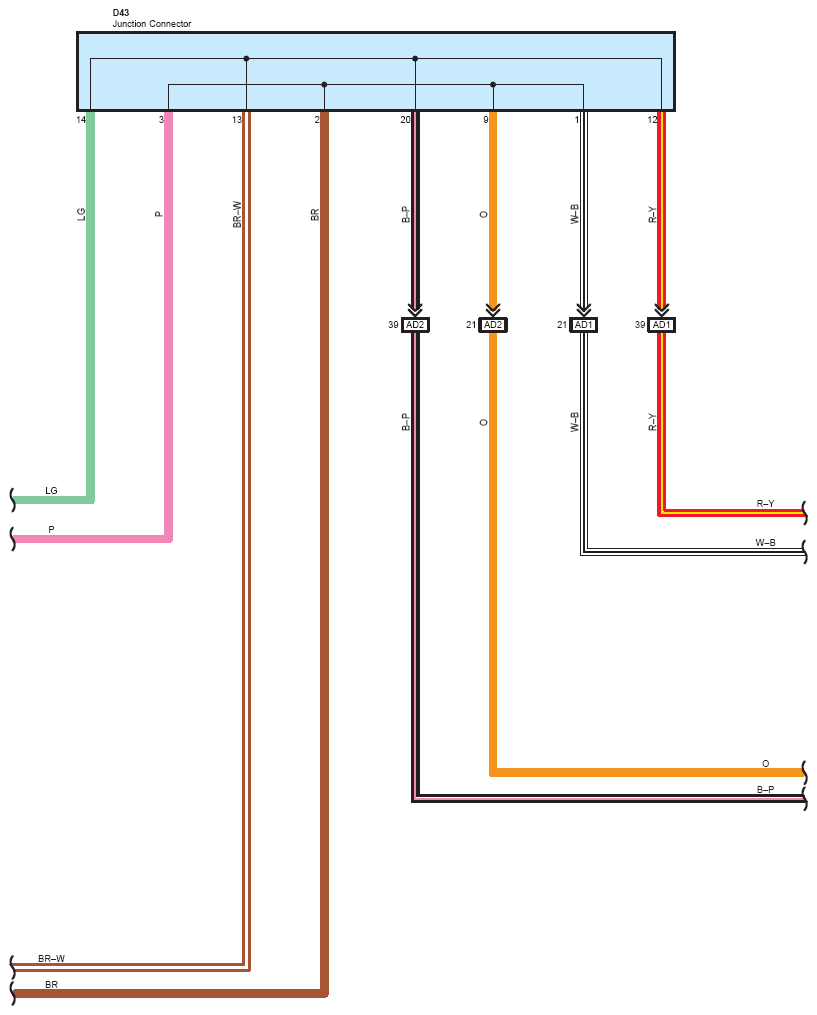

Fig 10: Combination Meter (10 Of 11)
G12191868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

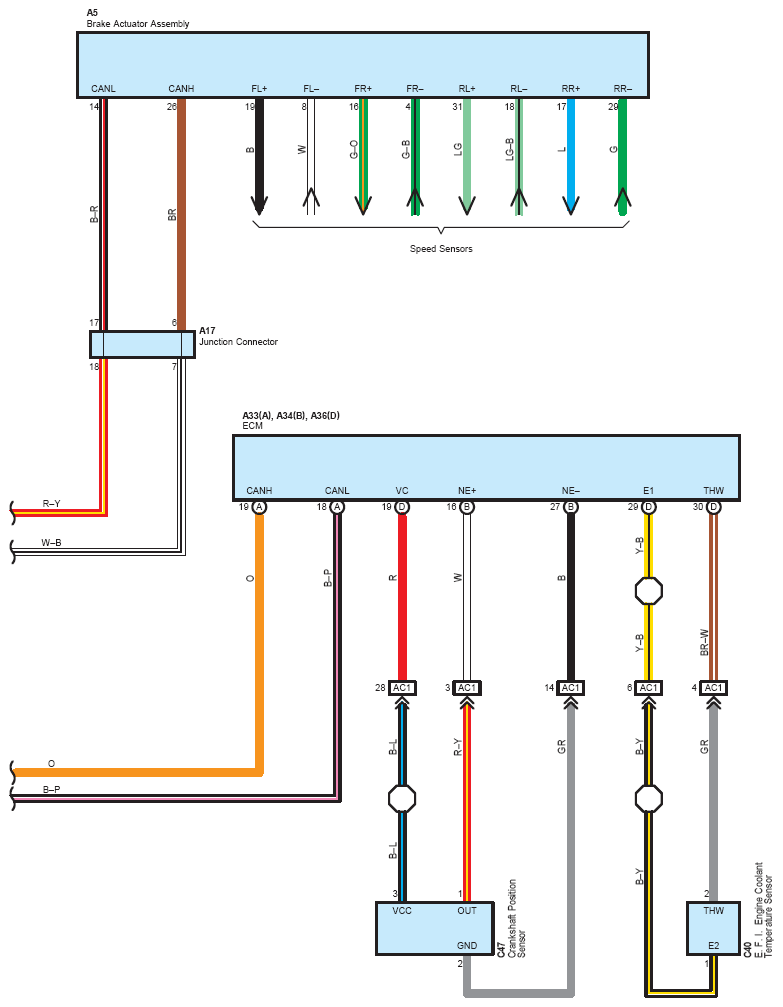

Fig 11: Combination Meter (11 Of 11)
G12191869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
