Engine Immobiliser System (W/O Smart Key System): Connectors

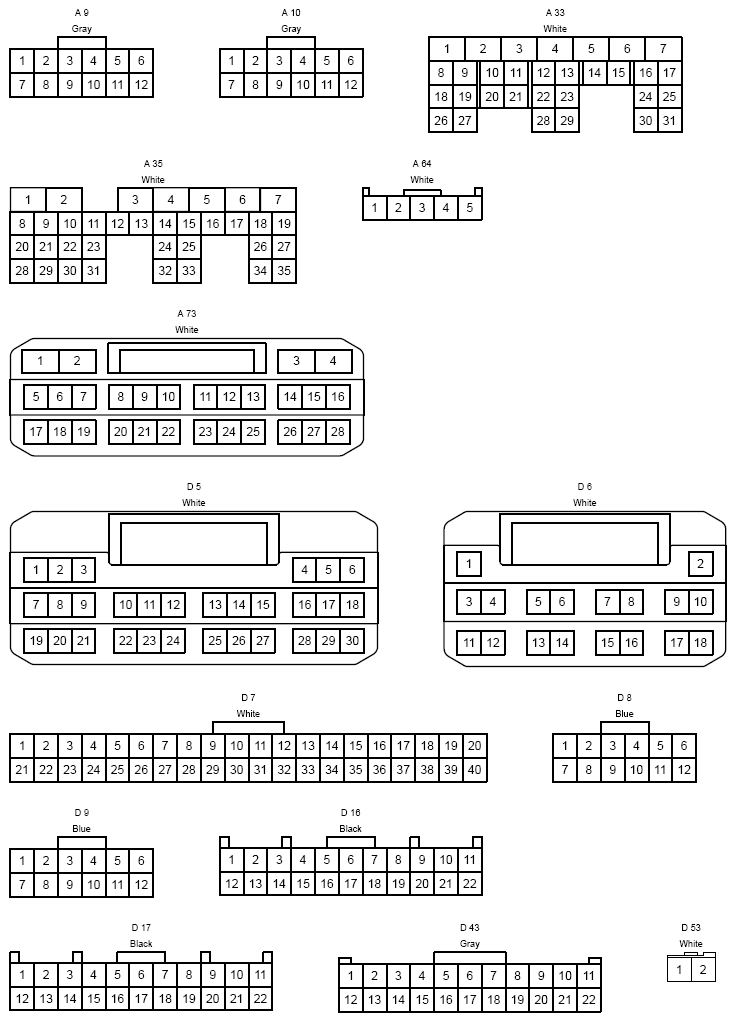

Fig 1: Connectors (1 Of 2)
G12191933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

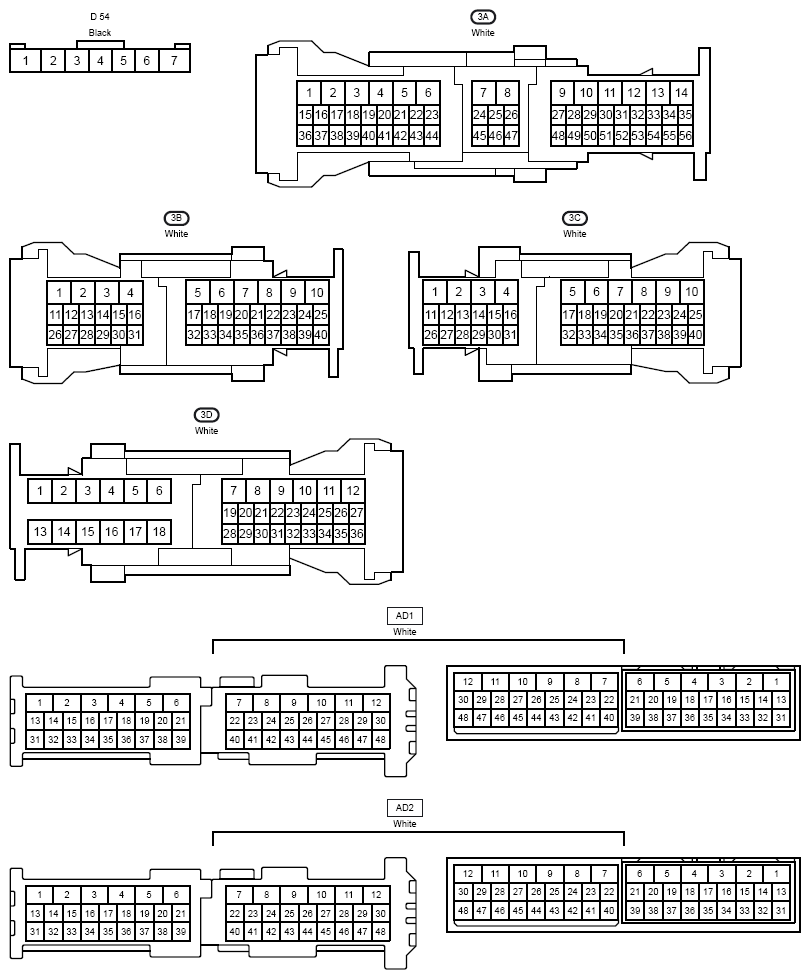

Fig 2: Connectors (2 Of 2)
G12191934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
