Multiplex Communication System (CAN): Connectors

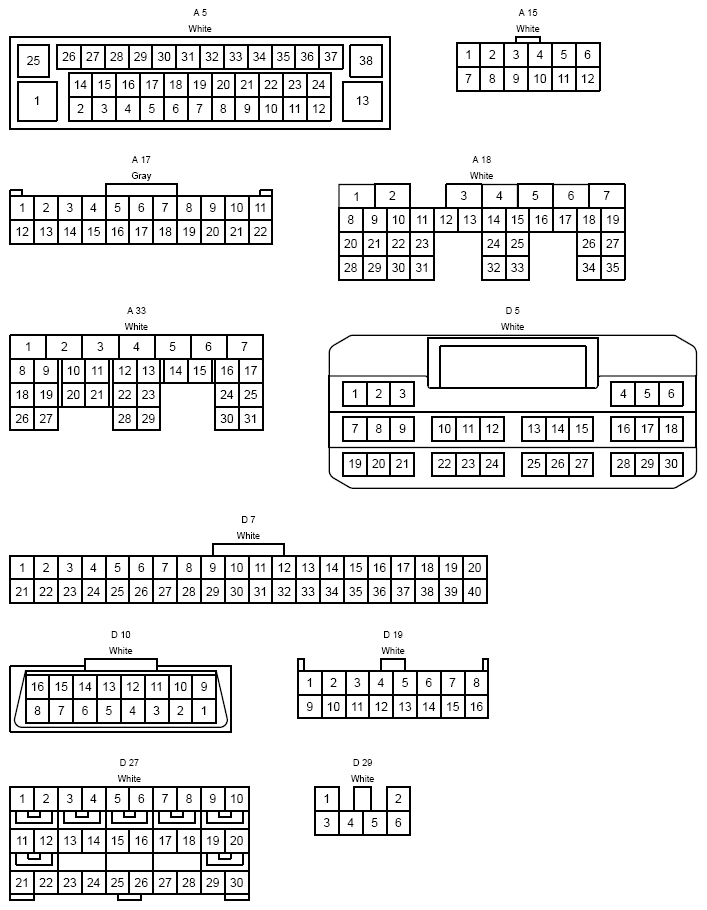

Fig 1: Connectors (1 Of 2)
G12192050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

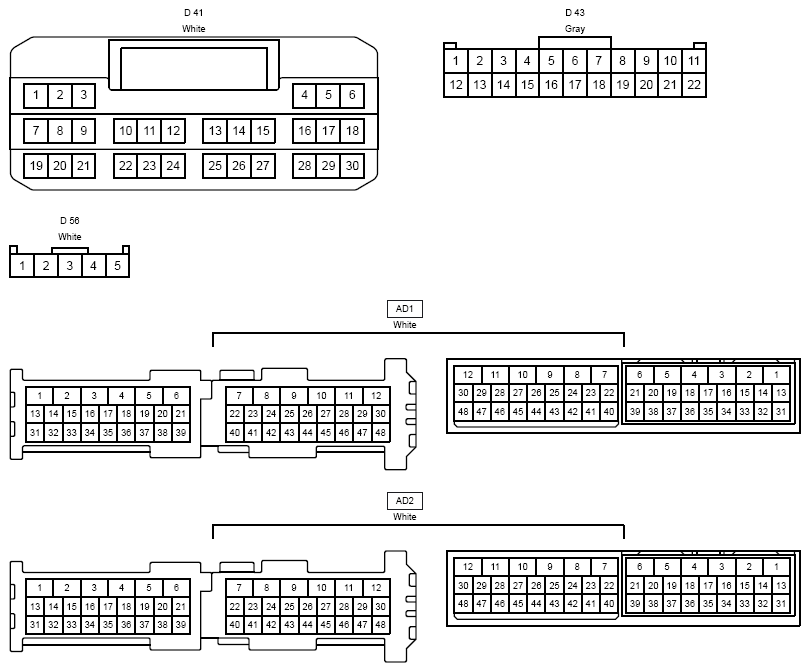

Fig 2: Connectors (2 Of 2)
G12192051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
