Removal [06/2016 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 1

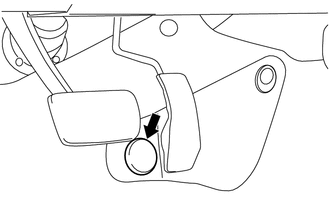

  2. REMOVE ACCELERATOR PEDAL ROD STOPPER
    1. Remove the accelerator pedal rod stopper.
      GTY393112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

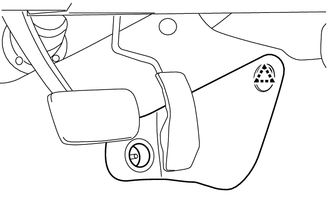

  3. REMOVE ACCELERATOR PEDAL ROD COVER
    1. Disengage the clip, and remove the accelerator pedal rod cover.
      GTY391526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

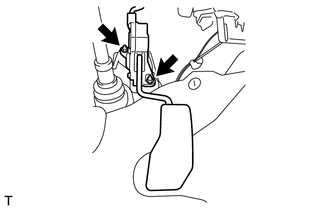

  4. REMOVE ACCELERATOR PEDAL ASSEMBLY
    GTY388987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the accelerator pedal assembly connector.
    2. Remove the 2 nuts and the accelerator pedal assembly.
