Removal [06/2016 - ]: Procedure

  1. DISCONNECT BATTERY NEGATIVE TERMINAL

    Refer to PROCEDURE - Step 1

  2. REMOVE AIR FUEL RATIO SENSOR
    1. Disconnect the air fuel ratio sensor connector.

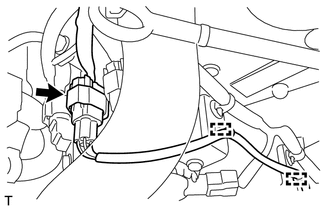

      GTY388991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps.
    3. Using SST, remove the air fuel ratio sensor from the exhaust manifold.

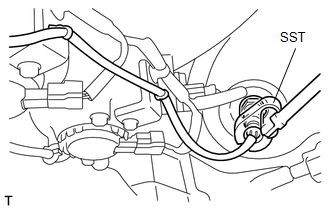

      GTY717262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
