Removal [06/2016 - ]: Procedure

  1. REMOVE FRONT TIRE RH
  2. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 1

  3. DISCONNECT REAR ENGINE UNDER COVER RH

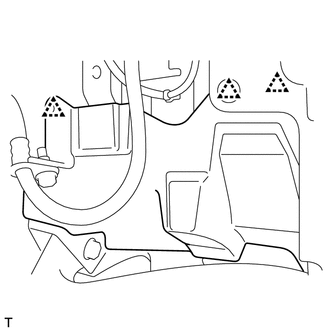

    1. Remove the 3 clips, and disconnect the rear engine under cover RH.
      GTY391527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE HEATED OXYGEN SENSOR

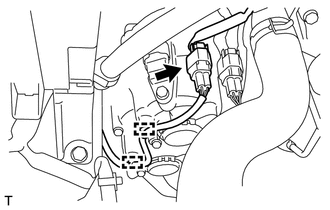

    1. Disconnect the oxygen sensor connector.
      GTY388995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps.

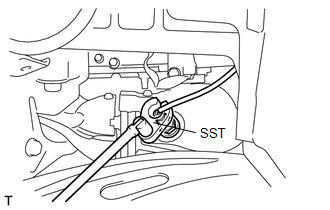

    3. Using SST, remove the oxygen sensor from the exhaust manifold assembly.
      GTY696270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
