Removal [06/2016 - ]: Procedure
- SET HOOD SUB-ASSEMBLY
Refer to PROCEDURE - Step 1 [06/2016 - 03/2017] , or refer to PROCEDURE - Step 1 [03/2017 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 1
- REMOVE FRONT SUSPENSION UPPER TO COWL BRACE SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 1
- REMOVE FRONT SUSPENSION UPPER TO COWL BRACE SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 2
- REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
Refer to PROCEDURE - Step 1
- DISCONNECT ENGINE WIRE

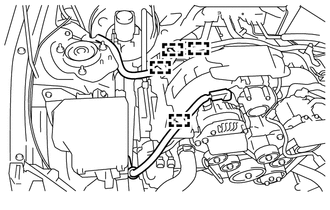

- Disengage the 4 clamps, and disconnect the engine wire.

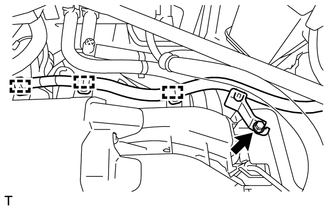

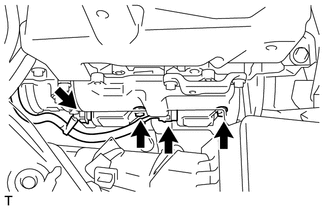

- Disengage the 3 clamps and wire harness clamp bracket mount bolt, and disconnect the engine wire.

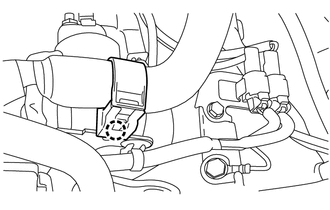

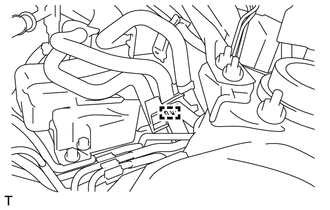

- Disengage the claw and disconnect the engine wire (for Manual Transmission).
- Disengage 2 clamps and disconnect the engine wire.TEXT IN ILLUSTRATION
*a LH Side *b RH Side
- Disengage the 4 clamps, and disconnect the engine wire.
- REMOVE EXHAUST MANIFOLD
(Refer to REMOVAL [06/2016 - ] )
- INSTALL ENGINE HANGER
Refer to PROCEDURE - Step 35 [06/2016 - 03/2017] , or refer to PROCEDURE - Step 36 [03/2017 - ]
- SET SST

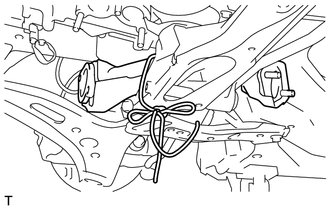

- Tie the front exhaust pipe sub-assembly onto the front suspension cross member sub-assembly using rope.
HINT:
This operation is necessary in order to prevent the front exhaust pipe sub-assembly from falling off.

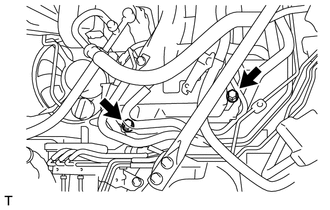

- Remove the 2 nuts.

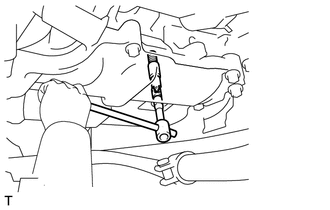

- Install the engine hanger with the bolt. (Refer to PROCEDURE - Step 35 [06/2016 - 03/2017]
, or refer to PROCEDURE - Step 36 [03/2017 - ]
)
Torque: 33 N*m (337 kgf*cm, 24 ft.*lbf)
- Hoist the engine assembly up with an engine sling device and a mini crane.

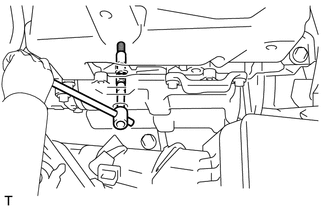

- Install the SST to between the engine mount and front.
- SST: 09250-53011
NOTE:Make sure not to install SST in a wrong way.
HINT:
- LH Side Part No. : 09250-53011L
- RH Side Part No. : 09250-53011R
- Tie the front exhaust pipe sub-assembly onto the front suspension cross member sub-assembly using rope.
- REMOVE INJECTOR COVER (for Bank 2)
- REMOVE IGNITION COIL ASSEMBLY (for Bank 2)
- Disconnect the 2 ignition coil connectors from the ignition coil assembly.
HINT:

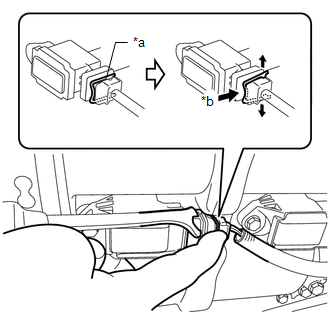

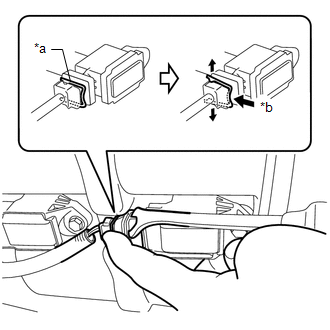

Slide and then disconnect the connector using a clip remover or the like while pushing the spring on the connector lock as shown in the illustration.
TEXT IN ILLUSTRATION*a Spring *b Push - Remove the 2 bolts and remove the 2 ignition coils.
- Disconnect the 2 ignition coil connectors from the ignition coil assembly.
- REMOVE SPARK PLUG (for Bank 2)

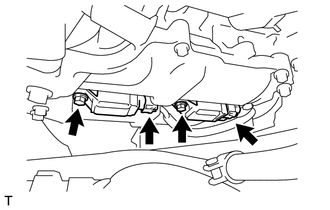

- REMOVE INJECTOR DRIVER
Refer to PROCEDURE - Step 2
- REMOVE IGNITION COIL ASSEMBLY (for Bank 1)
- Disconnect the 2 ignition coil connectors from the ignition coil assembly.
HINT:
Slide and then disconnect the connector using a clip remover or the like while pushing the spring on the connector lock as shown in the illustration.
TEXT IN ILLUSTRATION*a Spring *b Push - Remove the 2 bolts and remove the 2 ignition coils.
- Disconnect the 2 ignition coil connectors from the ignition coil assembly.
- REMOVE SPARK PLUG (for Bank 1)
