Inspection [06/2016 - ]: Procedure

  1. INSPECT THROTTLE WITH MOTOR BODY ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

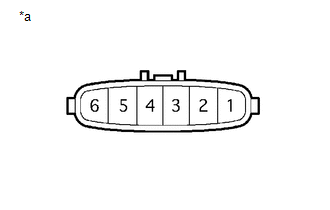

      GTY387295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Throttle with Motor Body Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 0.3 to 10 Ω

      If the result is not as specified, replace the throttle with motor body assembly.
