Removal [06/2016 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 1

  2. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  3. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 1

  4. REMOVE THROTTLE WITH MOTOR BODY ASSEMBLY

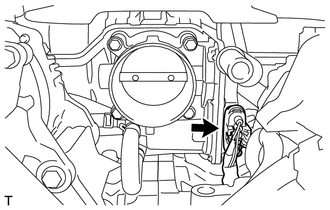

    1. Disconnect the throttle with motor body assembly connector.
      GTY720971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

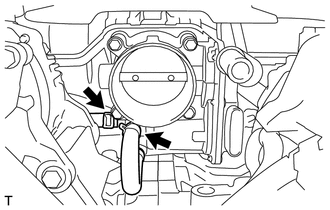

    2. Disconnect the 2 water by-pass hoses from the throttle with motor body assembly.
      GTY720970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

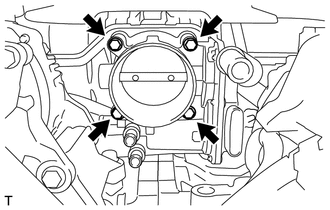

    3. Remove the 4 bolts and the throttle with motor body assembly from the intake manifold.
      GTY389012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the gasket from the intake manifold.
