Vehicle Identification And Serial Numbers [06/2016 - ]

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle body, on the plates and on the certification label as shown in the illustration.

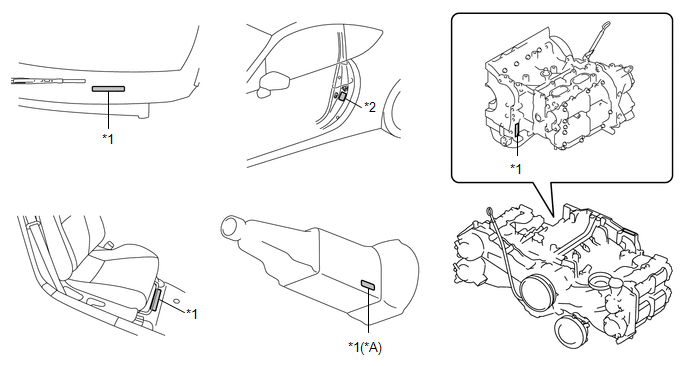

      Fig 1: Vehicle Identification Number Locations
      GTY694765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A Manual transmission - -
      *1 Vehicle Identification Number *2 Certification Label
  2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

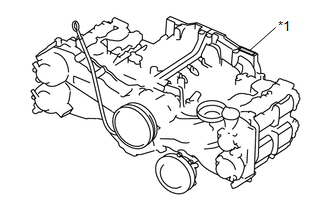

      Fig 2: Identifying Engine Serial Number Location
      GTY390858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 FA20 Engine Serial Number
    2. The transmission serial number is printed on the transmission number label.

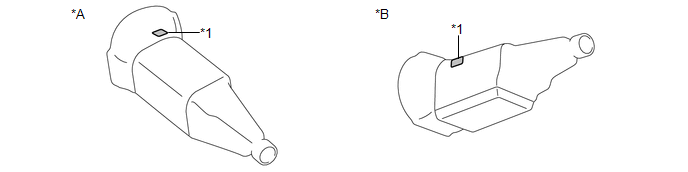

      Fig 3: Transmission Serial Number Location
      GTY388122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A TL70 *B TX6A
      *1 Transmission Number Label - -
