Terminals Of Ecu [06/2016 - ]

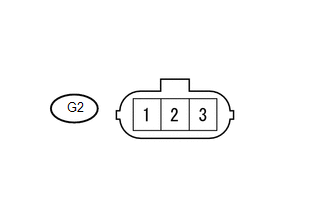

  1. OCCUPANT DETECTION ECU
    GTY737179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Terminal No. (Symbol) Wiring Color Terminal Description Condition Specification
    G2-2 - G2-3 Y-G - Y Airbag ECU assembly communication line Ignition switch ON Pulse generation
    G2-1 - Body ground G - Body ground Power source Ignition switch ON 11 to 14 V
