Installation [06/2016 - ]: Procedure

INSTALL LOWER STEERING WHEEL BOSS COVER
1. Engage the 4 claws to install the lower steering wheel boss cover to the steering wheel assembly.
INSTALL STEERING SHAKE DAMPER
1. Install the steering shake damper to the steering wheel assembly with the 2 screws.
ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 12 [06/2016 - 03/2017] , or refer to PROCEDURE - Step 12 [03/2017 - ]
INSTALL STEERING PAD SWITCH ASSEMBLY
Refer to INSTALLATION [06/2016 - ]
INSTALL CRUISE CONTROL MAIN SWITCH ASSEMBLY
Refer to INSTALLATION [06/2016 - ]
INSTALL SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) (for Automatic Transmission)
Refer to PROCEDURE - Step 1

INSTALL STEERING WHEEL ASSEMBLY

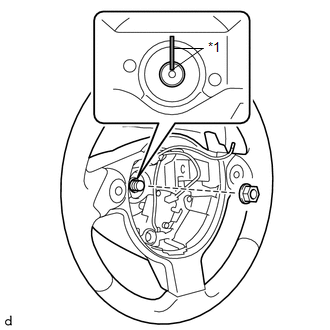

Install the steering wheel assembly aligning the matchmarks on the steering wheel assembly and steering column assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Matchmark

Install the steering wheel assembly set nut.
Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)
Connect the connectors to the spiral cable sub-assembly and steering wheel assembly.

INSTALL HORN BUTTON ASSEMBLY
Refer to PROCEDURE - Step 1
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
CHECK STEERING WHEEL CENTER POINT
INSPECT SRS WARNING LIGHT
(Refer to DIAGNOSIS SYSTEM [06/2016 - ] )
PERFORM VSC SENSOR NEUTRAL MEMORIZATION
Refer to CALIBRATION [06/2016 - ]
