Adjustment [06/2016 - 07/2018]: Procedure

  1. INSPECT TIRES

    Refer to PROCEDURE - Step 1

  2. MEASURE VEHICLE HEIGHT
    1. Bounce the vehicle up and down at the corners to stabilize the suspension before inspecting the vehicle height.

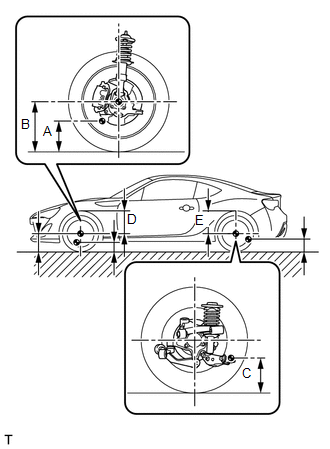

      GTY693743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      VEHICLE HEIGHT (UNLOADED VEHICLE)

      Tire Size Front B - A Rear C Front D Rear E
      215/45 R17 146 mm
      (5.75 in.)      		 225 mm
      (8.86 in.)      		 375 mm
      (14.76 in.)      		 372 mm
      (14.65 in.)
      P215/45 R17 146 mm
      (5.75 in.)      		 225 mm
      (8.86 in.)      		 375 mm
      (14.76 in.)      		 372 mm
      (14.65 in.)
      NOTE:
      • Perform the inspection while the vehicle is empty (with a spare tire, jack and tools on board, and with the fuel tank filled with fuel).
      • The standard value shown here is a value that is used for adjusting the wheel alignment and does not indicate the height of an actual vehicle.

      Measuring points

      A

      Ground clearance of front lower suspension arm set front bolt center

      B

      Ground clearance of front wheel center

      C

      Ground clearance of lower control arm set bolt center

      D

      Front wheel arch height of front wheel center

      E

      Rear wheel arch height of rear wheel center

  3. INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
    NOTE:

    Perform the inspection while the vehicle is empty (with a spare tire, jack and tools on board, and with the fuel tank filled with fuel).

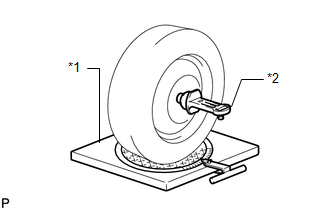

    GTY310774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put the front wheel on the center of the alignment tester.
      TEXT IN ILLUSTRATION

      *1 Alignment tester
      *2 Camber-Caster-Steering Axis Inclination Gauge
    2. Remove the wheel cap.
    3. Set the camber-caster-steering axis inclination gauge at the center of the axle hub or drive shaft.
    4. Inspect the camber, caster and steering axis inclination.

      Standard Dimension (Unloaded Vehicle)

      Camber Caster
      (Reference)      		 Steering Axis Inclination
      (Reference)
      0 +/- 45'
      (0 +/- 0.75°)      		 5°54'
      (5.90°)      		 15°31'
      (15.52°)
      NOTE:
      • Perform the inspection while the vehicle is empty (with a spare tire, jack and tools on board, and with the fuel tank filled with fuel).
      • The tolerance for the difference between the left and right wheels is 45' (0.75°) or less for both the camber.
    5. Remove the camber-caster-steering axis inclination gauge and attachment.
    6. Install the wheel cap.

      If the caster and steering axis inclination are not within the specified values after the camber has been correctly adjusted, recheck the suspension parts for damage and wear.

  4. ADJUST CAMBER
    NOTE:

    Inspect toe-in after the camber has been adjusted.

    1. Remove the front wheel.

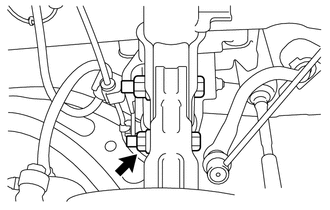

    2. Loosen the lower mounting bolt and nut of the front shock absorber assembly and steering knuckle.
      GTY384837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

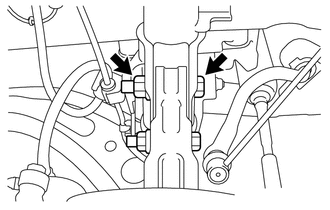

    3. Replace the upper mounting bolt of the front shock absorber assembly and steering knuckle with a service bolt. (Part No.: SU003-02818)
      GTY385514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Insert the bolt from the rear side of the vehicle.

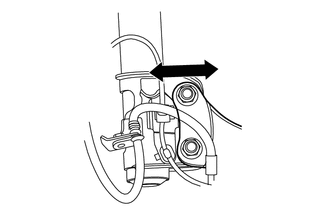

    4. Pivot the lower mounting bolt to move the front shock absorber assembly and steering knuckle, and use the play between the bolt and bolt holds of the steering knuckle and front shock absorber assembly to adjust the camber.
      GTY384836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Left-right tolerance for camber is to be 0°45' (0.75°) or less.

      HINT:

      The range that can be adjusted by replacing bolts is 0°+/- 45' (0°+/- 0.75°).

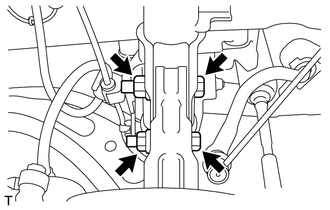

    5. Tighten the 2 bolts and 2 new nuts.
      GTY688295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 155 N*m (1581 kgf*cm, 114 ft.*lbf)

    6. Install the front wheel.

      Torque: 120 N*m (1224 kgf*cm, 89 ft.*lbf)

    7. Lower the vehicle and bounce it up and down several times to stabilize the front suspension.
    8. Check the camber.
    9. Check the toe-in.
  5. INSPECT TOE-IN
    1. Bounce the vehicle up and down at the corners to stabilize the suspension.
    2. Release the parking brake and move the shift lever to the neutral position (for manual transmission).
    3. Release the parking brake and move the shift lever to N (for Automatic transmission).
    4. Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step A)
    5. Put tread center marks on the rearmost points of the front wheels and measure the distance between the marks (dimension B).
      GTY317487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Tread Center Mark
      *b Dimension B
      Front of the Vehicle
    6. Slowly push the vehicle straight ahead to cause the front wheels to rotate 180°. Use the front tire valve as a reference point.

      HINT:

      Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from Step A again.

    7. Measure the distance between the tread center marks on the front side of the wheels (dimension A).
      GTY323290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Dimension A
      Front of the Vehicle

      Standard Dimension (Unloaded Vehicle)

      Specified Condition
      C + D: 0°00' +/- 0°11' (0.00° +/- 0.19°)
      B - A: 0 +/- 3.0 mm (0 +/- 0.1181 in.)

      HINT:

      Measure "B - A" only when "C + D" cannot be measured.

      If the toe-in is not within the specified value, adjust it at the rack ends.

  6. ADJUST TOE-IN

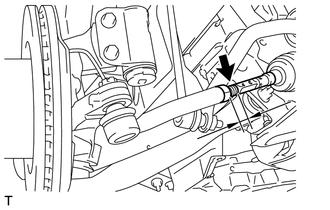

    GTY391132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the thread lengths of the right and left rack ends.

      Standard

      Difference in thread length of 2.0 mm (0.0787 in.) or less

    2. Remove the rack boot set clips.
    3. Loosen the tie rod end lock nuts.
    4. Adjust the rack ends if the difference in thread length between the right and left rack ends is not within the specified range.
      1. If the toe-in measurement is greater than the specified range (too much toe-out), extend the shorter rack end so that the length difference is within the specified range.
      2. If the toe-in measurement is less than the specified range (too much toe-in), shorten the longer rack end so that the length difference is within the specified range.
      3. Measure the toe-in.
    5. Turn the right and left rack ends by an equal amount to adjust the toe-in.
    6. Make sure that the thread lengths of the right and left rack ends are the same.
    7. Tighten the tie rod end lock nuts.

      Torque: 85 N*m (867 kgf*cm, 63 ft.*lbf)

    8. Place the steering rack boots on the seats and install the steering rack boot clips.

      HINT:

      Make sure that the steering rack boots are not twisted.

  7. INSPECT WHEEL ANGLE
    1. Put tread center marks on the rearmost points of a turning radius gauge.
      GTY389139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Inside
      *b Outside
      Front of the Vehicle
    2. Turn the steering wheel fully to the left and right and measure the turning angle.

      HINT:

      Inspect while the vehicle is unloaded.

      Wheel Turning Angle (Unloaded Vehicle)

      Inside Wheel
      (Reference)      		 Outside Wheel
      (Reference)
      36°54'
      (43.90°)      		 31°12'
      (31.20°)
  8. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  9. VSC SENSOR NEUTRAL MEMORIZATION

    (Refer to CALIBRATION [06/2016 - ] )
