Certification ECU Communication Stop Mode [03/2017 - ]: Procedure
- CHECK FOR OPEN IN CAN BUS LINES (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) BRANCH LINE)
- Disconnect the cable from the negative (-) battery terminal.
- Disconnect the D41 and D48 certification ECU (smart key ECU assembly) connectors.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

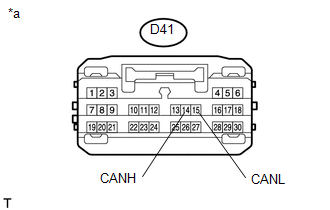

Tester Connection Condition Specified Condition D41-14 (CANH) - D41-15 (CANL) Cable disconnected from negative (-) battery terminal 57 to 63 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Certification ECU (Smart Key ECU Assembly))
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) ASSEMBLY)
Result:
OK
See step 2
- CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

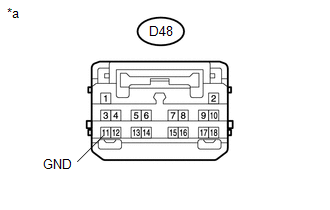

Tester Connection Condition Specified Condition D48-11 (GND) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Certification ECU (Smart Key ECU Assembly)) - Connect the cable to the negative (-) battery terminal.

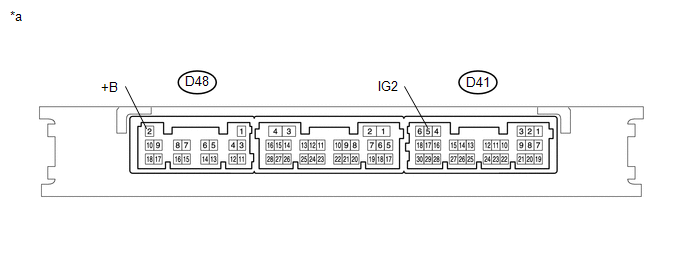

- Connect the D41 and D48 certification ECU (smart key ECU assembly) connectors.TEXT IN ILLUSTRATION
*a Component with harness connected
(Certification ECU (Smart Key ECU Assembly))- - - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition D41-5 (IG2) - Body ground Engine switch on (IG) 11 to 14 V D48-2 (+B) - Body ground Engine switch off 11 to 14 V
Result:
OK
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to REMOVAL [03/2017 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
