Installation [06/2016 - 03/2017]: Procedure

INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

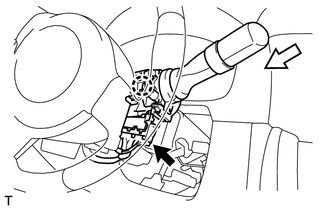

1. Engage the claw and install the windshield wiper switch assembly as shown in the illustration.
2. Connect each connector.
INSTALL UPPER STEERING COLUMN COVER
1. Engage the 4 claws and install the upper steering column cover.
INSTALL LOWER STEERING COLUMN COVER
1. Engage the 6 claws and install the lower steering column cover.
2. While turning the steering wheel assembly to the right and left, install the 2 screws.
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
INSTALL UPPER INSTRUMENT PANEL METER ORNAMENT
Refer to PROCEDURE - Step 5
INSTALL METER HOOD SUB-ASSEMBLY
Refer to PROCEDURE - Step 6
INSTALL INSTRUMENT PANEL ORNAMENT (w/ Large Ornament Panel)
Refer to PROCEDURE - Step 14
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Large Ornament Panel)
Refer to PROCEDURE - Step 15
INSTALL INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 8
