Power Window Control System - Diagnostic Codes & Symptom Tests
>>
Power Window Control System
>>
DTC B2313: Driver Side Glass Position Initialization Incomplete; DTC B2316: Passenger Side Glass Position Initialization Incomplete [06/2016 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

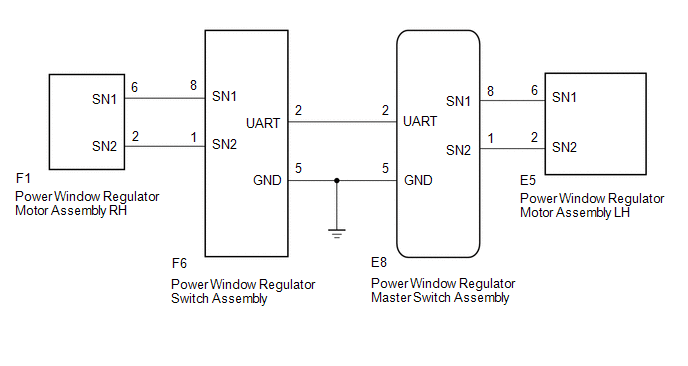

DTC B2313: Driver Side Glass Position Initialization Incomplete; DTC B2316: Passenger Side Glass Position Initialization Incomplete [06/2016 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
