VC Output Circuit [06/2016 - ]: Wiring Diagram

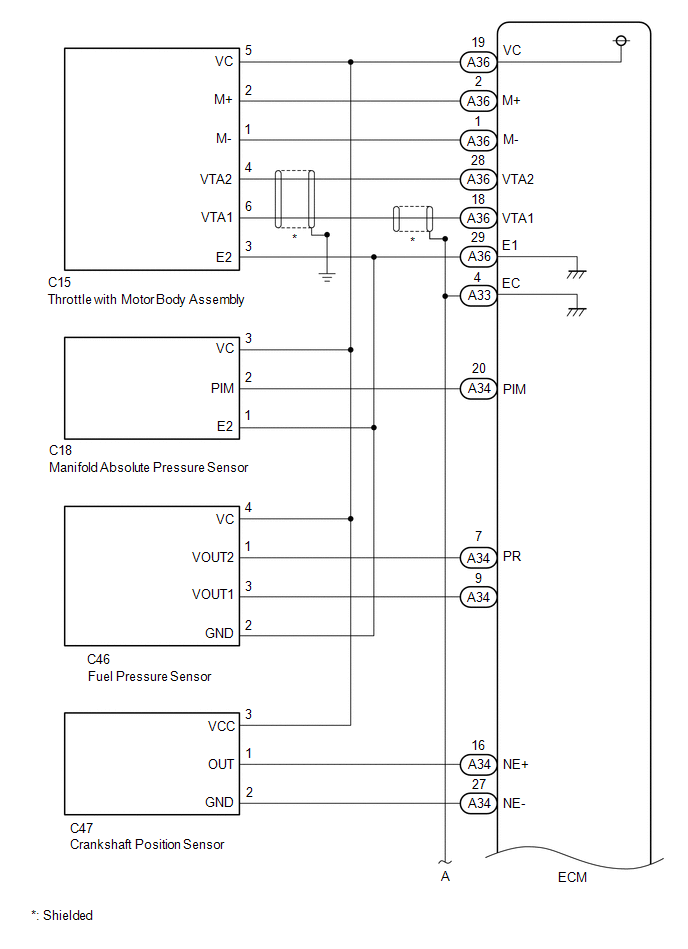

GTY707514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

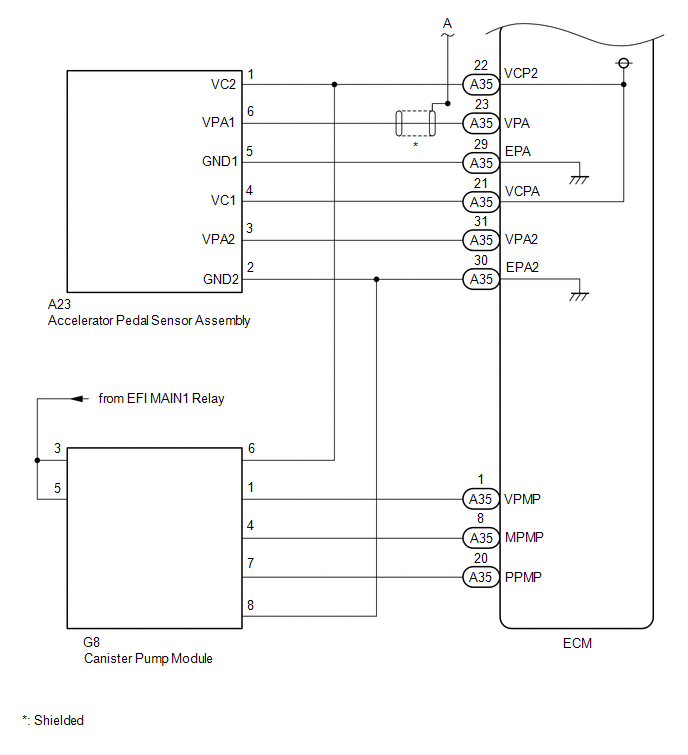

GTY712762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
