Components [03/2017 - ]

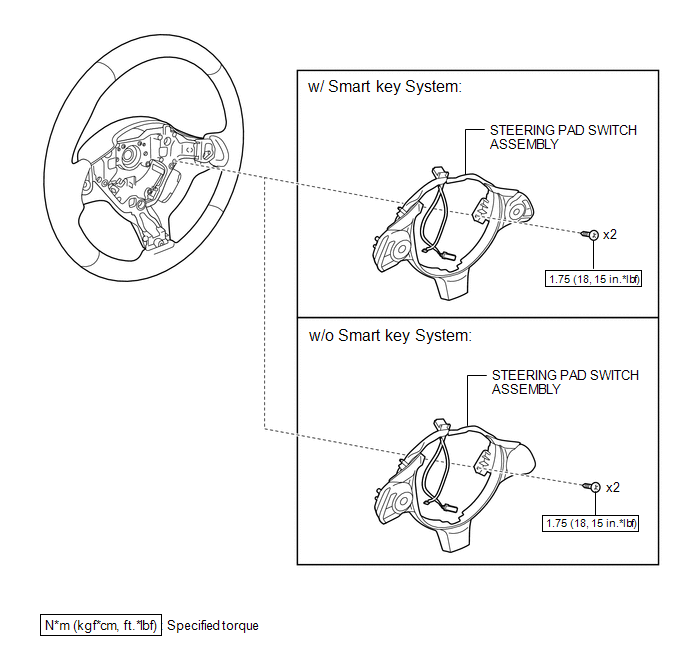

Fig 1: Steering Pad Switch Replacement Components With Torque Specifications
GTY727353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
