System Diagrams

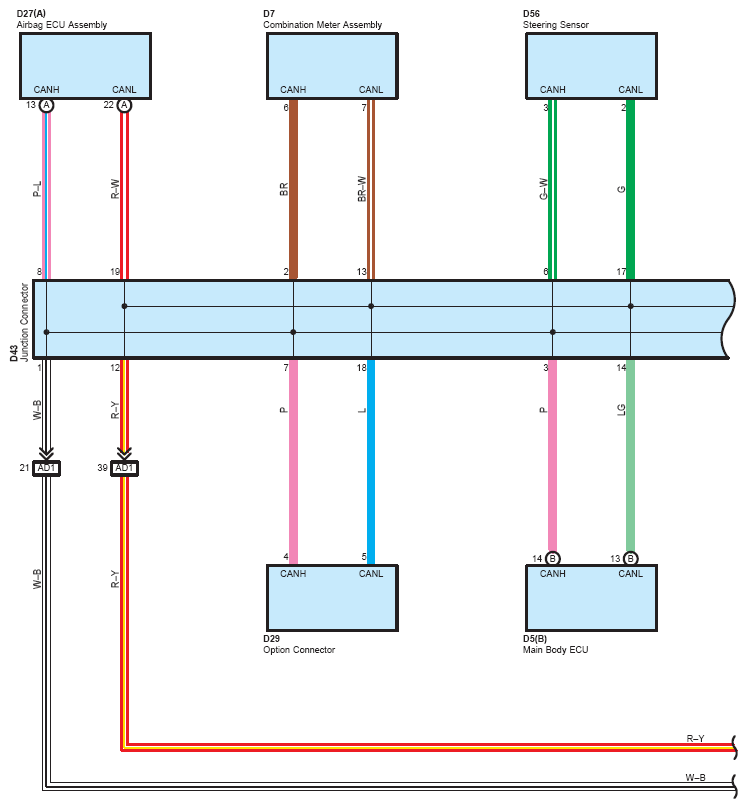

Fig 1: Multiplex Communication System (CAN) (1 Of 3)
G12192047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

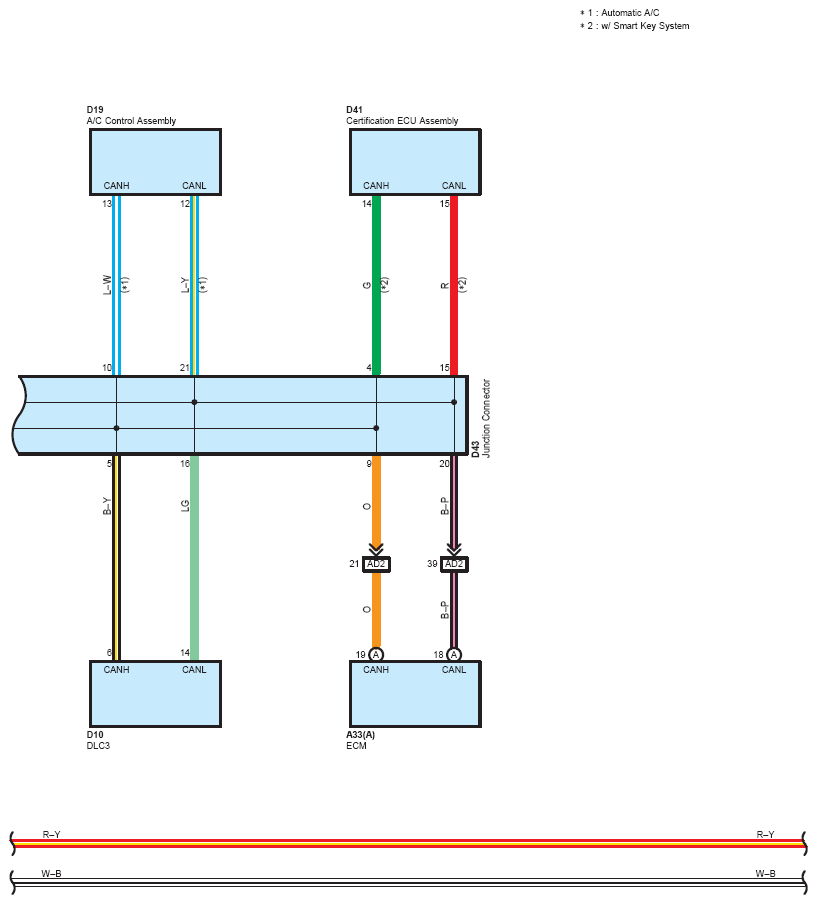

Fig 2: Multiplex Communication System (CAN) (2 Of 3)
G12192048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

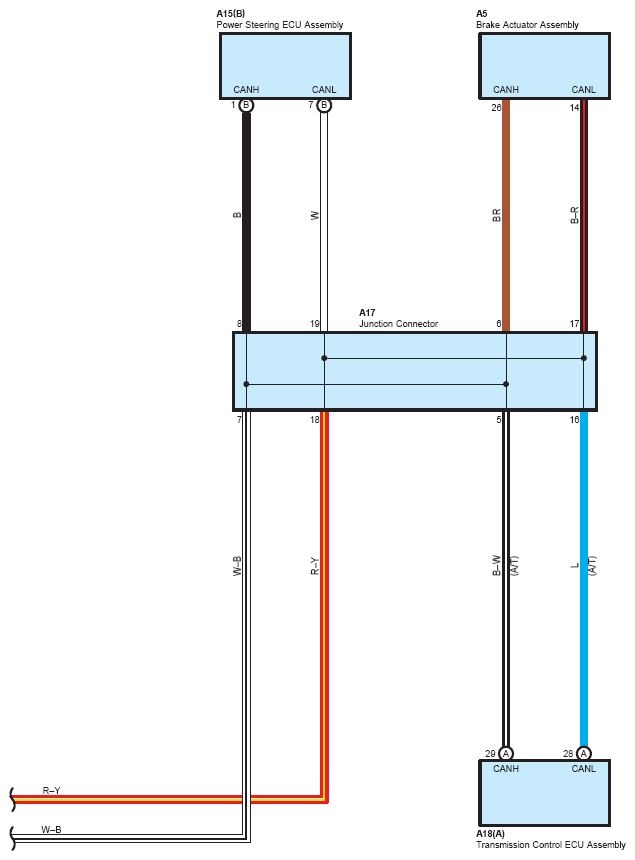

Fig 3: Multiplex Communication System (CAN) (3 Of 3)
G12192049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
