Components [06/2016 - ]

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications (1 Of 2)
GTY699427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

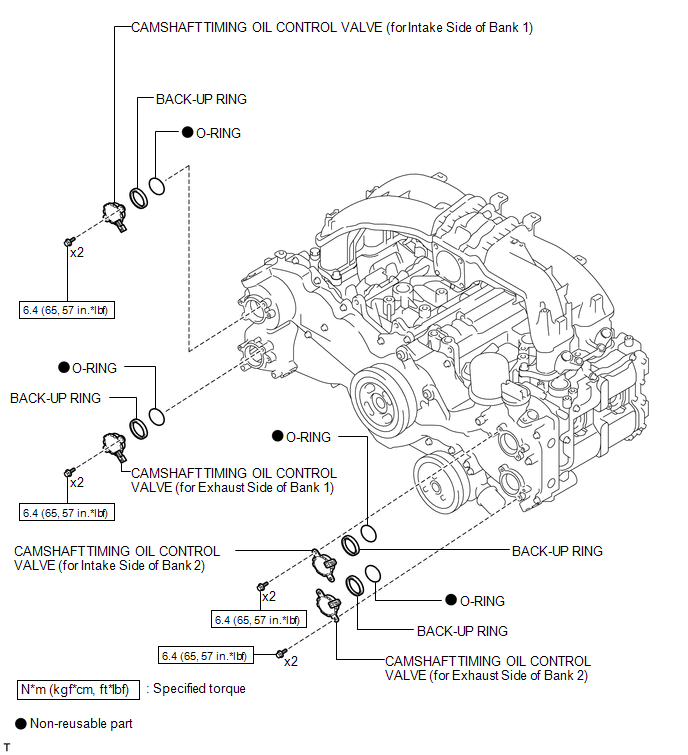

Fig 2: Camshaft Oil Control Valve Replacement Components With Torque Specifications (2 Of 2)
GTY701934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
