Removal [06/2016 - ]: Procedure
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 1
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY (for Automatic Transmission)
Refer to PROCEDURE - Step 10
- REMOVE MANIFOLD ABSOLUTE PRESSURE SENSOR

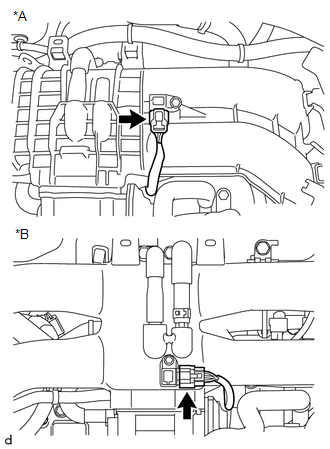

- Disconnect the manifold absolute pressure sensor connector.TEXT IN ILLUSTRATION

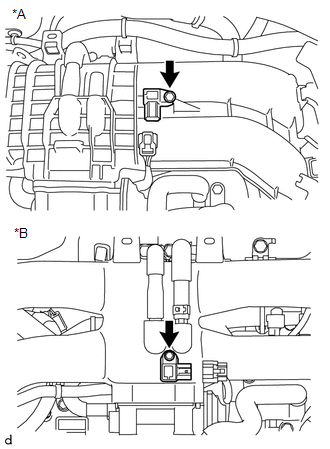

*A for Automatic Transmission *B for Manual Transmission - Remove the bolt and manifold absolute pressure sensor.TEXT IN ILLUSTRATION
*A for Automatic Transmission *B for Manual Transmission - Remove the O-ring from the manifold absolute pressure sensor.
- Disconnect the manifold absolute pressure sensor connector.
