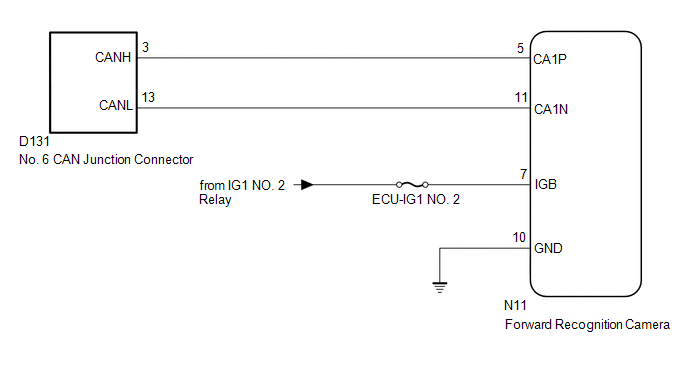

Front Camera Module Communication Stop Mode [10/2015 - ]: Wiring Diagram

GTY565846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
