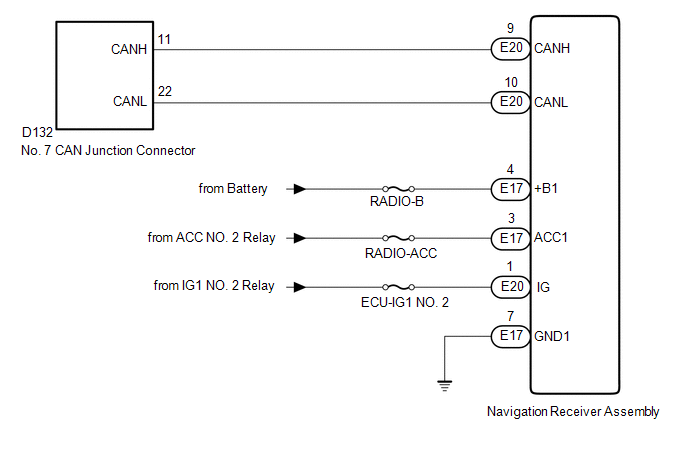

Navigation Receiver Assembly Communication Stop Mode [10/2015 - ]: Wiring Diagram

GTY602842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
