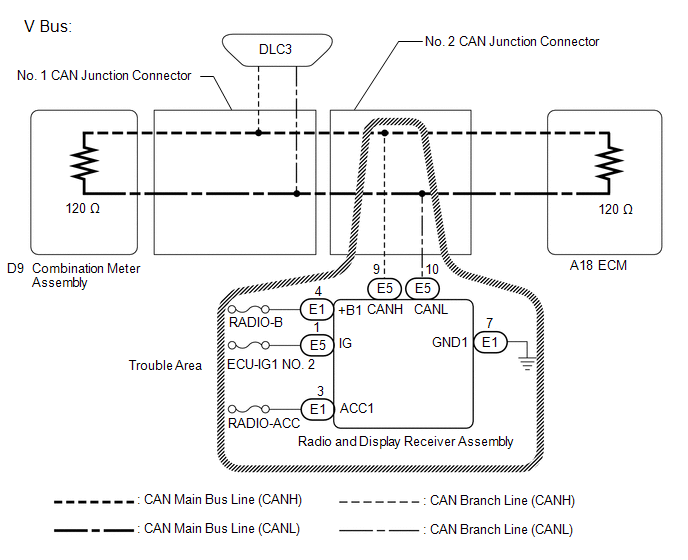

Audio Receiver Assembly Communication Stop Mode [10/2014 - ]: Wiring Diagram

GTY596160

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
