Steering Angle Sensor Communication Stop Mode [10/2014 - 10/2015]: Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the D21 steering sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION

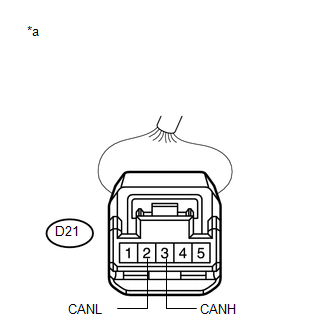

   *a	Front view of wire harness connector (to Steering Sensor)

3. Measure the resistance according to the value (s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D21-3 (CANH) - D21-2 (CANL)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (STEERING SENSOR)

OK

See step  2

1. Measure the resistance according to the value (s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION

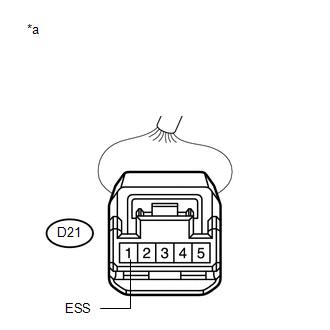

   *a	Front view of wire harness connector (to Steering Sensor)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D21-1 (ESS) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

2. Connect the cable to the negative (-) battery terminal.
3. Measure the voltage according to the value (s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION

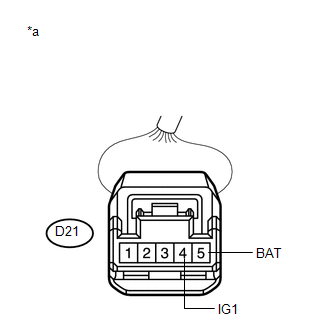

   *a	Front view of wire harness connector (to Steering Sensor)

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   D21-4 (IG) - Body ground	Engine switch on (IG)	11 to 14 V
   D21-5 (BAT) - Body ground	Always	11 to 14 V

OK

REPLACE STEERING SENSOR

Refer to REMOVAL [10/2014 - ] )

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
