CAN COMMUNICATION SYSTEM (W/O Central Gateway ECU)
>>
DTC U1002: Lost Communication with Gateway Module (Sensor Bus) ; DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor [10/2014 - 10/2015]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

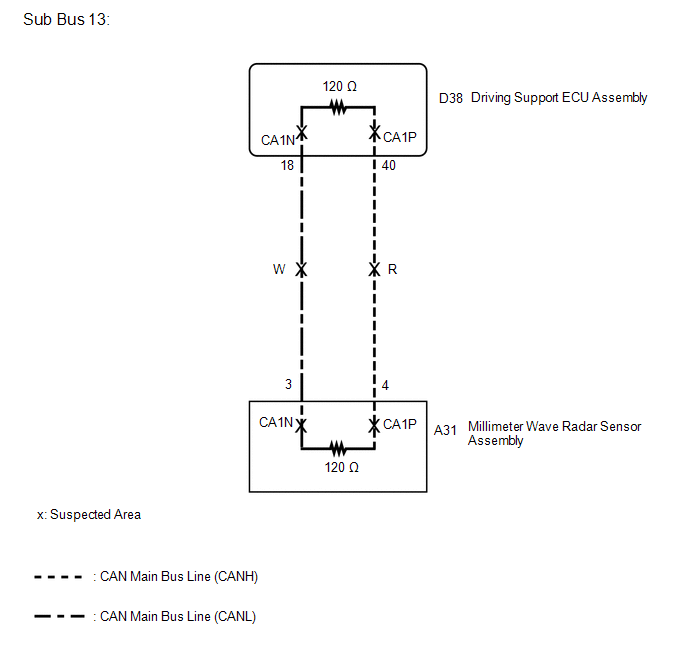

DTC U1002: Lost Communication with Gateway Module (Sensor Bus) ; DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor [10/2014 - 10/2015]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
