System Diagrams

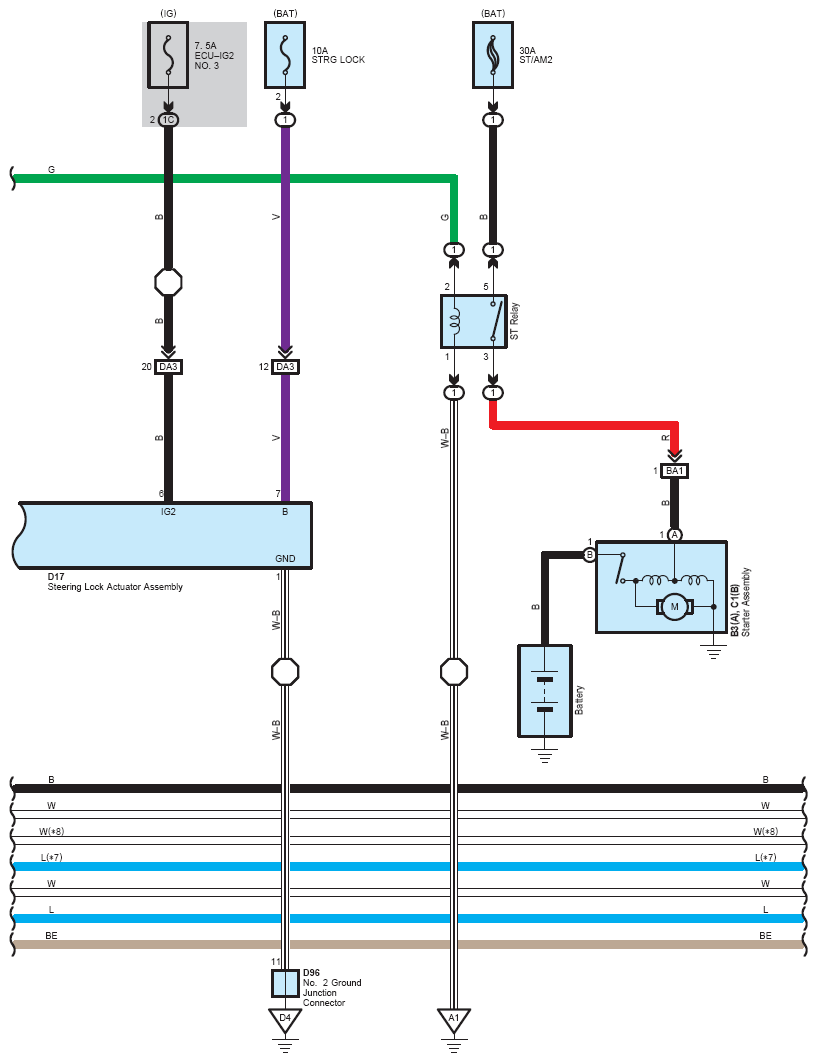

Fig 1: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (1 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

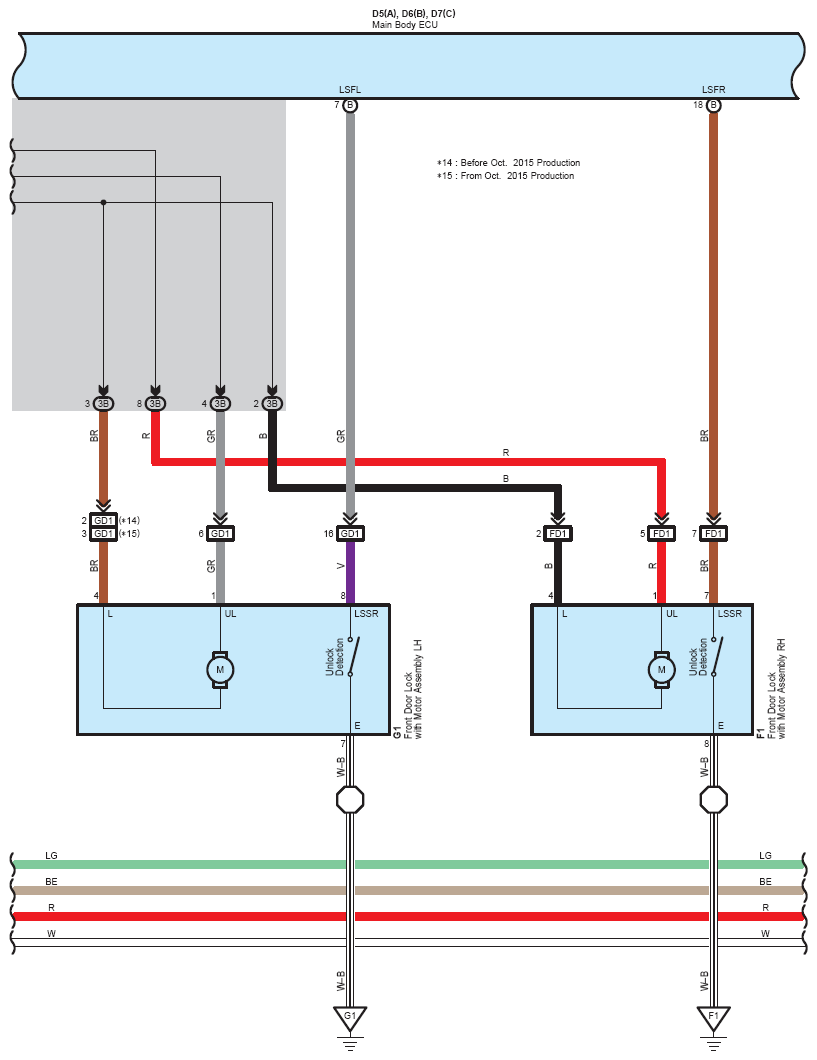

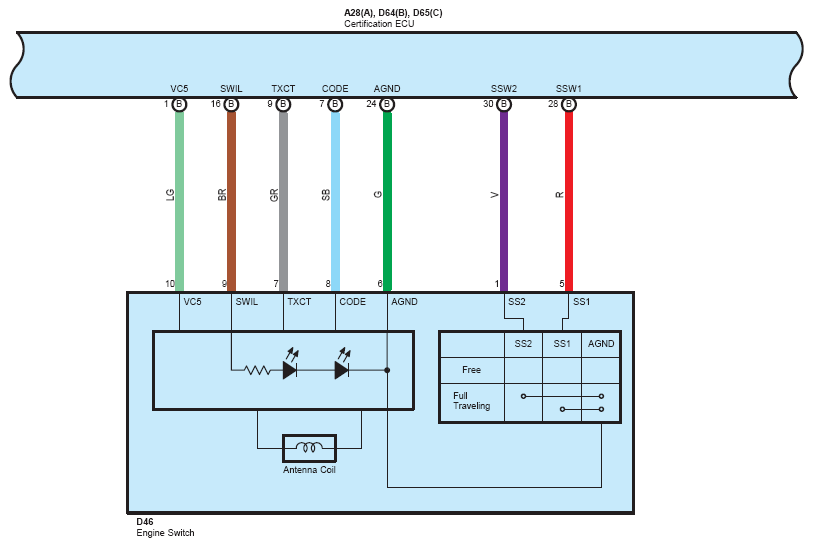

Fig 2: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (2 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

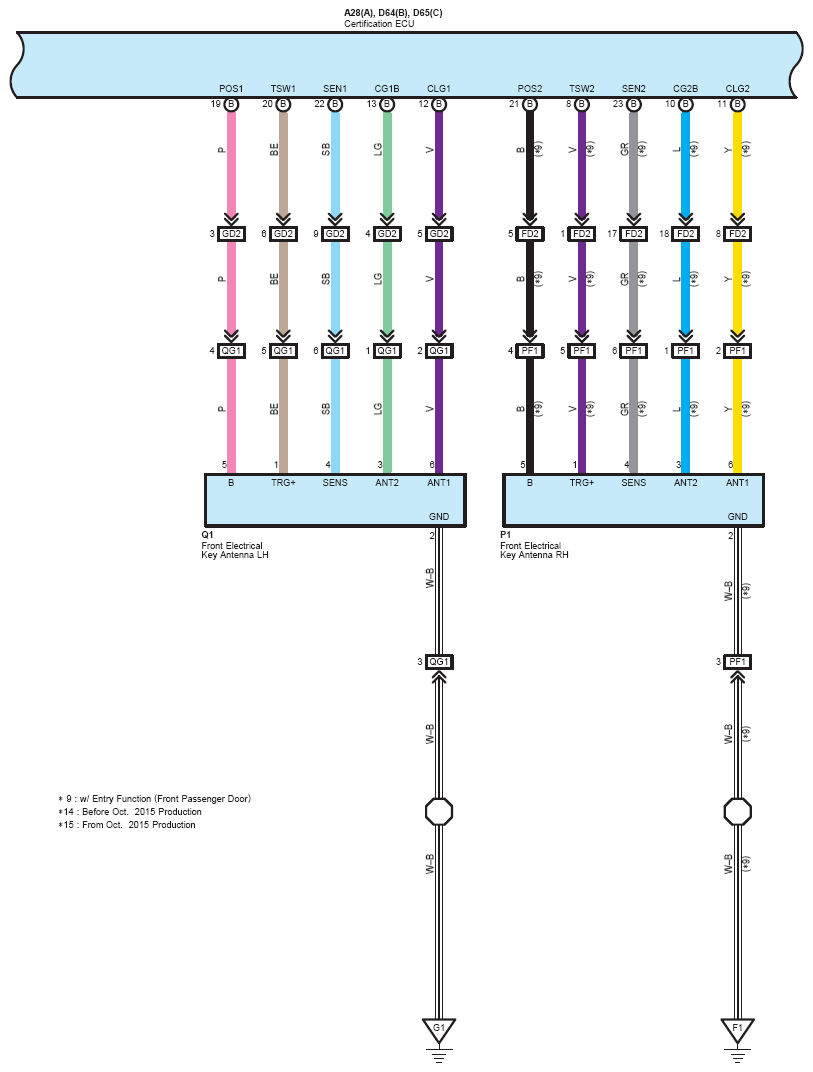

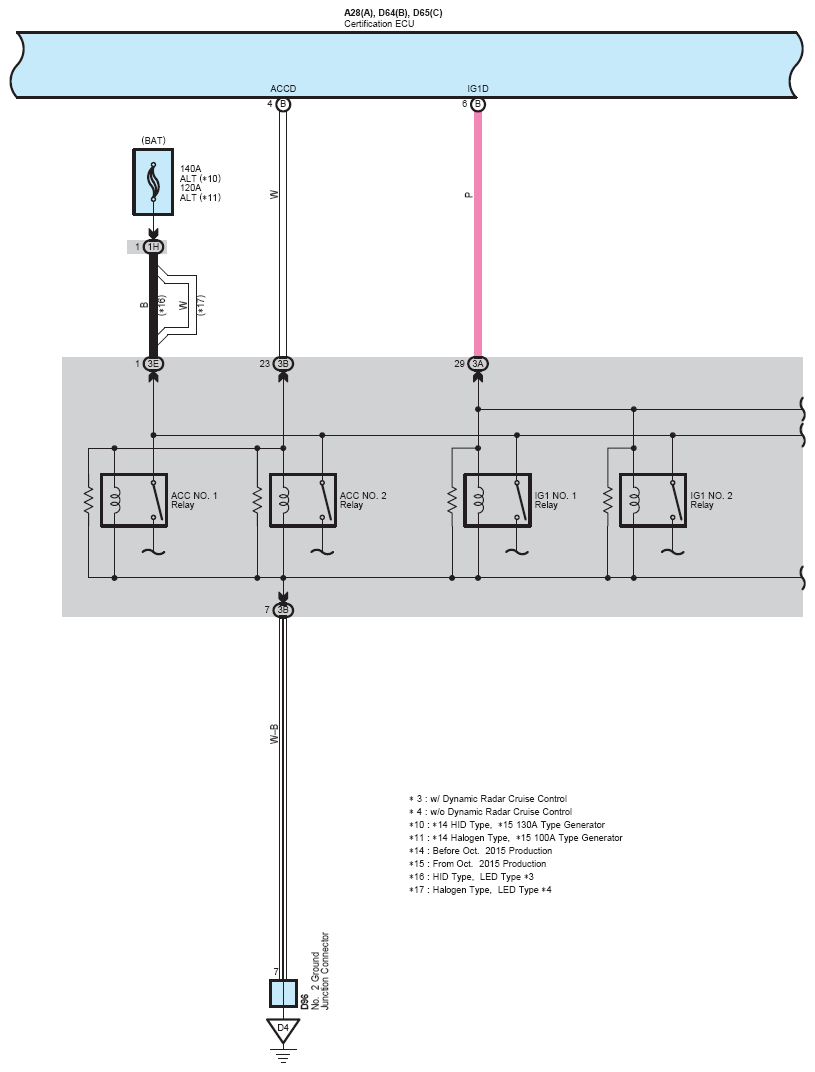

Fig 3: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (3 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

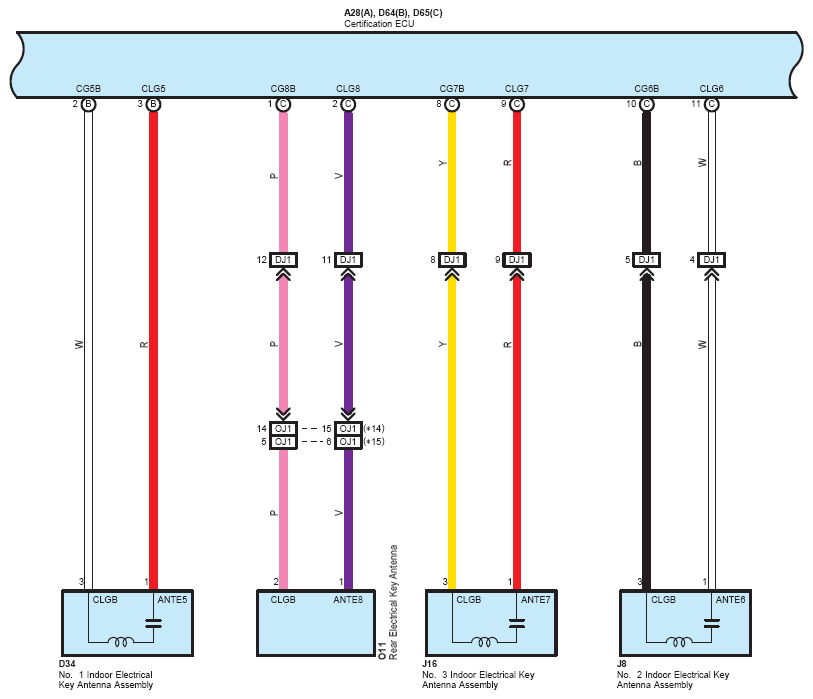

Fig 4: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (4 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

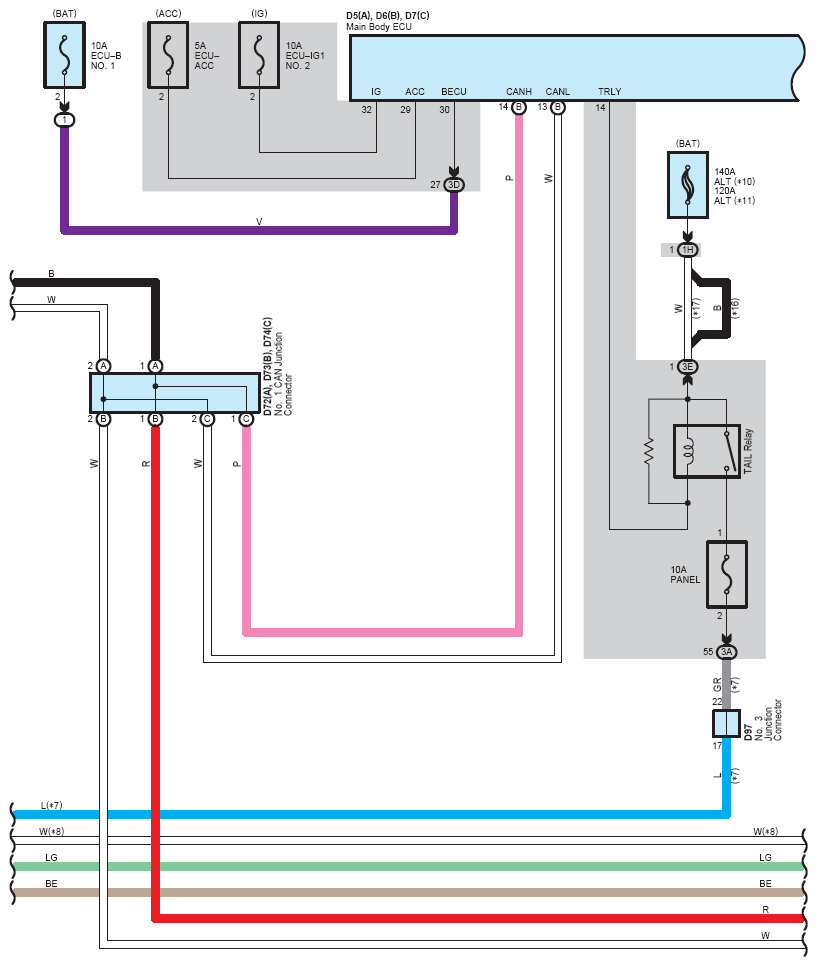

Fig 5: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (5 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

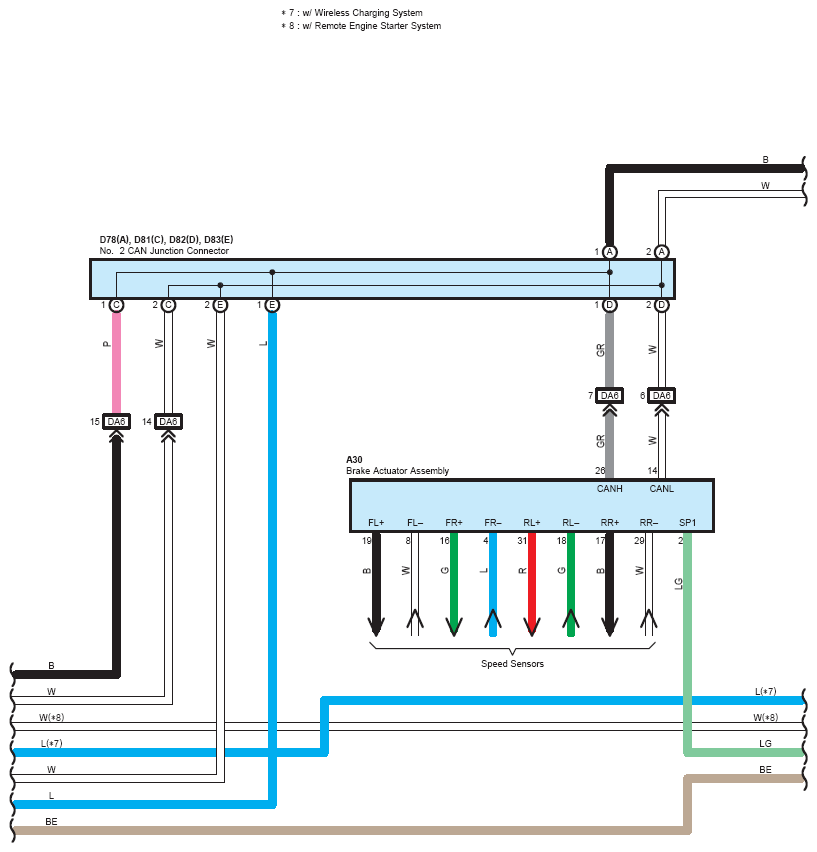

Fig 6: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (6 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

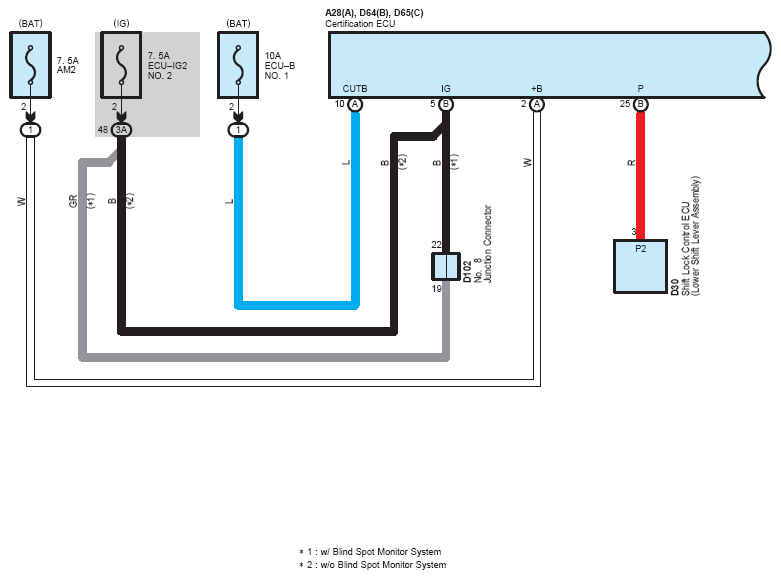

Fig 7: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (7 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

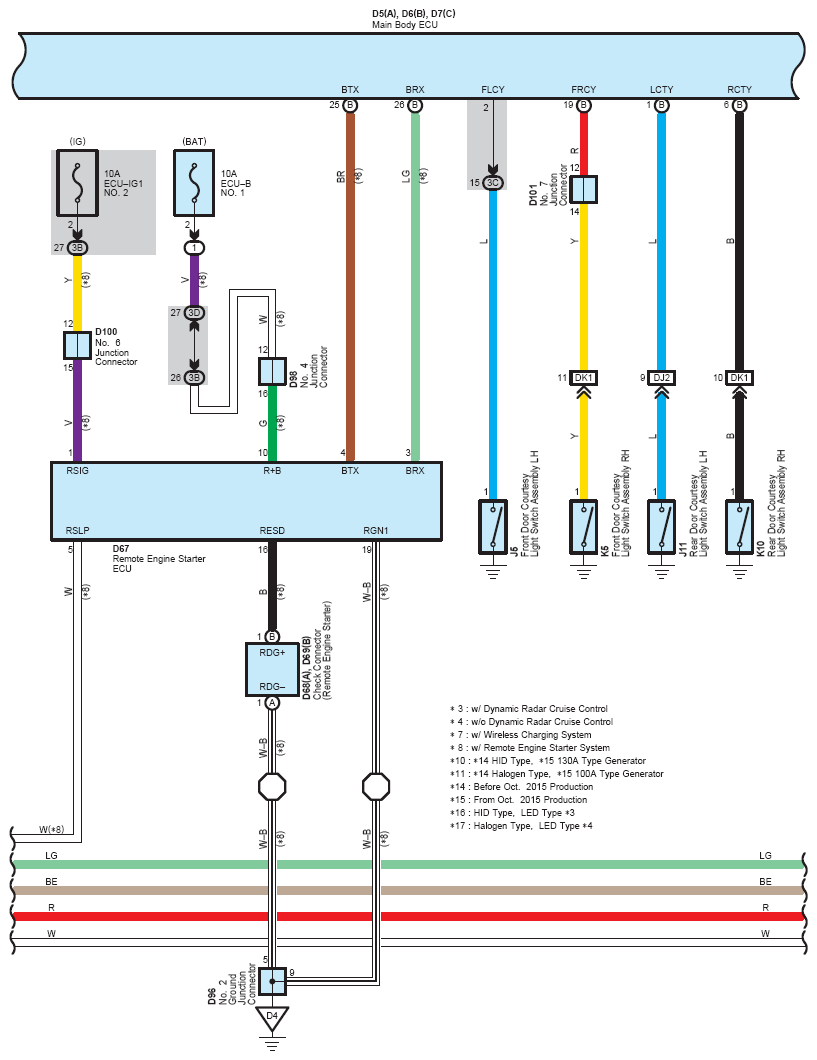

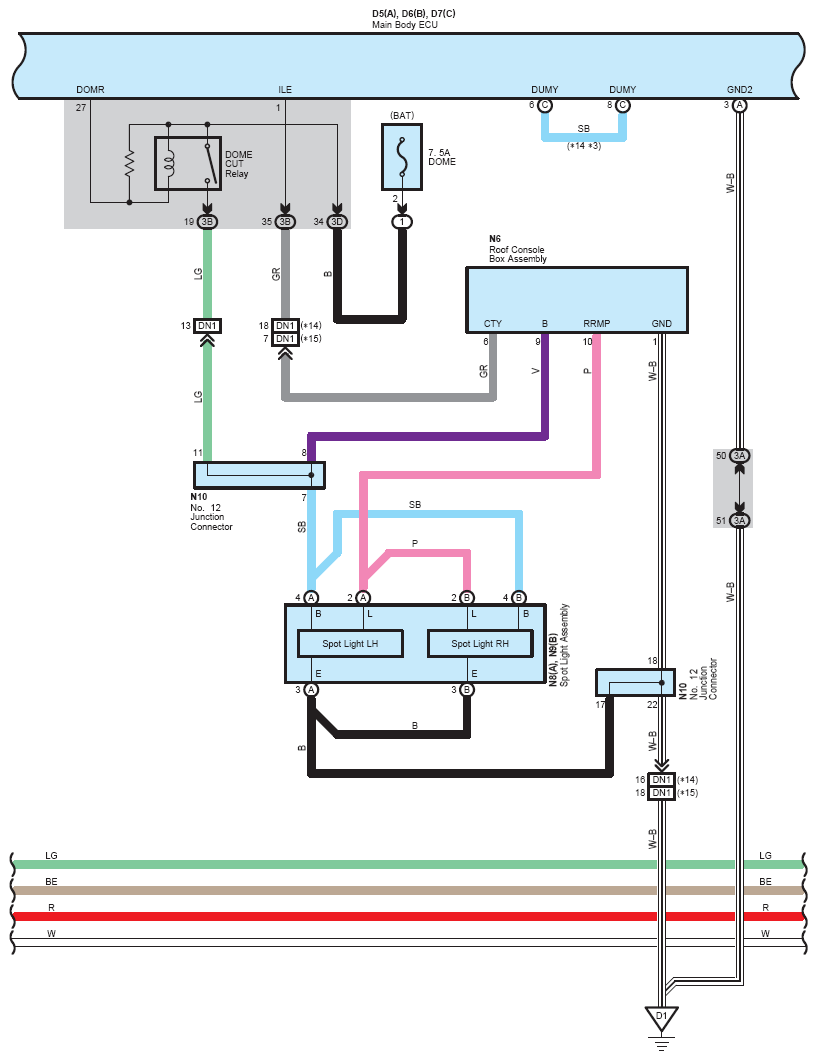

Fig 8: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (8 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

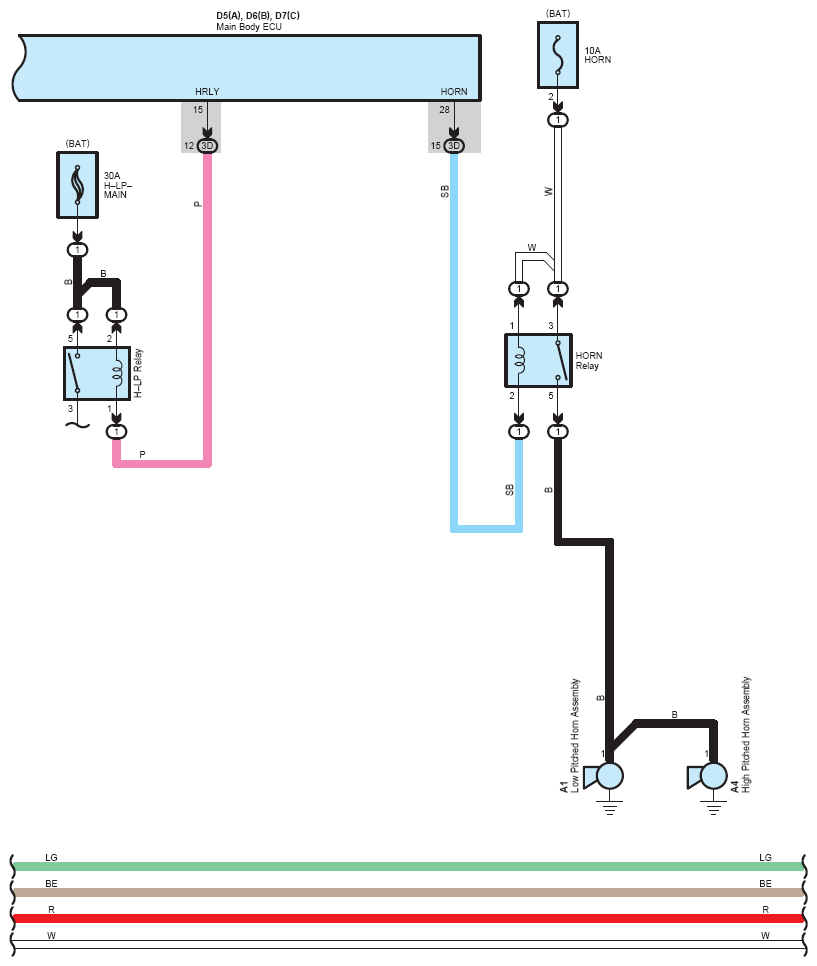

Fig 9: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (9 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

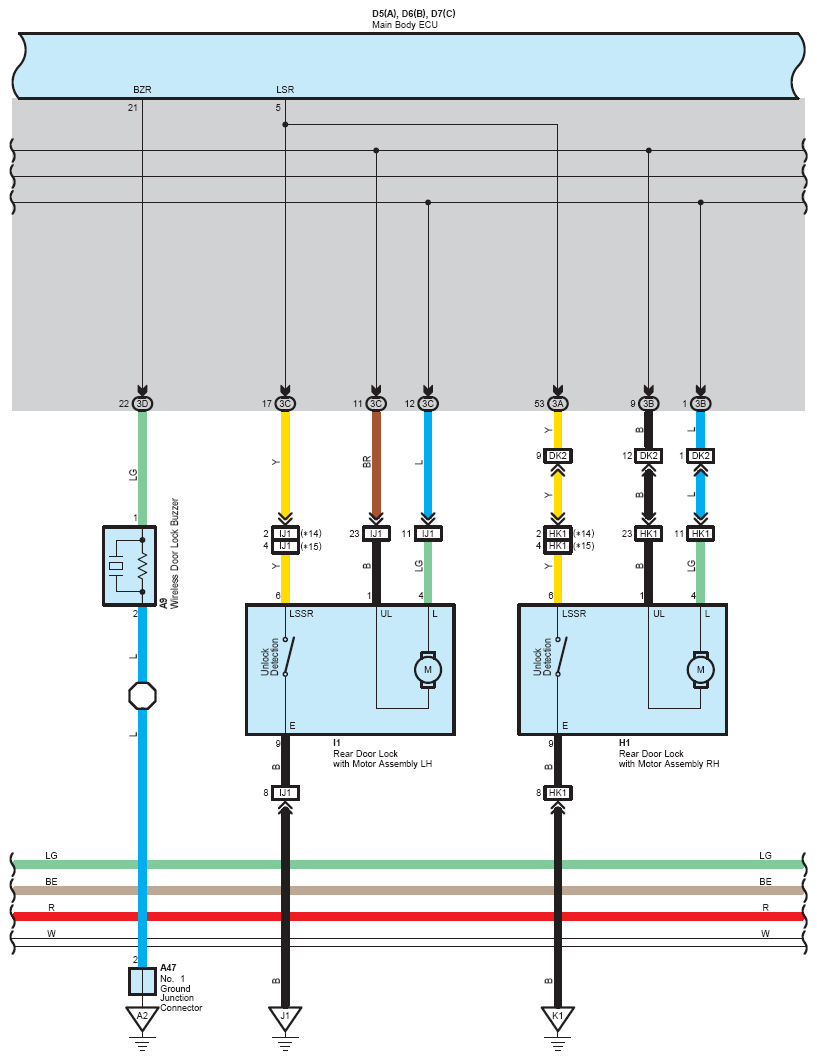

Fig 10: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (10 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

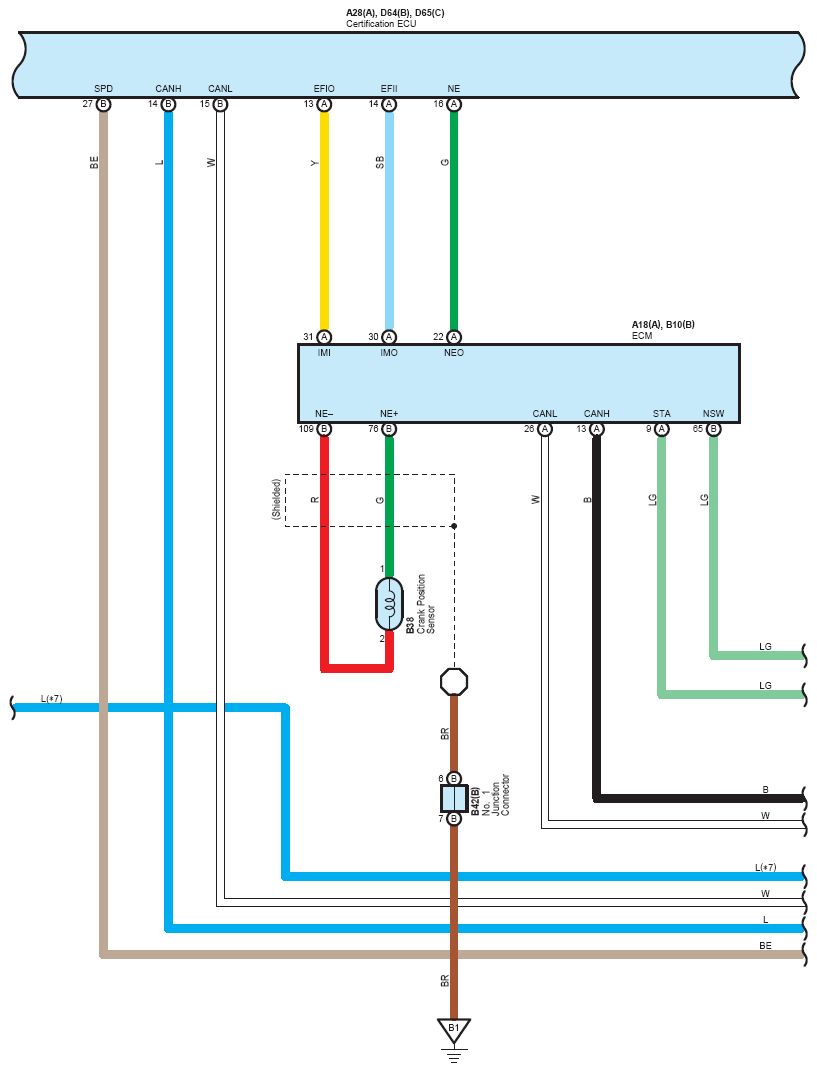

Fig 11: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (11 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

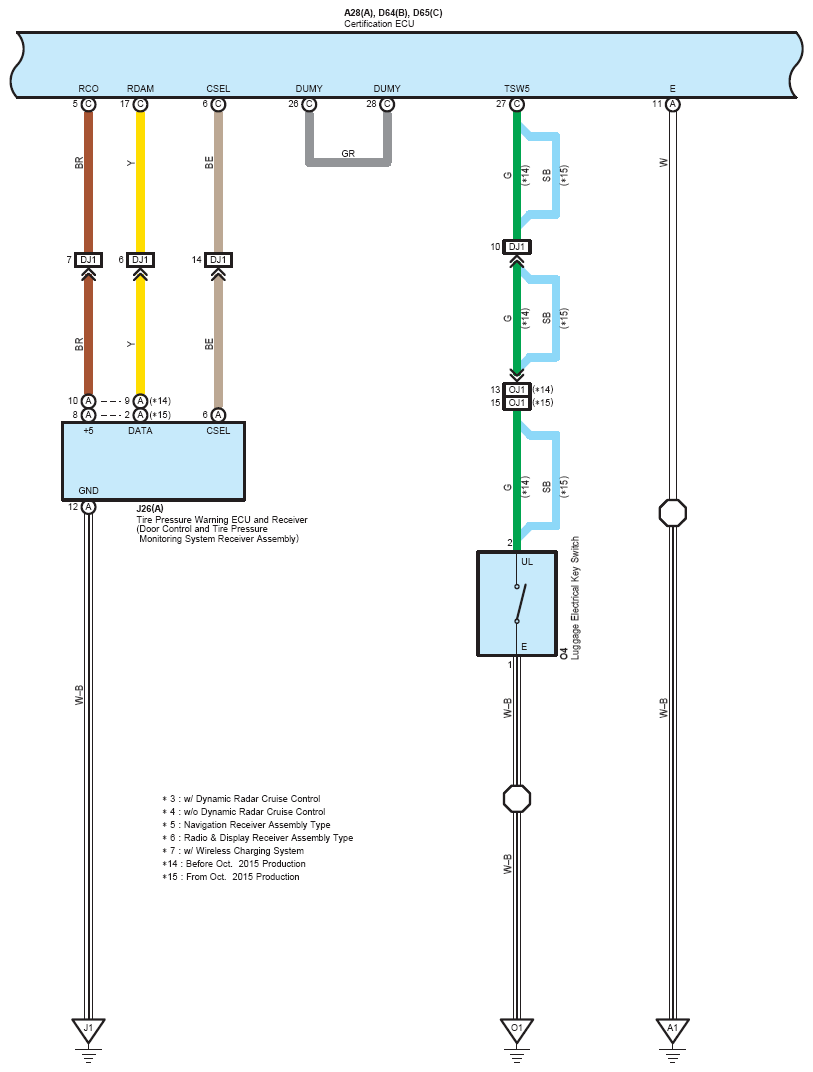

Fig 12: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (12 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

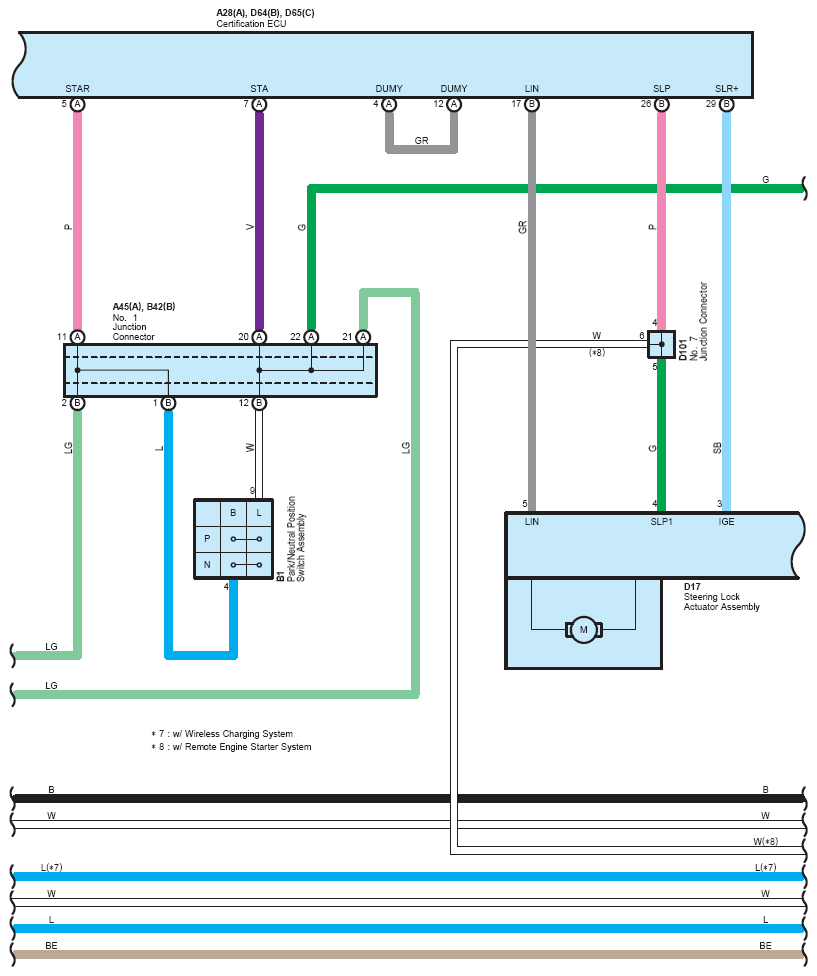

Fig 13: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (13 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

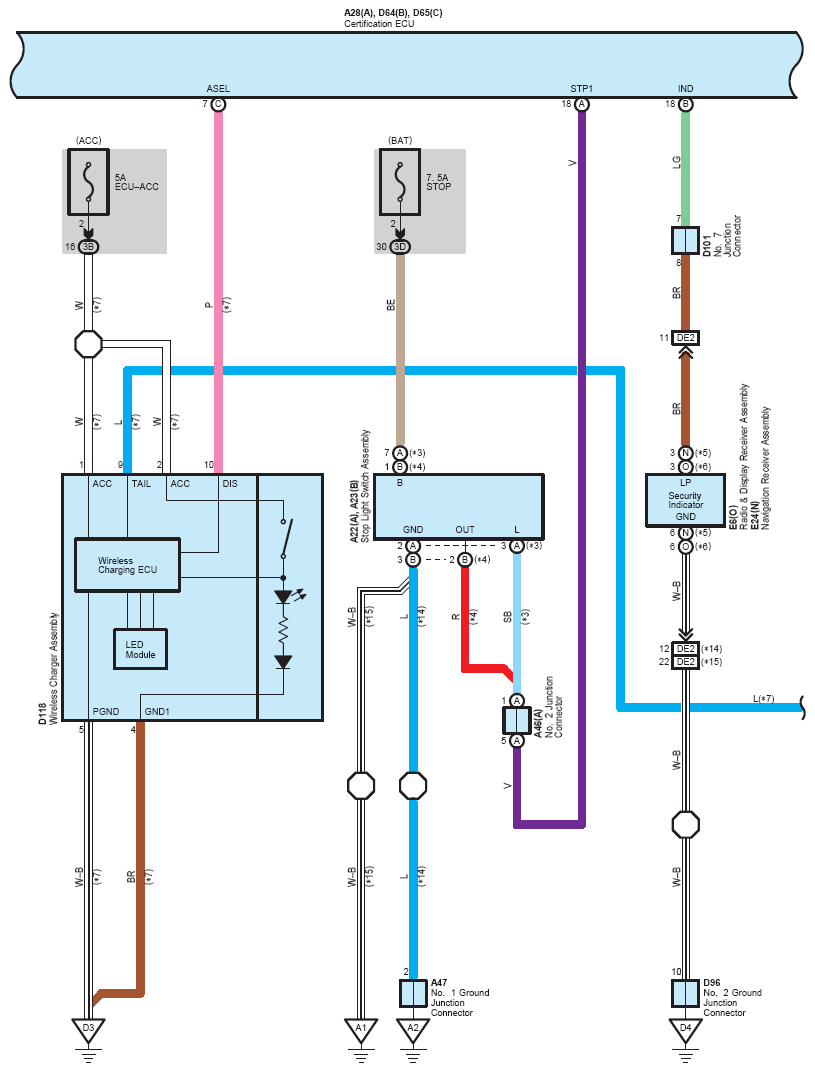

Fig 14: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (14 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

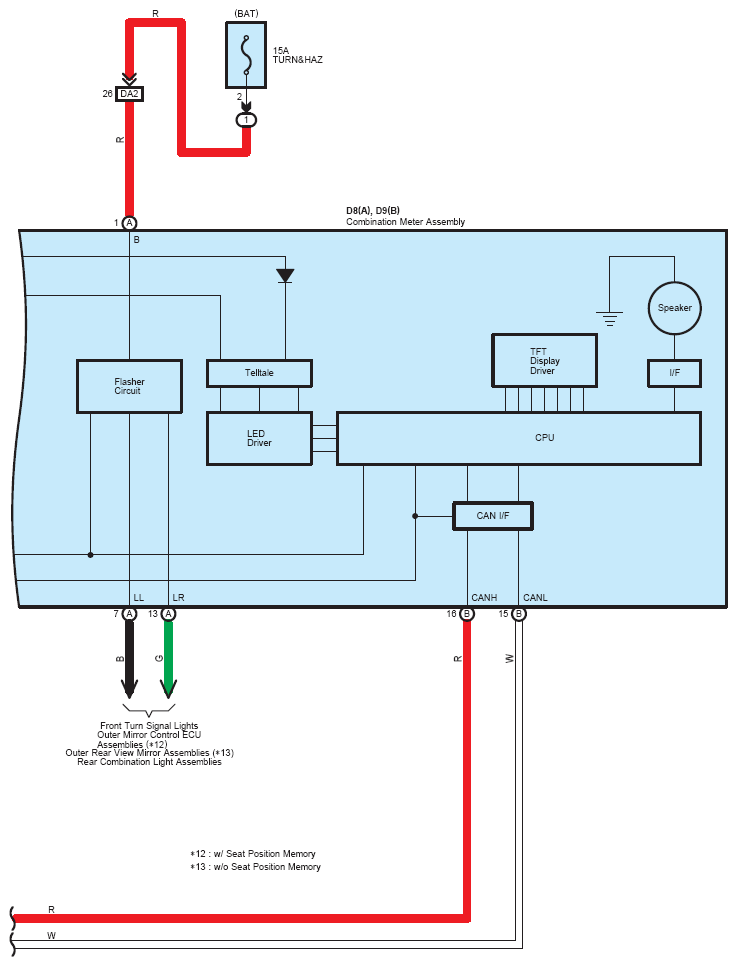

Fig 15: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (15 Of 21)

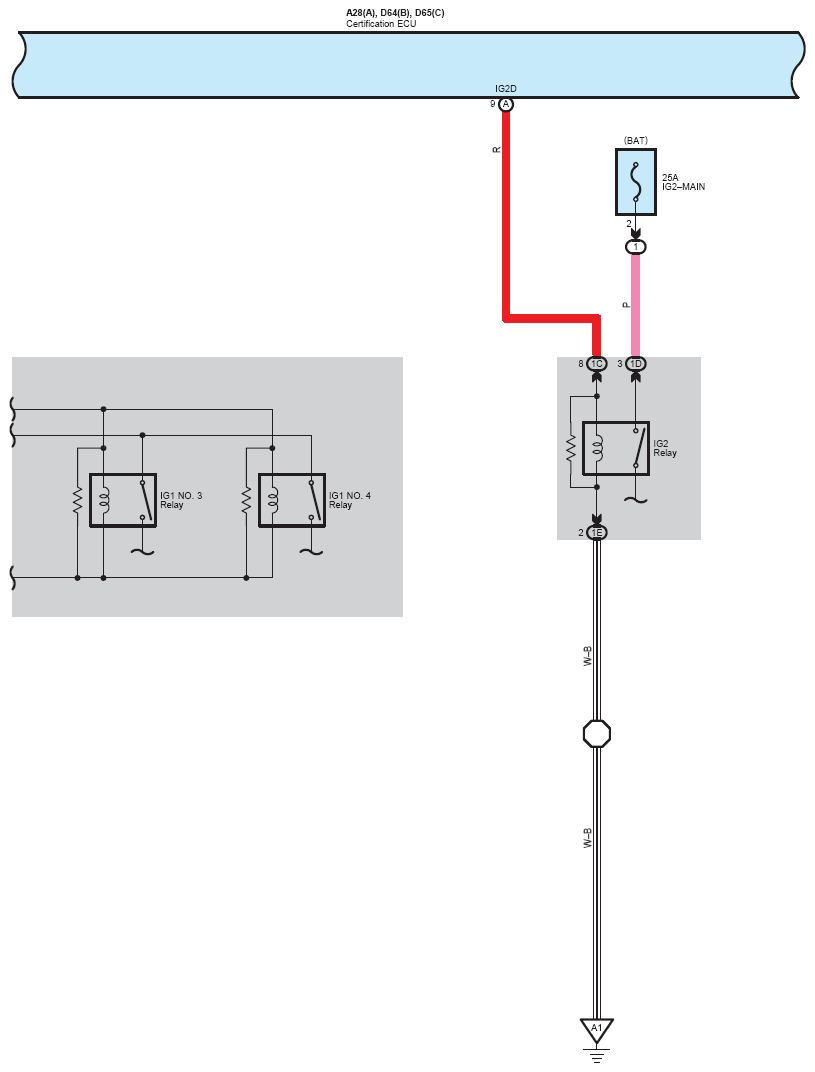

Fig 16: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (16 Of 21)

Fig 17: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (17 Of 21)

Fig 18: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (18 Of 21)

Fig 19: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (19 Of 21)

Fig 20: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (20 Of 21)

Fig 21: Immobilizer System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System, Wireless Door Lock Control (21 Of 21)
