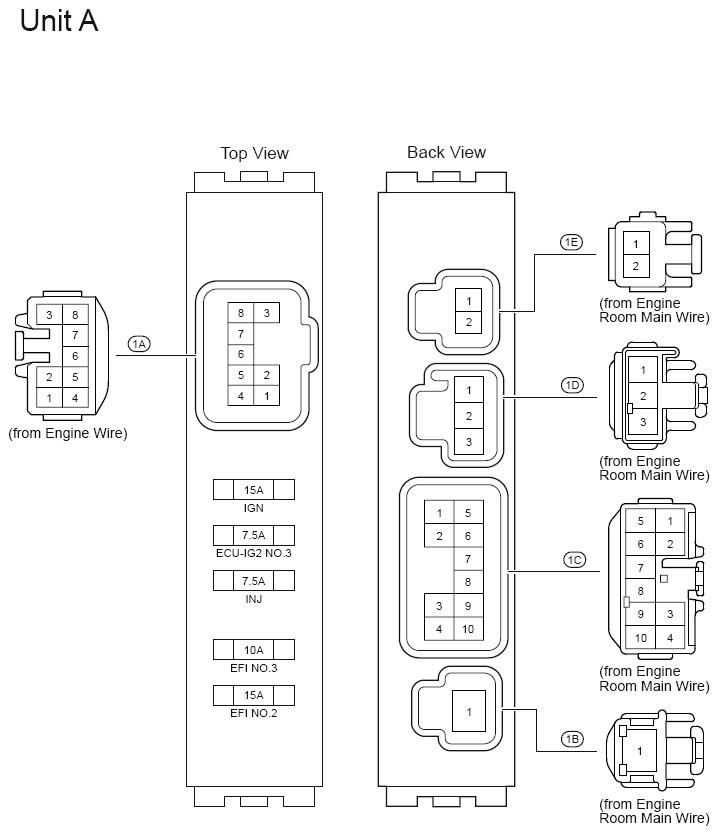

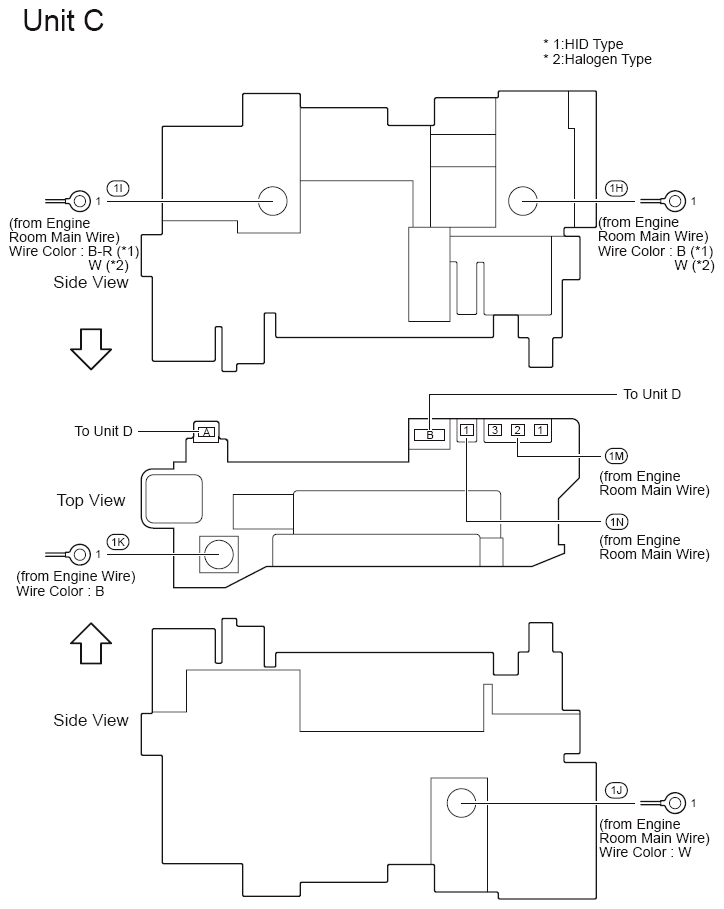

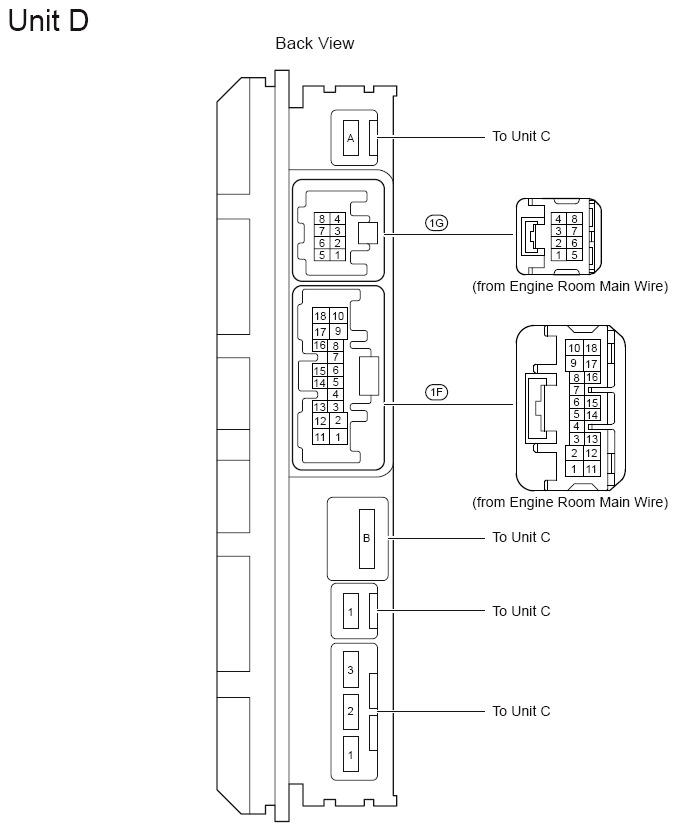

Engine Room Relay Block Assembly And Engine Room Junction Block Assembly - Front Fender Apron LH

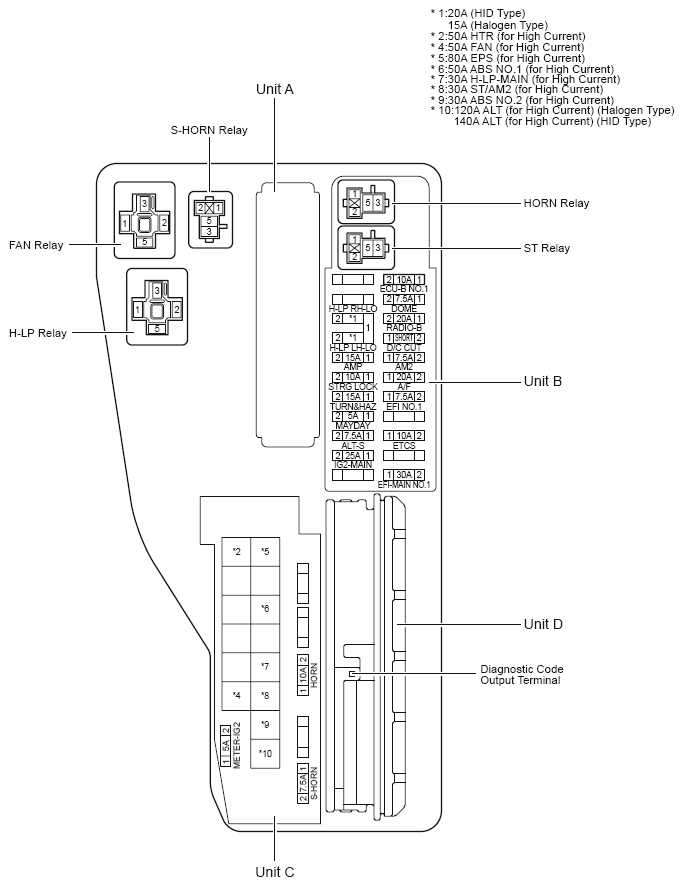

ENGINE ROOM R/B AND J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| H-LP Relay |
| Fan Relay |
| S-Horn Relay |
| Horn Relay |
| ST Relay |
Engine Room R/B And J/B Assembly Fuse Identification Legend
| Fuse | |
| 5A | MAYDAY |
| 5A | METER-IG2 |
| 7.5A | ALT-S |
| 7.5A | AM2 |
| 7.5A | DOME |
| 7.5A | ECU-IG2 NO. 3 |
| 7.5A | EFI NO. 1 |
| 7.5A | INJ |
| 7.5A | S-HORN |
| 10A | ECU-B NO. 1 |
| 10A | EFI NO. 3 |
| 10A | EOCS |
| 10A | HORN |
| 10A | STRG LOCK |
| 15A | AMP |
| 15A | EFI NO. 2 |
| 15A | H-LP LH-LO (Halogen Type, LED Type) |
| 15A | H-LP RH-LO (Halogen Type, LED Type) |
| 15A | IGN |
| 15A | TURN & HAZ |
| 20A | A/F |
| 20A | H-LP LH-LO (HID Type) |
| 20A | H-LP RH-LO (HID Type) |
| 20A | RADIO-B |
| 25A | IG2-MAIN |
| 30A | ABS NO. 2 |
| 30A | EFI-MAIN NO. 1 |
| 30A | H-LP-MAIN |
| 30A | ST/AM2 |
| 50A | ABS NO. 1 |
| 50A | FAN |
| 50A | HTR |
| 80A | EPS |
| 120A | ALT (Before Oct. 2015 Production Halogen Type, From Oct. 2015 Production 100A Type Generator) |
| 140A | ALT (Before Oct. 2015 Production HID Type, From Oct. 2015 Production 130A Type Generator) |
